1.6 Testing the Machine Operation

TURNING POWER ON / OFF – Your machine is equipped with a power disconnect feature. The type of
disconnect used is dependent upon the machine model purchased. Below are pictures of the various each
disconnects used. It is always a good idea to unplug the machine from the 110VAC power source
whenever possible.
It is always a good idea to position the machine power cord in a location where it cannot easily be tampered
with.
STATUS INDICATORS - When installation is complete and an ample supply of coins has been loaded
in the dispenser(s), and power has been turned on, the machine is ready for operation. The Status LED
(yellow / top) on each dispenser should be flashing at a fast steady rate of approximately 5 flashes per
second. This flash rate indicates that this dispenser is ready to operate. Be sure to check the status LED
on every dispenser to ensure the machine is fully functional; the machine can remain in service even if a
dispenser is not functional. You are now ready to test the machine for proper operation. Note: A slower
flash rate (approx. 1 flash per second) indicates an error condition.

1.7 Troubleshooting An Error Condition On The Dispenser

If an error condition is present on any dispenser, the status LED will be flashing at a rate of one flash per
second and there will be a brief delay (LED will be off for approx. 3 seconds) between consecutive flashes.
This flash pattern indicates an error condition. If this occurs, count the number of flashes between the
pause. Do this several times to verify the correct Flash Code (number of consecutive flashes before the

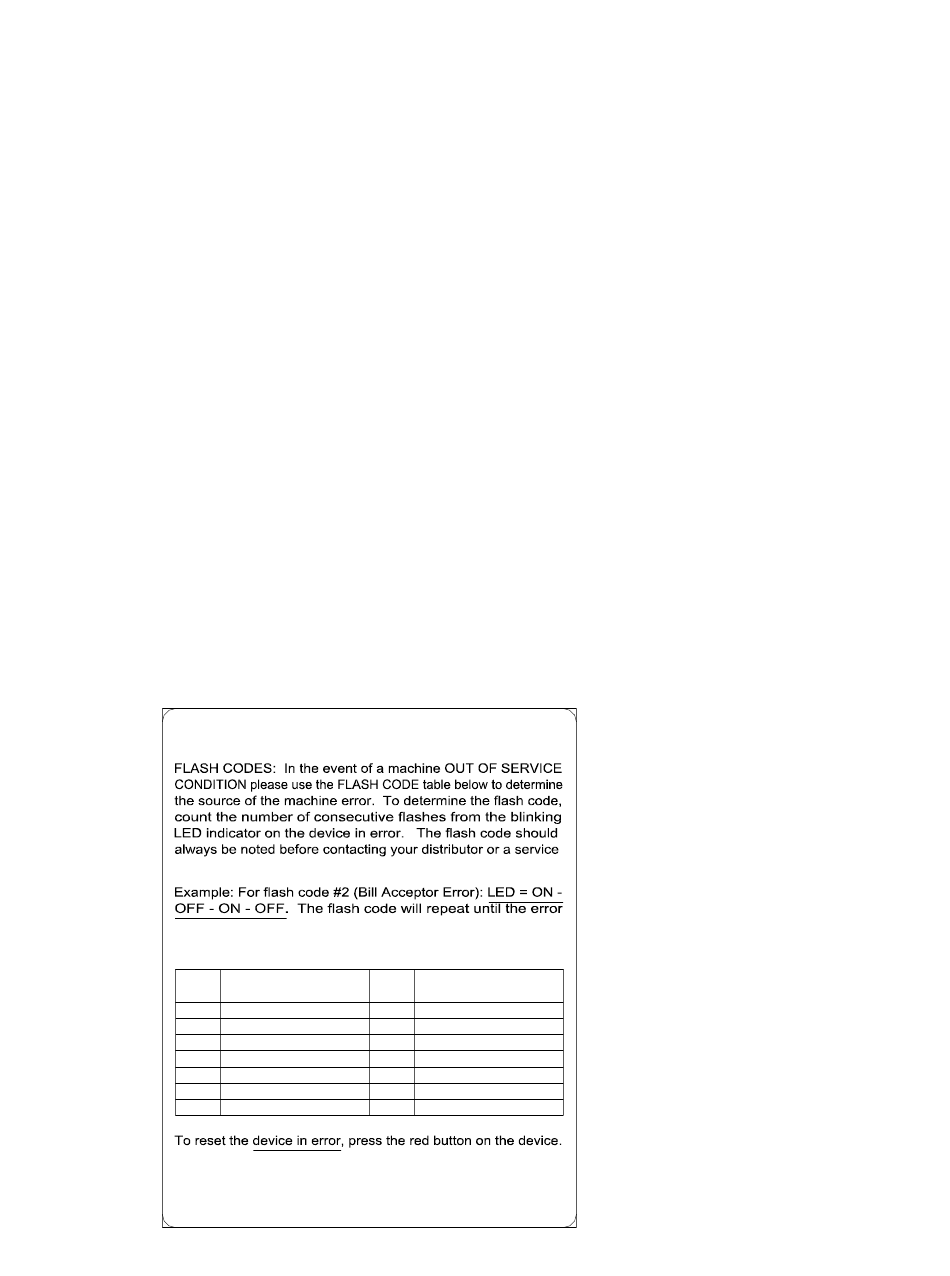

pause). Refer to the "ATTENTION MACHINE OWNER" decal shown below (also found in machine) to
determine the source of the error for this flash code. Next, refer to the troubleshooting section of this
manual and find the probable causes for the error, as identified in the Troubleshooting Chart. Once the
failure cause has been corrected, reset the dispenser using the procedure outlined below. The status LED
flash rate should now return to the fast (5 flashes per second) steady rate.
center.
condition is cleared.
FLASH CODE TABLE:
FLASH
CODE
ATTENTION MACHINE OWNER
FLASH
PROBLEM
CODE
Dispenser Sold-Out
1
Bill Acceptor Error
2
Stacker Missing or Full
3
4 Bill Jammed Error
Fast Vend Shut-Off
5
Stringing Detected
6
Coin Acceptor Error
7
PROBLEM
Dispenser Error
8
Fatal Memory Error
9
10 Power Fault Detected
11 Unknown Error
Illogical Programming
12
13 Data Bad Error
14 Overpay Logic Error
6D00327
