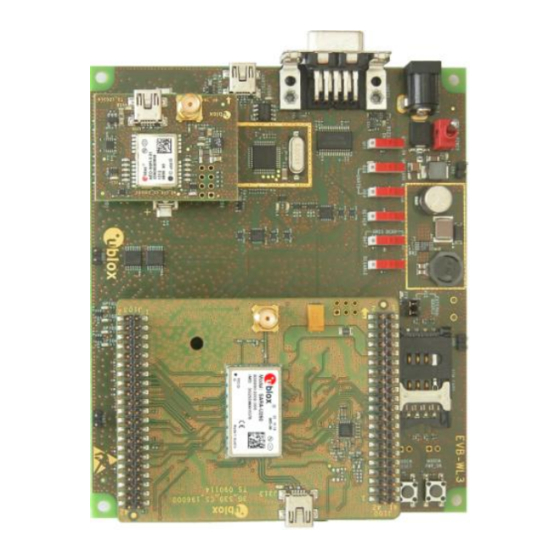

Quick Start EVK-U2x

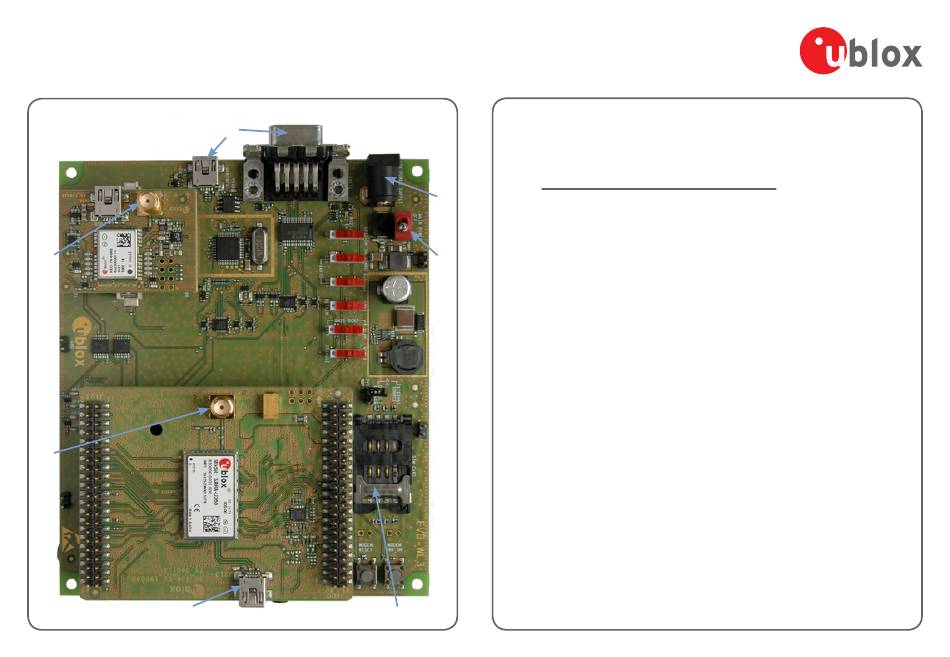

1. Overview
3
2
7
UBX-14002546 - R03
6
1
2. Setup
Download the EVK-U2X software (and documentation)
from www.u-blox.com/evk-downloads and install the
4
software. See installation notes on back of card.
1. Insert SIM card in SIM card holder.
2. Connect the cellular antenna with SMA connectors
5
to the antenna connector (SMA female).
3. Connect the GNSS antenna to the GNSS antenna
SMA connector, if GNSS functionality is required.
4. Connect power adapter to 9 – 18 V power input
connector (J400) (+12 V). LED DL401 is blue.
5. To supply power to the board, turn main power
(SW400) switch to ON position. LED DL400 is green.
The module switches on.
Connection for communication via UART:
6. Connect USB cable to mini USB connector OR
Connect RS232 cable to cellular RS232 connector
Connection for communication via USB:
7. Connect USB cable to mini USB connector on the
adapter board (cellular native USB).
Copyright © 2014, u-blox AG
