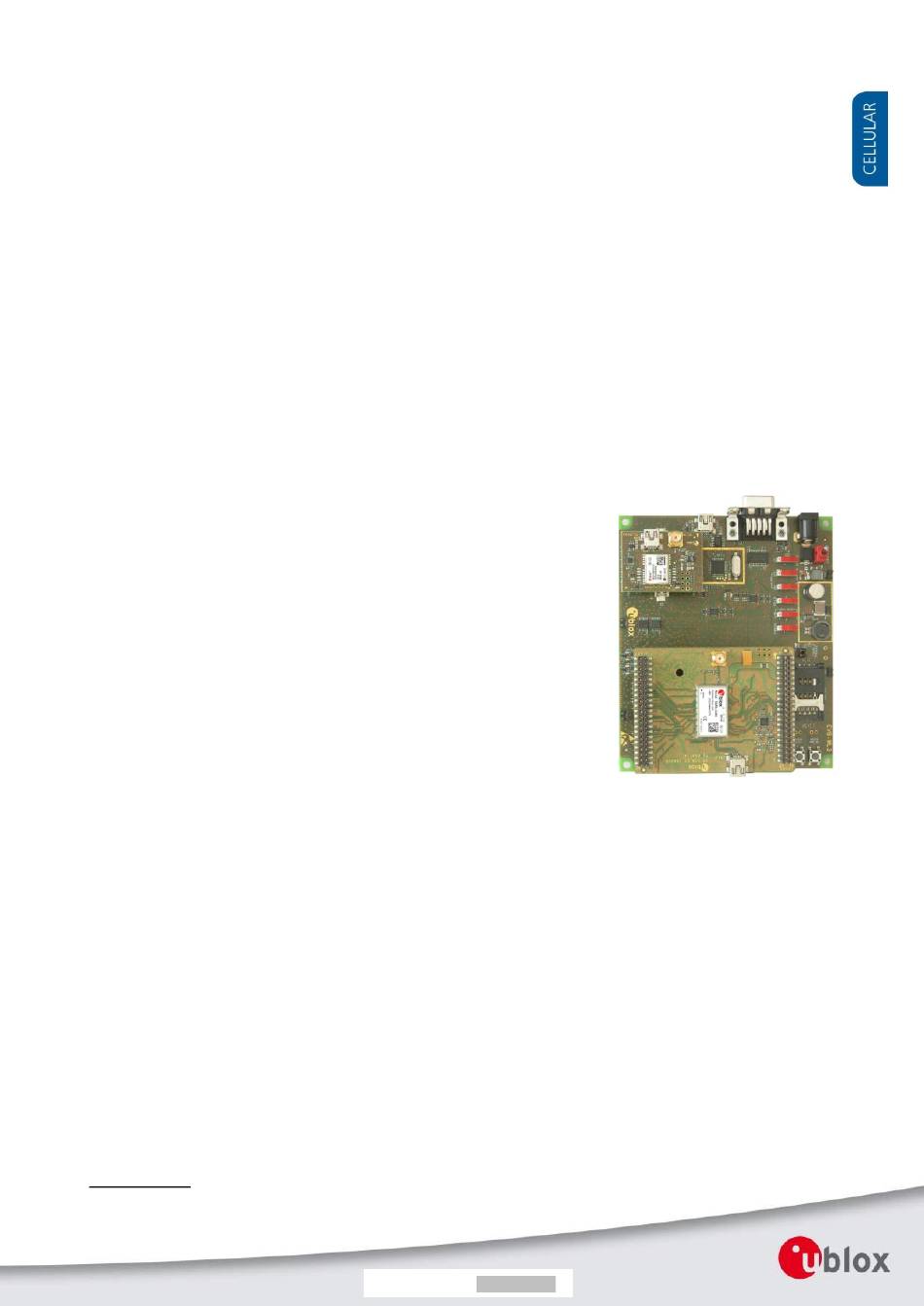

- Page 1 SARA-U2 series EVK Cellular evaluation kit User Guide Abstract This guide explains how to set up the EVK-U201SARA, EVK-U26 and EVK-U27 Evaluation Kits to begin evaluating the u-blox SARA-U2 series HSPA/UMTS/EGPRS/GSM cellular modules. www.u-blox.com UBX-14001743 - R05 Downloaded From Oneyac.com...
- Page 2 SARA-U2 series EVK - User Guide Document Information Title SARA-U2 series EVK Subtitle Cellular evaluation kit Document type User Guide Document number UBX-14001743 Revision and date 31-Oct-2017 Disclosure restriction Product Status Corresponding content status Functional Sample Draft For functional testing. Revised and supplementary data will be published later.
-
Page 3: Table Of Contents
SARA-U2 series EVK - User Guide Contents Contents ..........................3 Starting up ........................4 EVK-U2x overview ..........................4 EVK-U2x block diagram ........................5 Switches, jumpers and buttons ......................5 Connectors ............................6 LEDs ..............................6 EVK-U2x pin-out ..........................7 Software installation ..........................7 Board setup ............................ -
Page 4: Starting Up
EVK-U2x can also be used to evaluate other SARA-U2 series modules as SARA-U280. See the SARA-U2 series Data Sheet [2] and SARA-G3 / SARA-U2 series System Integration Manual [3] for the features supported by u-blox SARA-U2 series HSPA/UMTS/EGPRS/GSM cellular modules. -
Page 5: Evk-U2X Block Diagram

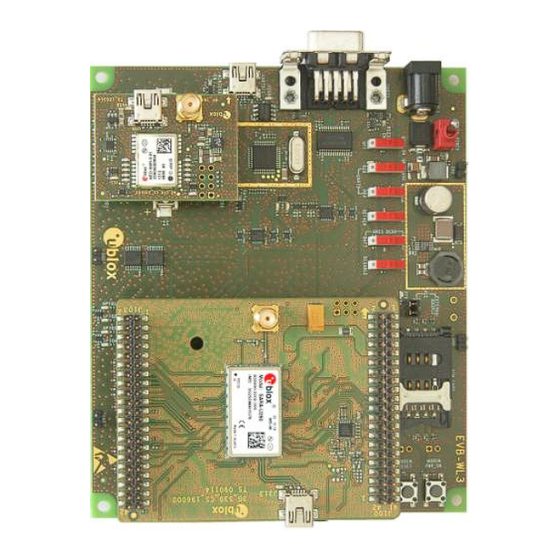

Figure 2: EVK-U2x block diagram The EVK-U2x is formed by three boards: The lower one, called EVB-WL3, contains the power supply and other peripherals for the SARA-U2 series cellular module (SIM card holder, Reset button and Power-on button). ... -
Page 6: Connectors
SARA-U2 series EVK - User Guide 1.4 Connectors Function Description Name Board 9 - 18 V Power Input Connector for the AC / DC power adapter of the EVK IEC 60417-5172 J400 AC: 100-240 V, 0.8 A, 50-60 Hz / DC: +12 V, 2.5 A... -
Page 7: Evk-U2X Pin-Out
SARA-U2 series EVK - User Guide 1.6 EVK-U2x pin-out DIL B2B connector SARA-U2 SARA-U2 SARA-U2 SARA-U2 DIL B2B connector Name / Pin Number Signal Name Pin N° Pin N° Signal Name Name / Pin Number J103 Pins 7-8-9-10 J103 Pins 7-8-9-10... -
Page 8: Board Setup
SARA-U2 series EVK - User Guide 1.8 Board setup 1. Insert a SIM card into the SIM card holder (J300). 2. Connect the cellular antenna provided with the evaluation kit box to the Cellular antenna SMA connector (J101 on ADP-U2xx, RF input/output for transmission and reception of 3G/2G RF signals). -
Page 9: Enabling Verbose Error Result Codes
SARA-U2 series EVK - User Guide When using USB drivers for Windows, if a dial-up connection is created and then started on the “Modems Type” interface (USB1), the following commands are issued to the module through USB1 during the dial- up initialization phase: AT&F&D2&C1S0=0<cr>... -
Page 10: Audio Codec Configuration And Enabling / Disabling
SARA-U2 series EVK - User Guide 1.12 Audio codec configuration and enabling / disabling Command sent by DTE (user) DCE response (module) Description AT+UGPIOC? +UGPIOC: Check the I2S pins (<gpio_id> = 34, 35, 36, 37) configuration: they must be configured as I2S digital audio interface (<gpio_mode> = 12) to... -
Page 11: Appendix
SARA-U2 series EVK - User Guide Appendix A Setting up AT terminal applications for communication with EVK-U2x The u-blox m-center cellular module evaluation tool is a powerful platform for evaluating, configuring and testing u-blox cellular modules. m-center includes an AT commands terminal for communication with the device and can be downloaded free-of-charge from our website (http://www.u-blox.com). -
Page 12: B Setting Up Cellular Packet Data Connection On Pc
SARA-U2 series EVK - User Guide B Setting up cellular packet data connection on PC This section describes how to set up a packet data connection with Windows 7 operating systems (for PC) and EVK-U2x, using the TCP/IP stack of the PC (external TCP/IP stack). - Page 13 SARA-U2 series EVK - User Guide 5. Set the COM-port on which the modem will be installed. 6. Select “Control panel > Phones and Modem > Modems > Standard Modem 33600 bps Modem > Properties”. 7. Select “Change Settings > Advanced”.
- Page 14 SARA-U2 series EVK - User Guide 12. Select the modem, if requested (the question appears only if more than one modem is available). 13. Enter parameters for dial-up connection: The module telephone number (*99***1#) The specific GPRS account information for the network operator ...
-
Page 15: How To Install And Configure A High Data Rate Modem Connection
SARA-U2 series EVK - User Guide How to install and configure a high data rate modem connection This example describes how to install and configure a high data rate packet data connection on a PC with the Windows 7 operating system, using the TCP/IP stack of the PC, over the native USB interface of the cellular module connected to the Windows PC by the Cellular Native USB connector (J313 on ADP). - Page 16 SARA-U2 series EVK - User Guide 4. Select u-blox Modem USB1 AT and Data #X (X=7 in the picture). 5. Enter the modem telephone number (*99***1#), select Allow other people to use this connection and click Connect to finalize the procedure.
-
Page 17: C Examples Of At Commands
SARA-U2 series EVK - User Guide C Examples of AT commands For the complete description and syntax of supported AT commands, see the u-blox AT commands Manual [1]. Voice call Incoming voice call: Command sent by DTE (user) DCE response (module) -
Page 18: Sms Management
SARA-U2 series EVK - User Guide SMS management Command sent by DTE (user) DCE response (module) Description AT+CMGF=1 Set the text mode as the format that will be used. To be set before of the first operation. AT+CMGS="+3930012345678" > Send the 1... -
Page 19: Enable Communication Between Cellular And Gnss Modules
SARA-U2 series EVK - User Guide Enable communication between cellular and GNSS modules Command sent by DTE (user) DCE response (module) Description AT+UGPS=1,0 Enable communication. On the ADP-GNSS: LED DS118 lights green, LED DS132 blinks. Read NMEA messages (example: GLL) Several NMEA messages via cellular USB or UART can be read. -
Page 20: Declaration Of Conformities
AT Commands Manual, Docu No UBX-13002752 u-blox SARA-U2 series Data Sheet, Docu No UBX-13005287 u-blox SARA-G3 / SARA-U2 series System Integration Manual, Docu No UBX-13000995 u-blox m-center User Guide, Docu No UBX-13001925 u-blox EVK-U2x Quick Start, Docu No UBX-14002546 For regular updates to u-blox documentation and to receive product change notifications, register on our homepage. -
Page 21: Contact
SARA-U2 series EVK - User Guide Contact For complete contact information visit us at http://www.u-blox.com/ u-blox Offices North, Central and South America Headquarters Asia, Australia, Pacific Europe, Middle East, Africa u-blox America, Inc. u-blox Singapore Pte. Ltd. u-blox AG Phone:... - Page 22 单击下面可查看定价，库存，交付和生命周期等信息 >>U-BLOX(优北罗) Downloaded From Oneyac.com...
