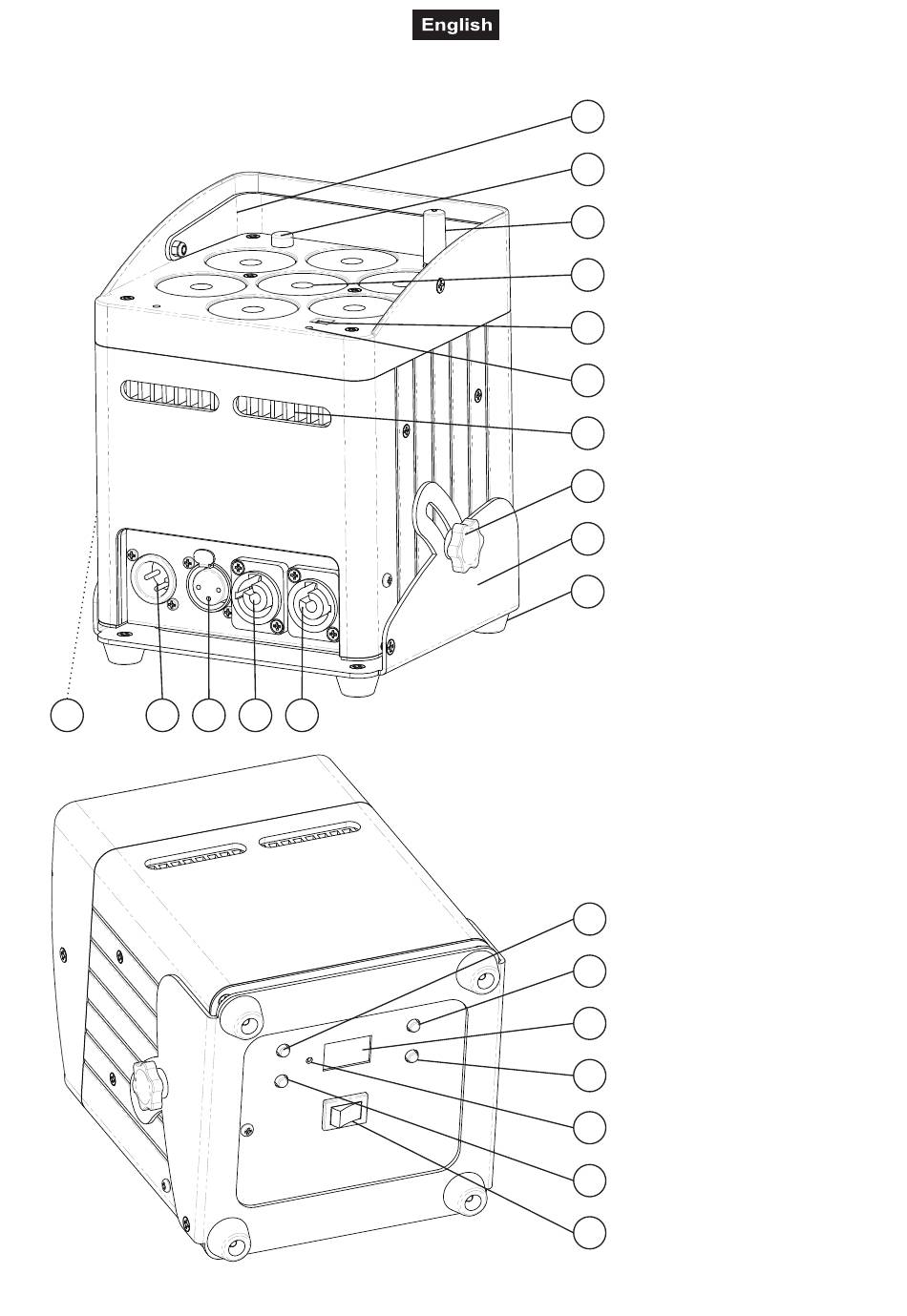

DESCRIPTION OF THE DEVICE

11 12 13 14 15
1
2
3
4
5
6
7
8
9
10
16
17
18
19
20
21
22
26/40
(1) Carrying handle
(2) Frost filter fixation
(3) QuickDMX antenna
(4) Lens/LED
(5) Infrared sensor for the
remote control
(6) Thread for fixing the frost
filter via knurled screws
(7) Ventilation slots
(8) Folding foot fixation screw
(9) Folding foot
(10) Rubber foot
(11) Kensington security slot
(12) 3-pin DMX input
(13) 3-pin DMX output
(14) Power input
(15) Power output
(16) Menu button
(17) Up button
(18) Display
(19) Down button
(20) QuickDMX status indicator
(21) Enter button
(22) ON/OFF switch
