3 Mechanical design

3 Mechanical design
For Smart Metering or C&I applications the communication module will fit under the terminal
cover of the MCS301 meter.

3.1 Module concept

The interface between meter and communication module provides the following feature set:
Exchangeable communication modules
Plug ´n´ Play Installation: The module is connected and powered from the meter.
No extra cables or actions are needed to complete the physical installation of the
module.
SPI interface between meter and communication module for local customized
applications.
Transparent communication, using the DLMS/COSEM protocol of the meter for
Local or Remote FW Meter or Module upgrade
COM200 module - Product Manual 1.0
Node sayaç Çözümleri Ltd. Şti.
Metering Solutions

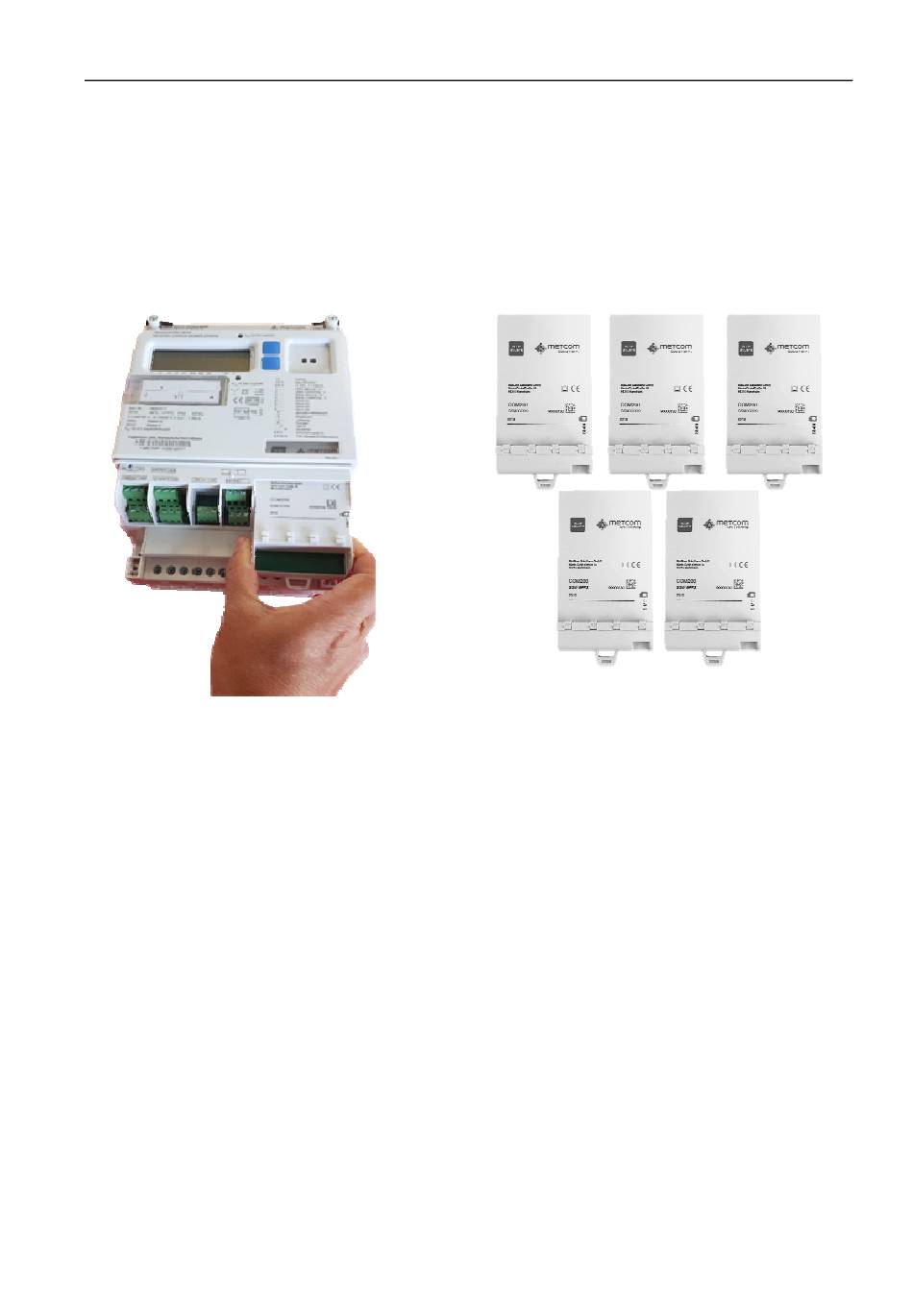

Figure 2: MCS301 with communication modules
Page 9 of 25
