IMPORTANT INFORMATION
WARNING
Vitreous China can break or chip if the bolts and nuts are over-tightened, or if the product is handled
Observe all local plumbing and building codes.
Carefully inspect the new lavatory & pedestal for any damage.
Consumer should preserve this document to order spare parts in future.
TOOLS & MATERIALS REQUIRED
A. Spirit Level
B. 10" Adjustable Wrench
C. Hammer Drill with 14mm Drill Bit
ORDERING INFORMATION
Brive+ Wall-Mount Lavatory..............K-8703IN-1WH*
* Available in "-0 (White)" & "-96 (Biscuit)"
ROUGHING-IN
2
For Wall-Mount Lavatory Installation
18-1/4"
(46.4 cm)
1-3/4"
(4.3 cm)
9-1/4"
16"
(23.5 cm)
(40.5 cm)
1/2" Hot
All dimensions in inches (cm). Fixture dimensions are nominal and conform to tolerances as per ASME Standard A112. 19.2M.
Ÿ
Product illustrations shown are representative only; actual products may vary.
Ÿ
Kohler reserves the right to make changes in product characteristics, packaging or availability at any time without notice.
Ÿ
CAUTION : Do not use lime/cement to install the lavatory. The expansion of lime/cement due to rise in temperature may
cause the lavatory to crack or be damaged. Kohler is not responsible for any damage caused by installation with the use
of lime/cement.
1213118-IN01-C
:
Risk of personal injury or product damage .
Figure 1
(K-8703IN-1WH*)
19-7/16"
(49.4 cm)
21-1/4"
(54 cm)
8-5/8"
(22 cm)
Anchor Holes
1/2" Cold
4" (10.2 cm)
1-1/4" (3.2 cm)
Waste Outlet
1
Brive+ Pedestal Lavatory............................K-8700IN-1*
Includes Wall-Mount Lavatory.................K-8703IN-1WH*
Includes Pedestal...................................K-8705IN*
2-3/4" (7 cm)
8" (20.3 cm)
18-1/4"
(46.4 cm)
(4.3 cm)
9-1/4"
16"
(23.5 cm)
(40.5 cm)
34"
(86.4 cm)
-1-

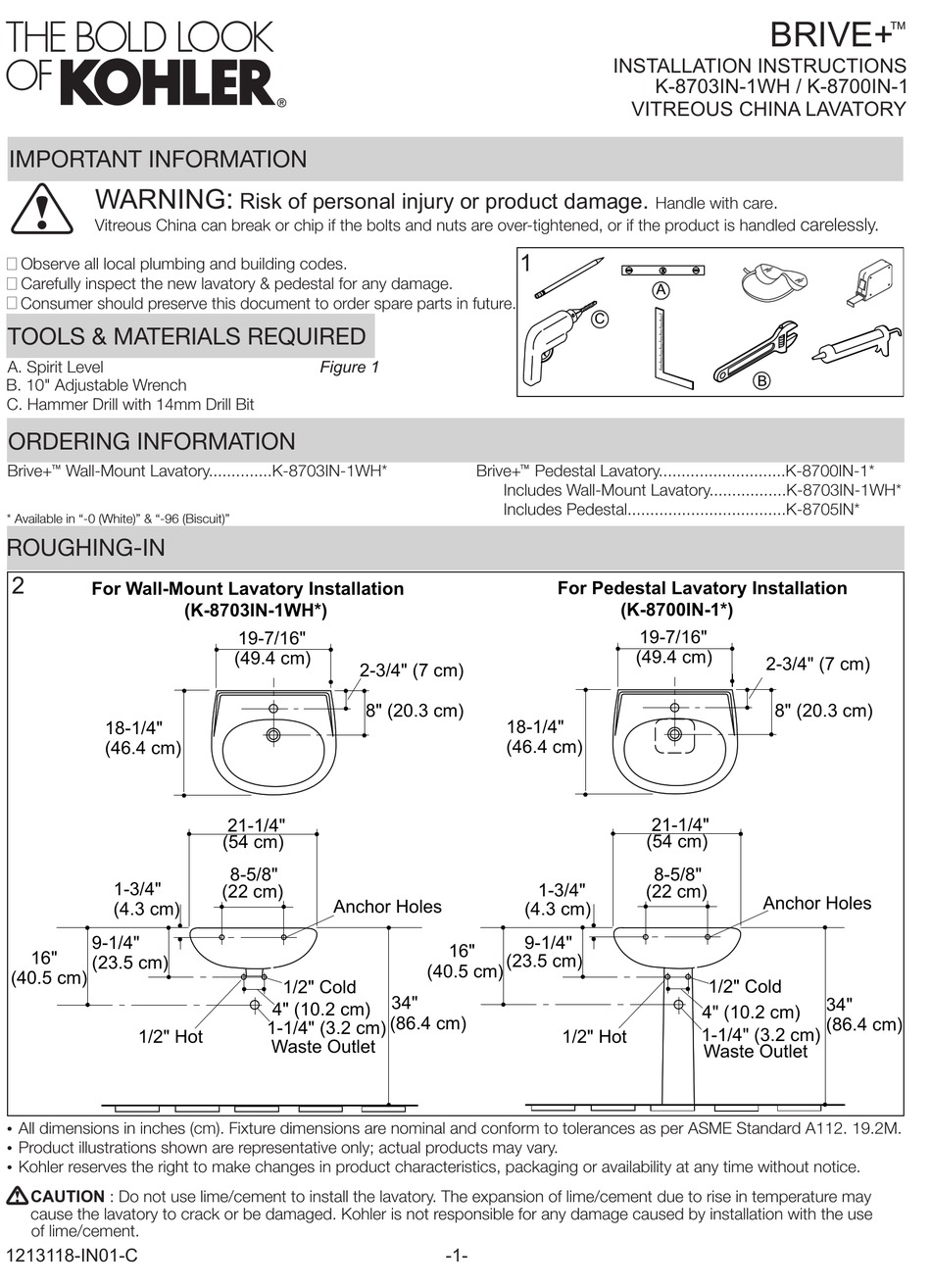

INSTALLATION INSTRUCTIONS
K-8703IN-1WH / K-8700IN-1
VITREOUS CHINA LAVATORY
Handle with care
A
C
For Pedestal Lavatory Installation
(K-8700IN-1*)
19-7/16"
(49.4 cm)
21-1/4"
(54 cm)
8-5/8"
1-3/4"
(22 cm)
1/2" Cold
4" (10.2 cm)
1-1/4" (3.2 cm)
1/2" Hot
Waste Outlet
BRIVE+
.
carelessly.
B
2-3/4" (7 cm)
8" (20.3 cm)
Anchor Holes
34"
(86.4 cm)
Advertisement
Related Manuals for Kohler BRIVE+ K-8703IN-1WH
Summary of Contents for Kohler BRIVE+ K-8703IN-1WH
- Page 1 CAUTION : Do not use lime/cement to install the lavatory. The expansion of lime/cement due to rise in temperature may cause the lavatory to crack or be damaged. Kohler is not responsible for any damage caused by installation with the use of lime/cement.
- Page 2 INSTALLATION GUIDELINE 1. Prepare the Site :- • Rough-in the supplies & the drain piping. For dimensions, Refer Fig.#2. • Install 1/2" water supply lines & 1-1/4" drain piping according to the roughing-in information. • Install sufficient backing behind the finished wall to provide a secure material for the anchoring devices. NOTE :- The Angle-Valve handles cannot extend more than 76mm (3") from the finished wall when in open position.
