Technical Procedure
AC Power:
•
#2 Phillips Screwdriver
•
Multimeter
•
2.5mm Allen Key
AC + SC Power Battery Charging and Voltage Requirements
Before beginning to troubleshoot the AC or the SC Power bike for issues related to power, it is
important to understand the voltage requirements and how the Echelon2G system operates on an
internal 3.7V rechargeable battery.
The Echelon2G requires a minimum of 3V to power on and function. If the bike is not being pedaled
(or being pedaled below ~35 RPMS) and the console is manually powered on with the "ON/OFF"
button, the battery will begin to drain in orderto power the console.
Please note that this MAY cause damage to the battery over time if it is not charged by riding
the bike.
If the bike is being pedaled above 35 RPMs, the generator will provide enough power to the Eche-
lon2G that the battery will not be used.
As mentioned above, prolonged use of the console without charging the battery will drain it. If the
battery voltage drops below 2.7V the battery may no longer charge and will need to be replaced.
If the battery needs to be replaced:
580-0314 "BATTERY, 2600MAH, 3.7V, LI-ION, PROTECTED."

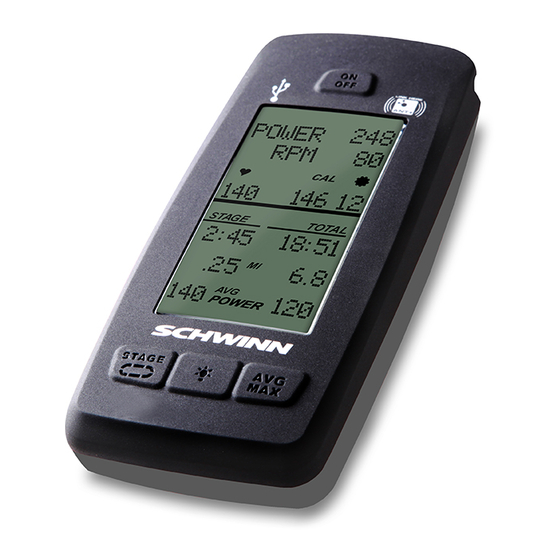

Echelon2G No Power Troubleshooting
Applies to: AC Power (9-7300), SC Power (9-7310)
Latest Rev.
Page 1
637-8525 Rev. C
Advertisement
Table of Contents
Related Manuals for Schwinn Echelon2G
Summary of Contents for Schwinn Echelon2G
- Page 1 Echelon2G system operates on an internal 3.7V rechargeable battery. The Echelon2G requires a minimum of 3V to power on and function. If the bike is not being pedaled (or being pedaled below ~35 RPMS) and the console is manually powered on with the “ON/OFF”...
- Page 2 Technical Procedure Use the wiring diagram located on Page 2 to troubleshoot per the directions below. Ride the bike for one minute at 30+ RPMs then push the “ON/OFF” button. Ensure that the console cable is securely con- nected to the console. Check for power where the console cable plugs into the console (Yellow + Black or Pins 2+3).
- Page 3 Technical Procedure Page 3 637-8525 Rev. C...
- Page 4 Technical Procedure SC Power: Required Tools: • #2 Phillips Screwdriver • 2.5mm Allen Key • Multimeter Use the wiring diagram located on Page 4 to troubleshoot per the directions below. 2.5mm Allen Key Ensure that the console cable is securely con- nected to the console.
- Page 5 Technical Procedure Page 5 637-8525 Rev. C...
