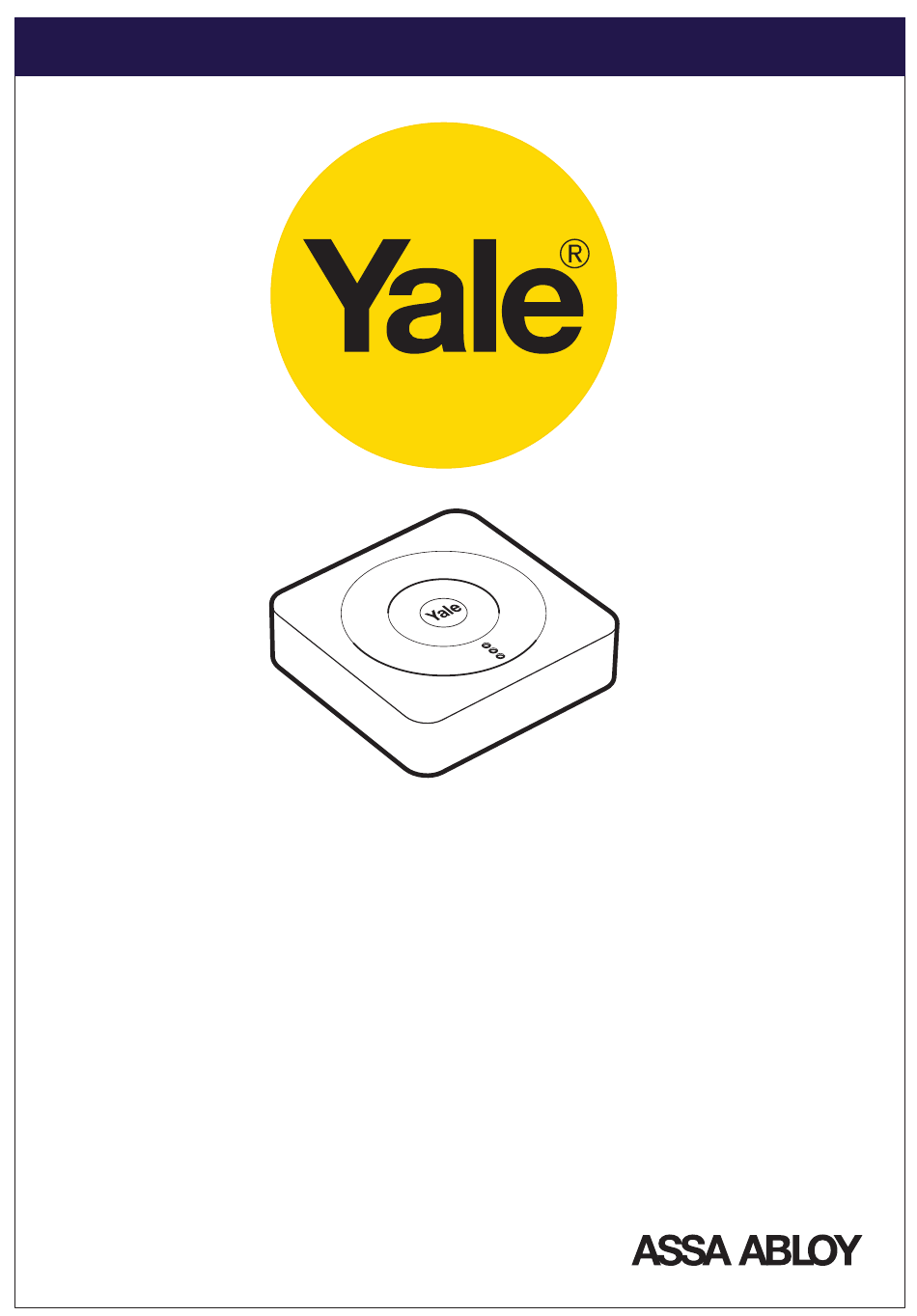

- Page 1 Smartphone Alarm GB....Manual IT....Manuale DE....Bedienungsanleitung NO...Manual SE.....Manual DK....Manual An ASSA ABLOY Group brand...
- Page 2 (02) (GB) (IT) (DE) (NO) (SE) (DK) (GB) Thank you for choosing the Yale Smart Alarm System. This simple to install system has been design with the user in mind, just follow these simple steps: (IT) Grazie per aver scelto il sistema Yale Smart Alarm. Questo sistema, semplice da installare, è...
- Page 3 (03) (GB) Step by step index - (IT) Indice configurazione guidata - (DE) Schritt für Schritt - (NO) Trinn-for-trinn-forklaring - (SE) Steg för steg innehållsförteckning - (DK) Trin for trin forklaring L e a te ry ff > B at <...
- Page 4 (04) (GB) How does it work - (IT) Come funziona - (DE) Wie es funktioniert - (NO) Hvordan virker det - (SE) Hur fungerar det - (DK) Hvordan virker det SR-HUB Radio 868 MHz Radio 2,4 GHz (*) Max. 6 pcs. SR-HUL Lite Radio 868 MHz Max.
- Page 5 (05) (GB) How does it work - (IT) Come funziona - (DE) Wie es funktioniert - (NO) Hvordan virker det - (SE) Hur fungerar det - (DK) Hvordan virker det SR-KF Radio 868MHz SR-PB >3sec.< Radio 868MHz SR-EIR 2.3m ~12m Radio 868MHz (GB) Tamper alarm - (IT) Allarme effrazione - (DE) Sabotagealarm - (NO) Sabotasjesalarm - (SE) Manipulationslarmet - (DK) Destruktions-alarm...
- Page 6 (06) (GB) How does it work - (IT) Come funziona - (DE) Wie es funktioniert - (NO) Hvordan virker det - (SE) Hur fungerar det - (DK) Hvordan virker det SR-PC 110° ~12m Radio 2,4GHz SR-PVC 110° ~12m Radio 2,4GHz SR-RS Radio 2,4GHz SR-PS...
- Page 7 (07) (GB) Plan your system - (IT) Prepara un piano di montaggio del tuo sistema - (DE) Planen Sie Ihr System - (NO) Planlegg anlegget ditt - (SE) Planlägg ditt system - (DK) Planlæg dit system. Example ter y n Off >...
- Page 8 (08) (GB) App download - (IT) Scarica l'App - (DE) App Download - (NO) Nedlasting av App - (SE) Installera appen - (DK) Installer APP. Yale Smart Living Home IOS 9.0 + Android 4.2 + Serial No.
- Page 9 (09) (GB) Setting up - (IT) Configurazione - (DE) Einstellung - (NO) Tilkobling og montering av alarmsentralen - (SE) Driftsättning - (DK) Opsætning. L e a t e r y B a t f f > < O P o w L A N Router NOT INCLUDED...
- Page 10 (10) (GB) Setting up - (IT) Configurazione - (DE) Einstellung - (NO) Tilkobling og montering av alarmsentralen - (SE) Driftsättning - (DK) Opsætning. (GB) Reset - (IT) Reset - (DE) Reset - (NO) Tilbakestill - (SE) Återställning - (DK) Nulstil . t e r y B a t f f >...
- Page 11 (11) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Remove battery strips Test your planned location of components Press button to test connection Test location for radio signal strength (1 (IT) Rimuovi la linguetta della batteria - (DE) Entfernen der Batteriefolie - (NO) Fjern plastbeskyttelsen på batteriet (SE) Ta bort batterifliken - (DK) Fjern batteri-strimmel (2 (IT) Verifica la posizione scelta per i dispositivi - (DE) Testen Sie den gelanten Standort - (NO) Test plasseringen av komponenten - (SE) Testa tilltänkta placeringen av sensorerna -...
- Page 12 (12) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Ø 3.5mm Ø 5mm...
- Page 13 (13) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Ø 3.5 mm ~1.8m 2.1m Ø 5 mm...
- Page 14 (14) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Ø 3.5mm max 10mm...
- Page 15 (15) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Pair / Test button (IT) Associazione/test - (DE) Verbinden/Testen - (NO) Tilkobling/Test - (SE) Para/Testa - (DK) Tilslut/test Pair / Test button (IT) Associazione/test - (DE) Verbinden/Testen - (NO) Tilkobling/Test - (SE) Para/Testa - (DK) Tilslut/test Ø...
- Page 16 (16) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. ~1.8m 2.1m Ø 3.5mm Ø 5mm...
- Page 17 (17) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. ~1.8m Ø 3,5mm 2.1m Ø 5mm...
- Page 18 (18) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Ø 3.5mm 2.3m Ø 5mm Ø 5mm...
- Page 19 (19) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Pair / Test button (IT) Associazione/test - (DE) Verbinden/Testen - (NO) Tilkobling/Test - (SE) Para/Testa - (DK) Tilslut/test Ø 3.5mm Ø 5mm Pair / Test button (IT) Associazione/test - (DE) Verbinden/Testen - (NO) Tilkobling/Test - (SE) Para/Testa - (DK) Tilslut/test...
- Page 20 (20) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Ø 5mm...
- Page 21 (21) (GB) Installation - (IT) Installazione - (DE) Installation - (NO) Installasjon - (SE) Installation - (DK) Installation. Ø 5mm...
- Page 22 (22) (GB) Changing batteries - (IT) Sostituzione batterie - (DE) Batteriewechsel - (NO) Batteribytte - (SE) Batteribyte - (DK) Batteriskift. CHANGE BATTERY CR 2032 SR-KP CR 2032 SR-DC 2 x 1.5v AA SR-PC 3 x 1.5v AAA SR-PIR / PETPIR...
- Page 23 (23) (GB) Changing batteries - (IT) Sostituzione batterie - (DE) Batteriewechsel - (NO) Batteribytte - (SE) Batteri byte - (DK) Batteriskift. 3 x 1.5v AA (Lithium) SR-PVC CR 2032 SR-KF 3 x 1.5v AA SR-SD CR 2032 SR-PB...
- Page 24 (24) (GB) Changing batteries - (IT) Sostituzione batterie - (DE) Batteriewechsel - (NO) Batteribytte - (SE) Batteri byte - (DK) Batteriskift. 3 x 1.5v AAA SR-RS 2 x 1.5v AA (Lithium) SR-EIR 4 x 1.5v D SR-SR 4 x 1.5v D SR-BX...
- Page 25 (25) (GB) Sensor setting - (IT) Configurazione sensore - (DE) Sensoreinstellungen - (NO) Oppsett av sensor - (SE) Sensor inställningar - (DK) Sensor indstilling. Burglar Intrusione Alarmanlage Innbrudd Inbrott Indbrud Entry Entrata Eingang Inngangssone Entré sektion Indgangszone Home Omit Escluso attivazione parziale Zuhause Modus Aktiv alarm hjemme Från vid hemlarmat...
-
Page 26: Ec Declaration Of Conformity
Name: xxxx xxxx Position: xxxxxxx Signature: Date: xx/xx/xx On behalf of ASSA ABLOY Ltd. (GB) Environment - (IT) Ambiente - (DE) Umgebung - (NO) Miljø - (SE) Miljö - (DK) Miljø. All devices Outdoor Siren / Ext. PIR Housings ABS/polycarbonate -10˚C to 40˚C... - Page 27 (27) (GB) Server Information - (IT) Informazioni Server - (DE) Server Informationen - (NO) Informasjon Yale Dataserver - (SE) Server information - (DK) Server information. GB - The SmartPhone feature requires our central server. Yale offers no guarantee on the availability of our server. Yale cannot guarantee limitless and future availability of our free server.
- Page 28 THE YALE BRAND, with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution. THE ASSA ABLOY GROUP is the world´s leading manufacturer and supplier of locking solutions, dedicated to satisfying end-user needs for security, safety and convenience.
