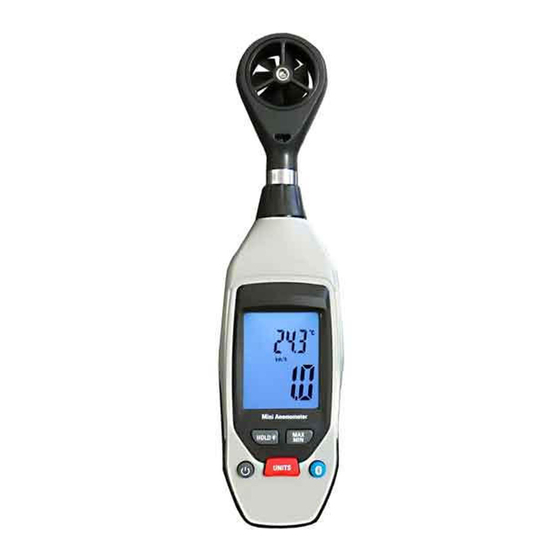

- Page 1 Bluetooth ® Anemometer 850020 Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION..........3 PANEL DESCRIPTION........4 MEASUREMENT PROCEDURES....5 BACKLIGHT..........6 HOLD FUNCTION........6 MAX/MIN FUNCTION........6 AUTO POWER OFF........7 BLUETOOTH COMMUNICATIONS.....8 BATTERY REPLACEMENT.......11 SPECIFICATIONS........12 OPTIONAL ACCESSORIES......13 WARRANTY..........16... -
Page 3: Introduction
INTRODUCTION Sper Scientific’s Bluetooth Anemometer ® Meter is small, light, and simple to use. Simultaneously displays air temperature in °C or °F, and air velocity in 5 units of mea- sure, on the meter’s large 1-½” high backlit display. Features minimum and maximum hold (peak), data hold and moving average functions. -
Page 4: Panel Description
PANEL DESCRIPTION 1. Anemometer Vane 2. LCD Display 3. HOLD/ button 4. MAX/MIN button 5. Power button 6. Range selection 7. Bluetooth button... -
Page 5: Measurement Procedures
MEASUREMENT PROCEDURES 1. Turn the meter on/off by pressing the POWER button. 2. Airspeed will appear in large digits on the lower display and temperature in smaller digits on the upper display. 3. Hold the red button down for 2 seconds to toggle between temperature readings in °C and °F. -
Page 6: Backlight
BACKLIGHT Press for 2 seconds to turn the illuminated display on/off. HOLD FUNCTION With the meter on, press the HOLD button to display “HOLD” and the last reading. Press HOLD again to exit this function. MAX/MIN FUNCTION Max/Min readings are continually updated as soon as you enter the Max/Min mode. -
Page 7: Auto Power Off
2. Press the MAX/MIN button again to display “MIN” and the minimum airflow. The dis- play will be updated only on reaching a lower airflow. 3. Press the MAX/MIN button again to view a moving average of airflow since you first entered Max/Min mode. -
Page 8: Bluetooth Communications
Bluetooth ® 3. Press “Connect Device” on the APP. 4. Now choose “850020” from the device list that now appears. The meter will immedi- ately begin displaying a real time graph of your meter’s readings. - Page 9 Viewing saved Data 6. Press < at the top of the screen to view saved data. Next, choose “Files” at the bottom of the screen, then choose the file you wish to view. A graph of the entire record will now appear. Press on the lower right to see the data including recording times, maximum, minimum and...
- Page 10 Settings Alarms: Insert your Hi and Low values and turn the alarm switch on. Recording: Choose your test sample rate and duration.
-
Page 11: Battery Replacement
BATTERY REPLACEMENT • Turn off the meter when is displayed. • Open the battery compartment and insert a fresh 9V battery. • Replace the cover. -
Page 12: Specifications
SPECIFICATIONS Airspeed Range Resolution Accuracy Airspeed m/s 1.10~25.00 m/s 0.01 m/s +/-(3%+0.30 m/s) Airspeed km/h 4.0~90.0 km/h 0.1 km/h +/-(3%+1.0 km/h) Airspeed ft/min 220~4920 ft/min 1 ft/min +/-(3%+40 ft/min) Airspeed mph 2.5~56.0 mph 0.1 mph +/-(3%+0.4 mph) Airspeed knots 2.2~48.0 knots 0.1 knots +/-(3%+0.4 knots) Display... -
Page 13: Optional Accessories
OPTIONAL ACCESSORIES 840093 Field Tripod 850020V Replacement Anemometer Vane... - Page 14 NOTES...
- Page 15 NOTES...
-
Page 16: Warranty
WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for one (1) year from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
