AVR32913: EVK1105 Getting Started Guide
Features
• Powering up the board
• Preparing the board for audio playback
• Playing music
1 Introduction
The EVK1105 is a reference design and development system for the AVR32
AT32UC3A0512 microcontroller from Atmel Corporation. The kit is equipped with a
rich set of memories and peripherals that make the EVK1105 to a perfect audio
platform. This guide shows the user how to get quickly started with this kit.

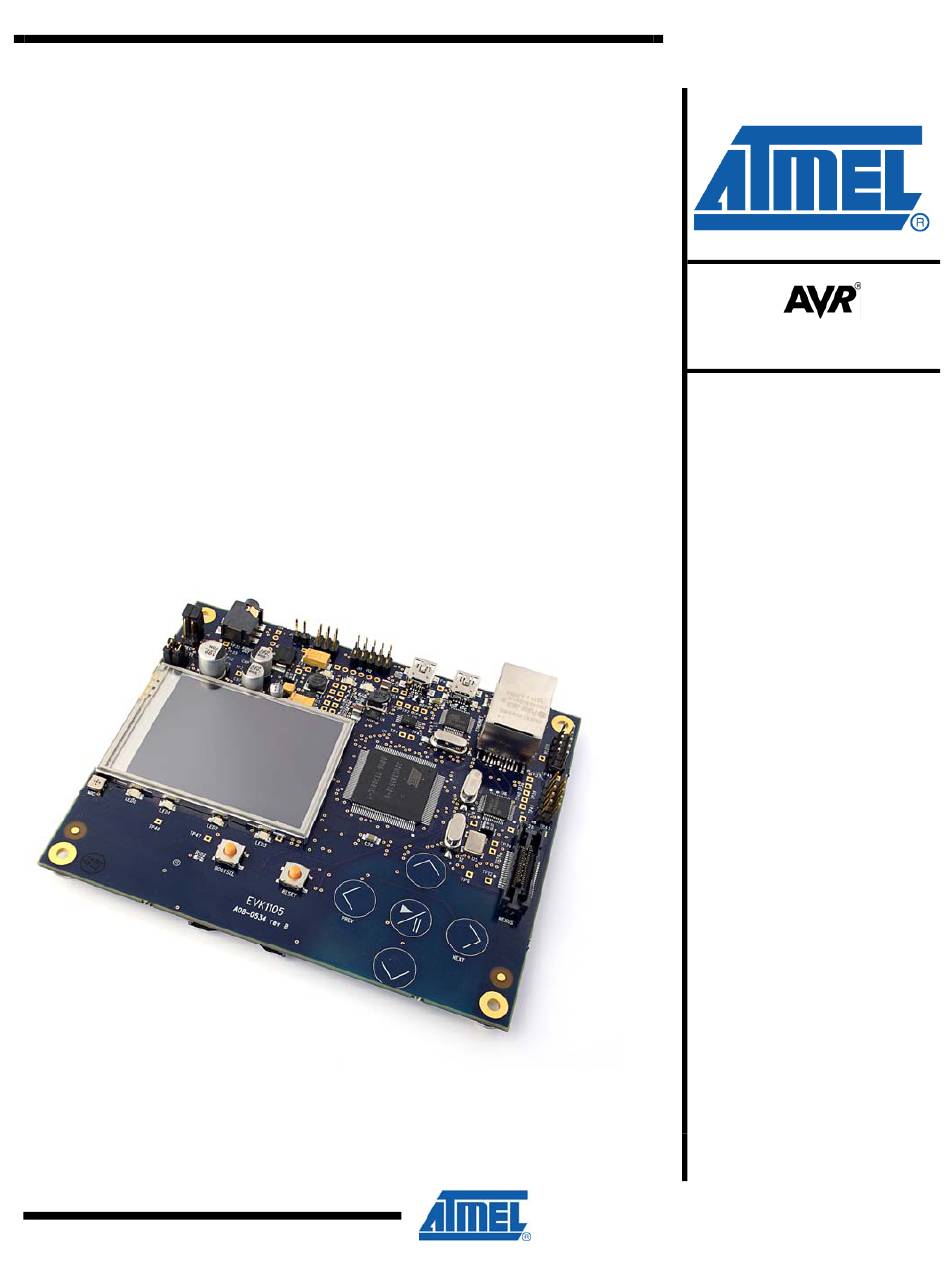

Figure 1-1 EVK1105 board
32-bit
Microcontrollers
EVK1105 Getting
Started Guide
Rev. 32113-AVR32-07/08
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atmel EVK1105
Summary of Contents for Atmel EVK1105
- Page 1 EVK1105 Getting AT32UC3A0512 microcontroller from Atmel Corporation. The kit is equipped with a rich set of memories and peripherals that make the EVK1105 to a perfect audio Started Guide platform. This guide shows the user how to get quickly started with this kit.
- Page 2 2 Powering up the board The EVK1105 offers three interfaces to power the board, from one of the two USB interfaces or from an external source connected to the header J1. The board can be powered from 3 different sources, external power supply, “USB VCP” and “USB USER”...
- Page 3 AVR32913 More information about the different power inputs is available in the hardware user’s guide. When the board is powered the green LED, marked with “PWR”, will light up and the default board firmware will start to run. 3 Preparing the board for audio playback In order to play some music a USB mass-storage device must be connected to the “USB USER”...
- Page 4 Figure 4-1 Touch sensors for controlling the audio application 4.1 Disk browsing view In this view it is possible to browse the storage media but only MP3 files and directories will be shown. Use the touch sensors to browse the storage media for the music file or playlist you want to play.
- Page 5 AVR32913 5 References and further information EVK1105 hardware reference: This is included in the AVR32 Studio and on the avrfreaks wiki page (http://www.avrfreaks.net/wiki). 32113-AVR32-07/08...
- Page 6 (WEEE), FCC, CE or UL (except as may be otherwise noted on the board/kit). Atmel supplied this board/kit “AS IS,” without any warranties, with all faults, at the buyer’s and further users’ sole risk.
- Page 7 BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein.
