Summary of Contents for Stanley ST-22-240-E

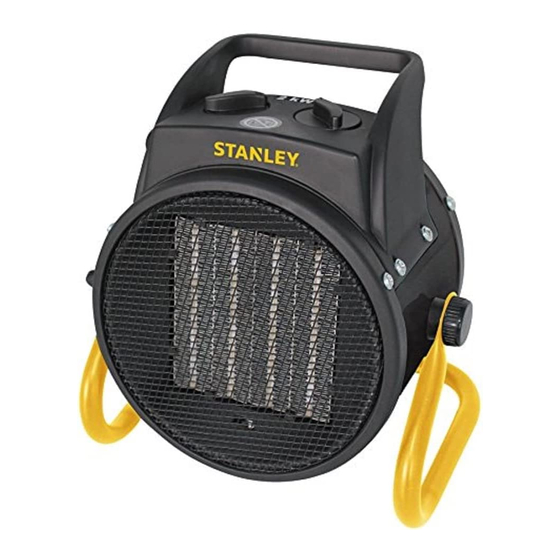

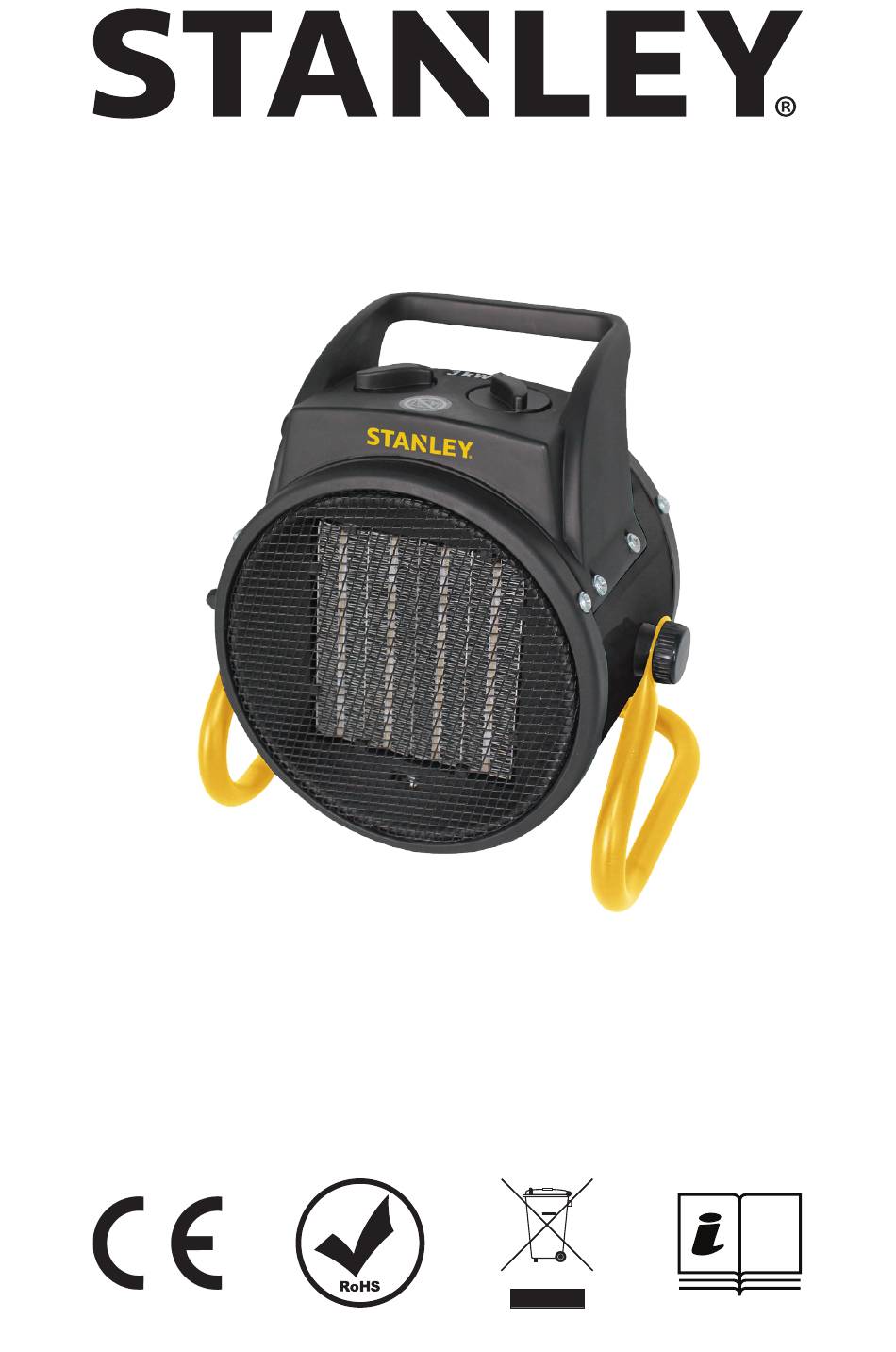

- Page 1 ST-22-240-E / ST-23-240-E Electric Fan Heater STEA-434...
- Page 2 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the...
- Page 3 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Read the instruction manual: When this symbol is marked on a product, it means that the instruction manual must be read. Do not use the appliance for other than its intended use.
- Page 4 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE ST-22-240-E / ST-23-240-E 1. Front Guard 2. Fan 3. Heat Coil 4. Power Light 5. Function Selector 6. Handle 7. Thermostat 8. Adjustment Knob (x2) © 2017, Obelis S.A Registered Address:...
-
Page 5: Specifications
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE SPECIFICATIONS Specifications subject to change without notice ST-22-240-E ST-23-240-E RATED POWER INPUT (kW) AIR FLOW (m HEATING AREA (m 40/20 60/30 RATED VOLTAGE/FREQUENCY 220-240V~50Hz 220-240V~50Hz HEAT SETTINGS WEIGHT 1.7 kg 2.9 kg... -
Page 6: Electric Shock Hazard
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Safety Information IMPORTANT: Read and understand all of the safety information and instructions in this manual before operating your heater. RISK OF EXPLOSION! Do Not operate this heater where there are harmful, explosive or flam- DANGER mable gasses, fumes or hazard-... - Page 7 STANLEY, The STANLEY Logo, The Notched Rectangle and the Yellow and Black Diagonal Package Design are all trademarks of Stanley Black & Decker, Inc. or an affiliate thereof. © 2017, Obelis S.A Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium...
-
Page 8: Operation
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Operation - The thermostat will then switch on and off automatically to control the room 1. Position the fan heater so that it stands temperature according to the preset upright on a firm, level surface and at value and keep the room temperature a safe distance from wet environments constant. - Page 9 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Plug Replacement RISK OF ELECTRIC SHOCK! WARNING DISCONNECT FROM POWER BEFORE MAINTENANCE. NOTE: This section only applies to heaters sold or used in Great Britain. This appliance is supplied with a BS1363 be connected to the earthing terminal 3 pin plug fitted with a fuse.
- Page 10 NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Plug Replacement Wiring Diagram GREEN / YELLOW Earth BROWN Live BLUE Neutral FUSE 13 Amps CORD CLAMP Figure 3 © 2017, Obelis S.A Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium...
-
Page 11: Troubleshooting
NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Troubleshooting Problem Cause Solution 1. The plug is loose, bad 1. Pull out the plug, check The heater does not run, even connection. the connection of the plug when it is plugged in and the and socket. - Page 12 Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA Obelis S.A. Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium © 2017 Stanley Black & Decker, Inc.
