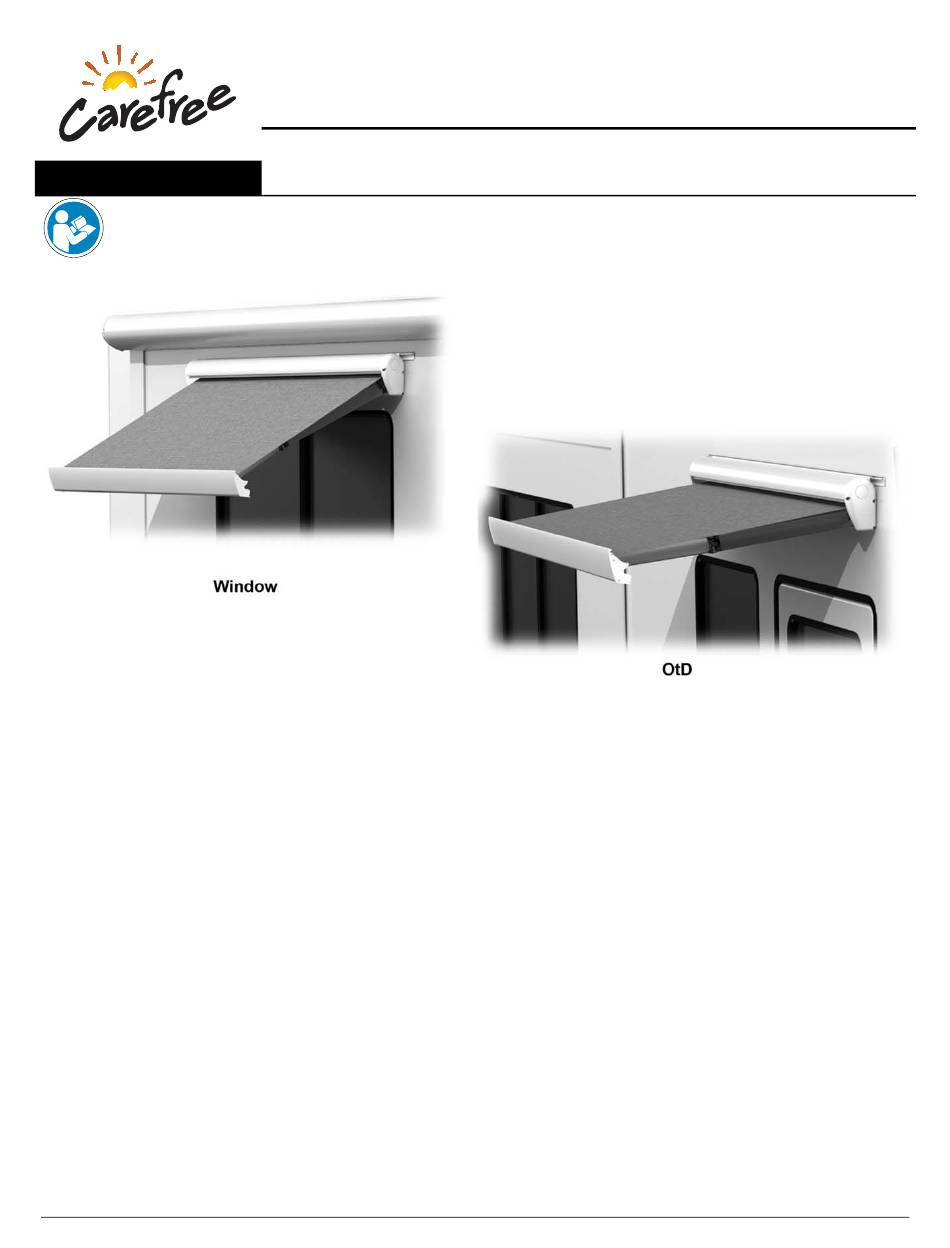

Carefree MARQUEE Installation Manual

Rv window and otd awnings
Hide thumbs Also See for MARQUEE:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
RV
Read this manual before installing or using this product. Failure to follow the instructions
and safety precautions in this manual can result in personal injury and/or cause the
product to not operate properly.
T
C
ABLE OF
ONTENTS
Product Overview .......................................................................................................................... 3
Component Checklist.............................................................................................................................. 3
Installation ..................................................................................................................................... 4
Installation Using an Awning Rail ........................................................................................................... 4
Switch Installation ......................................................................................................................... 5
Installer Furnished Switches ................................................................................................................... 6
Alternate Switch A .......................................................................................................................... 6
Alternate Switch B .......................................................................................................................... 6
Setting the Motor Limits .......................................................................................................................... 7
Optional LED Lights ................................................................................................................................ 8
Switch Installation ................................................................................................................................... 8
052549-001r8
I
NSTALLATION
Printed in USA
M
M
ARQUEE
W
O
D A
INDOW AND
T
November, 2018
ANUAL
WNINGS




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARQUEE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carefree MARQUEE

Summary of Contents for Carefree MARQUEE

  • Page 1: Table Of Contents

    NSTALLATION ANUAL ARQUEE INDOW AND WNINGS Read this manual before installing or using this product. Failure to follow the instructions and safety precautions in this manual can result in personal injury and/or cause the product to not operate properly. ABLE OF ONTENTS Product Overview ..........................
  • Page 2 Carefree of Colorado agrees to allow the reproduction of this document for use with Carefree of Colorado products only. Any other reproduction or translation of this document in whole or part is strictly prohibited without prior written approval from Carefree of Colorado.

  • Page 3: Product Overview

    RODUCT VERVIEW The Marquee Window and OtD (Over the Door) Awnings are state of the art lateral arm awnings. When retracted, the housing provides protection against the elements while the streamlined styling blends in with the coach side wall. The full tension canopy fabric allows the awning to be partially or fully extended for best shade coverage.

  • Page 4: Installation

    Installation Manual ARQUEE Carefree of Colorado NSTALLATION The awning is mounted using a standard awning rail. If there is an awning rail installed, check that the awning rail runs the full length of the awning. The awning rail must be extremely straight to accommodate the awning mount. If a full length awning rail is installed, skip to step 6 below.

  • Page 5: Switch Installation

    Installation Manual Carefree of Colorado ARQUEE WITCH NSTALLATION WARNING Shock Hazard. Always disconnect battery or power source before working on or around the electrical system. Determine the location for the switch.  There is approximately 180cm [70”] of wire from the awning motor. If the distance to the switch exceeds the furnished wire, the installer must furnish 16 awg wire and butt splice to the motor wires.

  • Page 6: Installer Furnished Switches

    MUST Alternate Switch B Used with the Carefree relay module, the installer may use up to two (2) single pole switches. The switch(es) must be momentary on, single pole, double throw, center OFF (Momentary ON – OFF – Momentary ON).

  • Page 7: Setting The Motor Limits

    The “ ” limit switch is used to stop the motor when the awning is fully retracted. For motor replacement and/or if limit adjustments are necessary, refer to the "Marquee Service Manual" available on-line at www.carefreeofcolorado.com...

  • Page 8: Optional Led Lights

    Installation Manual ARQUEE Carefree of Colorado LED L PTIONAL IGHTS Optional LED lighting is mounted in the lead rail. The wiring is routed along the top of the arm. Route the LED wire harness with the motor cable into the vehicle.
