Page 1
NSTALLATION ANUAL ARQUEE INDOW AND WNINGS ABLE OF ONTENTS Product Overview .......................... 3 Component Checklist..........................4 Installation ............................. 5 Installation Using an Awning Rail ......................5 Electrical ............................6 Standard Switch Installation ........................6 Installer Furnished Switches........................7 Alternate Switch A ..........................7 Alternate Switch B ..........................7 Setting the Motor Limits ..........................8 Adjusting the OUT Limit Switch ......................8 Adjusting the IN Limit Switch ......................8...
Carefree of Colorado agrees to allow the reproduction of this document for use with Carefree of Colorado products only. Any other reproduction or translation of this document in whole or part is strictly prohibited without prior written approval from Carefree of Colorado.

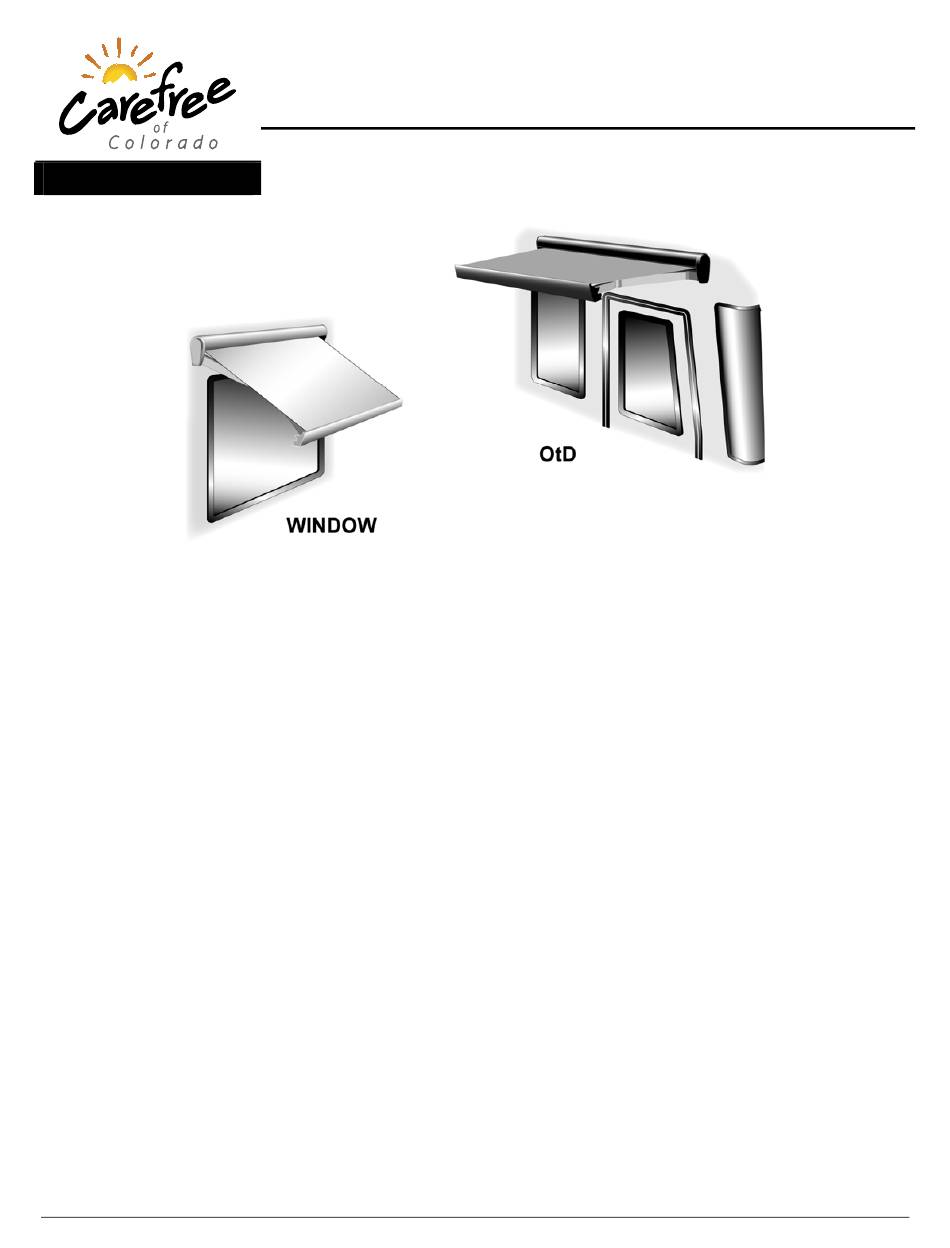

RODUCT VERVIEW The Marquee Window and OtD (Over the Door) Awnings are state of the art lateral arm awnings. When retracted, the housing provides protection against the elements while the streamlined styling blends in with the coach side wall. The full tension canopy fabric allows the awning to be partially or fully extended for best shade coverage.
Installation Manual Carefree of Colorado ARQUEE OMPONENT HECKLIST WN ER OT OR AN UA IZE D IND OW AR QU AN D WN ING Mar que arm s e ser side tha t pro vide ies of wal ls, sm all...
Carefree of Colorado Installation Manual ARQUEE NSTALLATION The awning is mounted using a standard awning rail. If there is an awning rail installed, check that the awning rail runs the full length of the awning. The awning rail must be extremely straight to accommodate the awning mount. If a full length awning rail is installed, skip to step 6 below.
Installation Manual Carefree of Colorado ARQUEE LECTRICAL CAUTION LWAYS DISCONNECT THE BATTERY AND ELECTRICAL SOURCES BEFORE WORKING WITH THE ELECTRICAL WIRING NOTE: The recommended cable from the switch to the awning should be 2-conductor, 20AWG, stranded, PVC coated, unshielded wire.
Wire the switch as shown on page 6. Alternate Switch B Used with the Carefree relay module, the installer may use up to two (2) single pole switches. The switch(es) must be momentary on, single pole, double throw, center OFF (Momentary ON –...
Installation Manual Carefree of Colorado ARQUEE ETTING THE OTOR IMITS The motor limit switches are preset at the factory for best operation of the awning. The “ ” limit switch is used to stop the motor when the awning is fully extended. The “...
