Whirlpool SF365BEW Use And Care Manual

Self-cleaning gas range
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

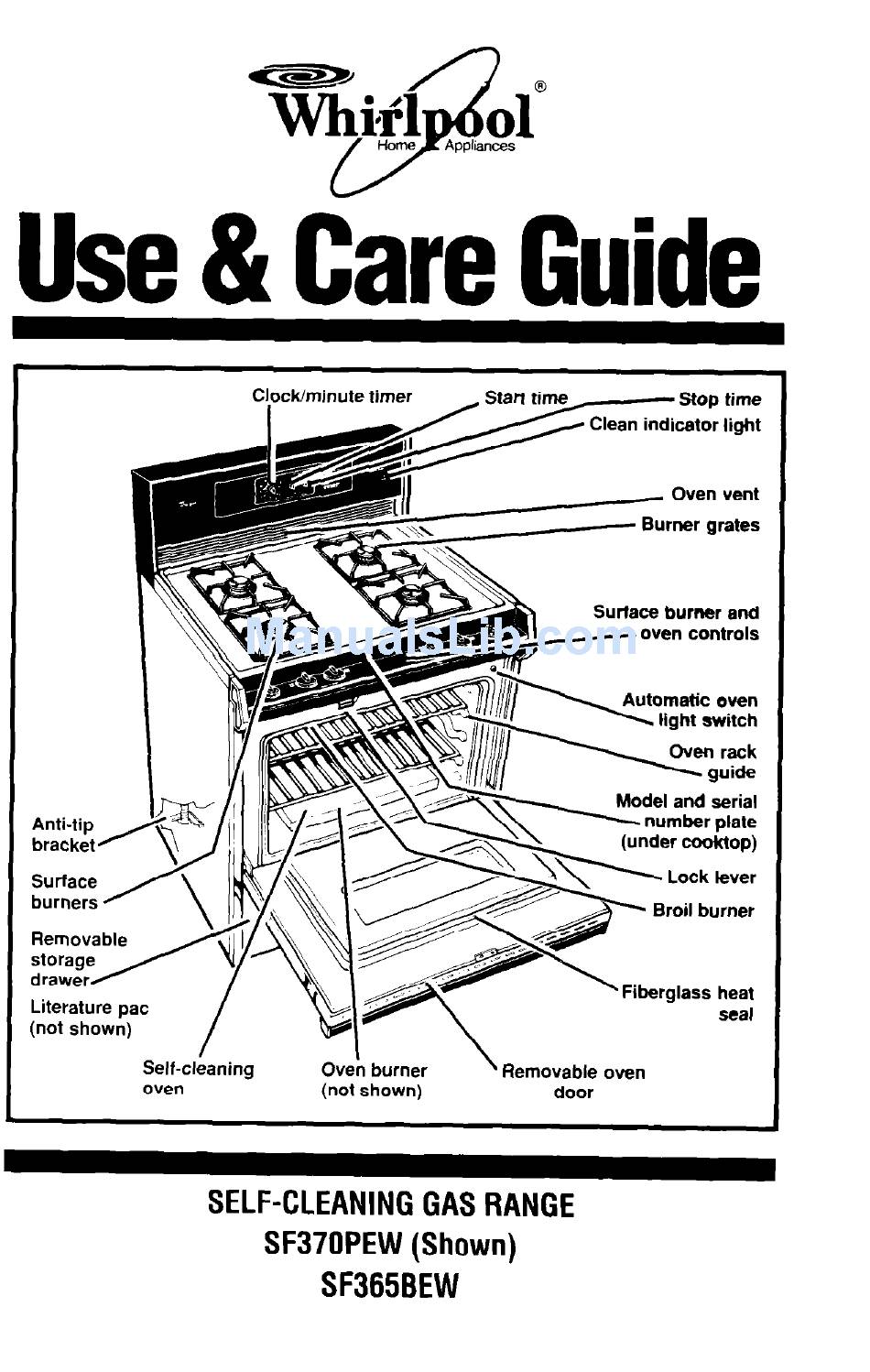

Use & Care Guide
-.
1
Anti-tip
bracket H
ClyWminute
timer
/
StaR time
,-
Stop tim
v
Clean indicator
ligt
-61
L
Oven ver
\\.
--
Burner grate!
Surface burner ark
Oven rack
\
mlirlr
Literature
pat
(not shown)
/
\
Self-clbaning
oven
Ovek burner
\
Removable
oven
(not shown)
door
SELF-CLEANINGGAS RANGE
SF370PEW (Shown)
SF365BEW

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool SF365BEW

Summary of Contents for Whirlpool SF365BEW

  • Page 1 Use & Care Guide Anti-tip bracket H Literature (not shown) Self-clbaning oven SELF-CLEANINGGAS RANGE ClyWminute timer Ovek burner (not shown) SF370PEW (Shown) SF365BEW Stop tim StaR time Clean indicator Oven ver Burner grate! Surface burner ark Oven rack mlirlr Removable oven door ligt...

  • Page 2: Table Of Contents

    These can damage the finish. See “Important Safety Instructions” on page 3. Page Thank you for buying a Whirlpool appliance. the Owner Registration vided with this product. complete the form below. Have this information ready if you need service or call with a question.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Gas ranges have been thoroughly tested for safe and efficient operation. However, as with any appliance, there are specific installation and safety precautions which must be followed to ensure safe and satisfactotv ooeration. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VICINITY OF THIS OR ANY OTHER APPLIANCE.
  • Page 4 Important Safety Instructions Continued . Install or locate the range only in accordance with the provided Installation Instructions. It is recommended that the range be installed by a qualified installer. The range must be properly connected to the proper gas supply and checked for leaks.
  • Page 5 9 Do not heat unopened containers. They could explode. The hot contents could cause burns and container particles could cause injury. Grease is flammable and should be handled carefully. Let fat cool before attempting to handle it. Do not allow grease to collect around cooktop or in vents.

  • Page 6: Using Your Range

    Using Your Range Sutiace marker Using the surface burners Control knobs must be pushed in, then turned to the LITE position. The clicking sound is the ignition sparking. To stop the clicking sound after the burner lights, turn the control knob back to a desired setting.

  • Page 7: Setting The Clock

    In case of a prolonged power failure: Surface burners can be manually lighted. Hold a lighted match near a burner and turn the control to the LITE position. After the burner lights, turn the control to the desired setting. Burn, Fire and Explosion Burner flame should not extend beyond the edge of the cooking utensil.

  • Page 8: Using The Minute Timer

    Using Your Range Continued Using the Minute Timer The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour. You will hear a buzzer when the set time is up. Do not Dush in the knob when...

  • Page 9: Using The Oven Controls

    Using the oven controls Baking 1. Position the rack(s) properly before turning on the oven. To change rack front edge and lift out. the top of the food will be centered in the oven. Always leave at least 1 l/2 to 2 inches (4-5 cm) between the sides of the pan and the oven walls and other pans.

  • Page 10: Adjusting The Oven Temperature Control

    Using Your Range Continued raise Adjusting the oven temperature control Does your oven seem hotter or colder than your old oven? The temperature of your old oven may have shifted gradually without you noticing the change. Your new oven is properly adjusted to provide accurate tempera- tures.

  • Page 11: Broiling

    Broiling Refer to the Cooking Guide for addi- tional broiling information. Because not all Cooking Guide information applies to these models, please read this section and the Cooking Guide carefully. 1. Position the rack before turning the oven on. Refer to broiling chart on next page for recommended positions and broiling times.
  • Page 12 Using Your Range Continued Broiling chart The times and temperatures shown are provided as a general guide. Both may be varied to brown food or to achieve desired doneness. FOOD SIZE Bacon Thin Beef, ground 1” thick Beef, steak rare medium 314 - 1 114”...

  • Page 13: Using The Automatic Mealtimer"' Clock

    Usin the automatic MEA P TIMER’” clock The automatic MEALTIMER’” designed to turn the oven on and off at times you set, even when you are not around. Automatic baking is ideal for foods which do not require a preheated oven such as meats and casseroles.
  • Page 14 Using Your Range Continued To start baking now and stop automatically: 1. Position rack(s) properly, and place the food in the oven. 2. Make sure the clock is set to the right time of day. 3. Push in and turn the Stop Time Knob clockwise to the time you want the oven to shut off.

  • Page 15: The Oven Vent

    Lever The oven vent Hot air and moisture escape from the oven through a vent just under the backguard. The vent is needed for air circulation. Do not block the vent. Poor baking will result. Burn Hazard When the oven is ON, pans and pan handles leff near the oven vent can become hot enough to burn the user and to melt plastics.
  • Page 16 Using Your Range Continued 3. Pull drawer out a little farther until levers stay in “up” position. Pull drawer the rest of the way out. Replacing the storage drawer: 1. Make sure ball bearings on oven slide rail are positioned toward the front of the opening.

  • Page 17: Caring For Your Range

    Caring For Your Range Burn, Electrical Shock, Fire and Explosion Hazard 9 Make sure all controls and the range is cool before cleaning. 9 Do not use oven cleaners, bleach or rust removers. Do not use gasoline or other flammable liquids or vapors to clean this or any other appli- ance.

  • Page 18: Surface Burner Grates

    Caring For Your Range Continued 4. Wash control knobs in warm soapy water. Rinse well and dry with a soft cloth. Do not soak. 5. Replace control knobs by pushing them firmly into place. NOTE: When cleaning, never use steel wool, abrasives, or commercial oven cleaners which may damage the finish.

  • Page 19: Surface Burners

    Typical surface burner flame 3. Wash the grates with warm soapy water or in a dishwasher. Use a non- abrasrve plastic scouring pad for heavily-soiled well. 4. Replace burner grates. Surface burners To remove the cooktop, follow the instructions in “Removable cooktop” on next page.

  • Page 20: Removable Cooktop

    Caring For Your Range Continued Removable cooktop 1. Remove surface burner grates 2. Lift front of cooktop enough to clear front of range. Grasp both sides of the cooktop, lift and pull forward to remove. 3. Wipe surface under the cooktop with warm soapy water.

  • Page 21: Using The Self-Cleaning Cycle

    Hand tie ban frame Hand clean door around edge 1 Do not hand clean seal Using the Self-Cleaning cycle The Self-Cleaning cycle uses very high heat to burn away soil. Before you start, make sure you understand exactly how to use the Self-Cleaning cycle safely. Before you start I.
  • Page 22 Caring For Your Range Continued Personal Injury and Product Damage Hazard Do not touch the oven during the Self-Cleaning cycle. It could burn you. 9 Do not use commercial cleaners in your oven. Cleaners may produce hazardous or damage the porcelain Do not force the Lock Lever, you could bend or break it.
  • Page 23 Make sure the Clock, Start and Stop Times all have the right time of day. Push in and turn the Stop Time Knob clockwise 2-4 hours. Use 2 hours for light soil. Use 3 hours for moderate soil. Use 3-4 hours for heavy soil. NOTE: Make sure the Start Time Knob is out.
  • Page 24 Caring For Your Range Continued Self-Cleaning cycle - 2 112 hour setting (Approximate temperatures 1000°F 800°F 600°F 400°F 200°F START l/2 hr. Notice that the heating stops when the 2 l/2 hour setting is up, but that it takes longer for the oven to cool down enough to unlock. To stop the Self-Cleaning any time: Push in and turn the Stop Time Knob...

  • Page 25: Cleaning Tips

    Cleaning tips Control knobs Clean with warm soapy water and a soft cloth. Wash, rinse and dry well. Do not soak. Control panels Clean with warm soapy water or spray glass cleaner and a soft cloth. Wash, rinse and dry well. Follow directions provided with the cleaner.

  • Page 26: The Oven Light

    Caring For Your Range Continued The oven light The Oven Light will come on when you open the oven door. Model SF370PEW only: To turn the light on when the oven door is closed, push the Oven Light Switch on the control panel. Push the switch again to turn off the light.

  • Page 27: If You Need Service Or Assistance

    If You Need Service Or Assistance.. . We suggest you follow these steps: 1. Before calling for assistance... Performance problems often result from little things you can find and fix wit iout tools of any kind. If nothing operates: Is the gas turned on? Is the power supply cord plugged into a live circuit with the proper voltage? (See Installation Instructions.)
  • Page 28 United States. To locate the authorized Whirlpool service company in your area, call our COOL-LINE” service assistance telephone number (see Step 2) or look...
  • Page 29 Notes...
  • Page 30 Notes...
  • Page 31 Notes...

  • Page 32: Whirlpool Range Warranty

    C. Pick-up and delivery. This product is designed to be repaired in the home. D. Damage to range product caused by accident, misuse, fire, flood, acts of God or use of products not approved by Whirlpool. WHIRLPOOL CORPORATION SEQUENTIAL DAMAGES.
