Whirlpool SF362LXTB2 Parts List

30" gas freestanding self clean range sealed burner
Hide thumbs

Advertisement

Quick Links

For Models: SF362LXTB2, SF362LXTQ2, SF362LXTT2, SF362LXTS2, SF362LXTY2
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
9762998 Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10162213 Owners Manual
W10116296 Tech Sheet
9762761 Safer Cooking Tips
2
Cap, Burner
Left Front
3191904 Black
3191905 Grey
8273345 Espresso
R. Front, L. Rear
3191901 Black
3191903 Grey
8273344 Espresso
Right Rear
3191898 Black
3191899 Grey
8273343 Espresso
12−07 Litho In U.S.A. (mo)

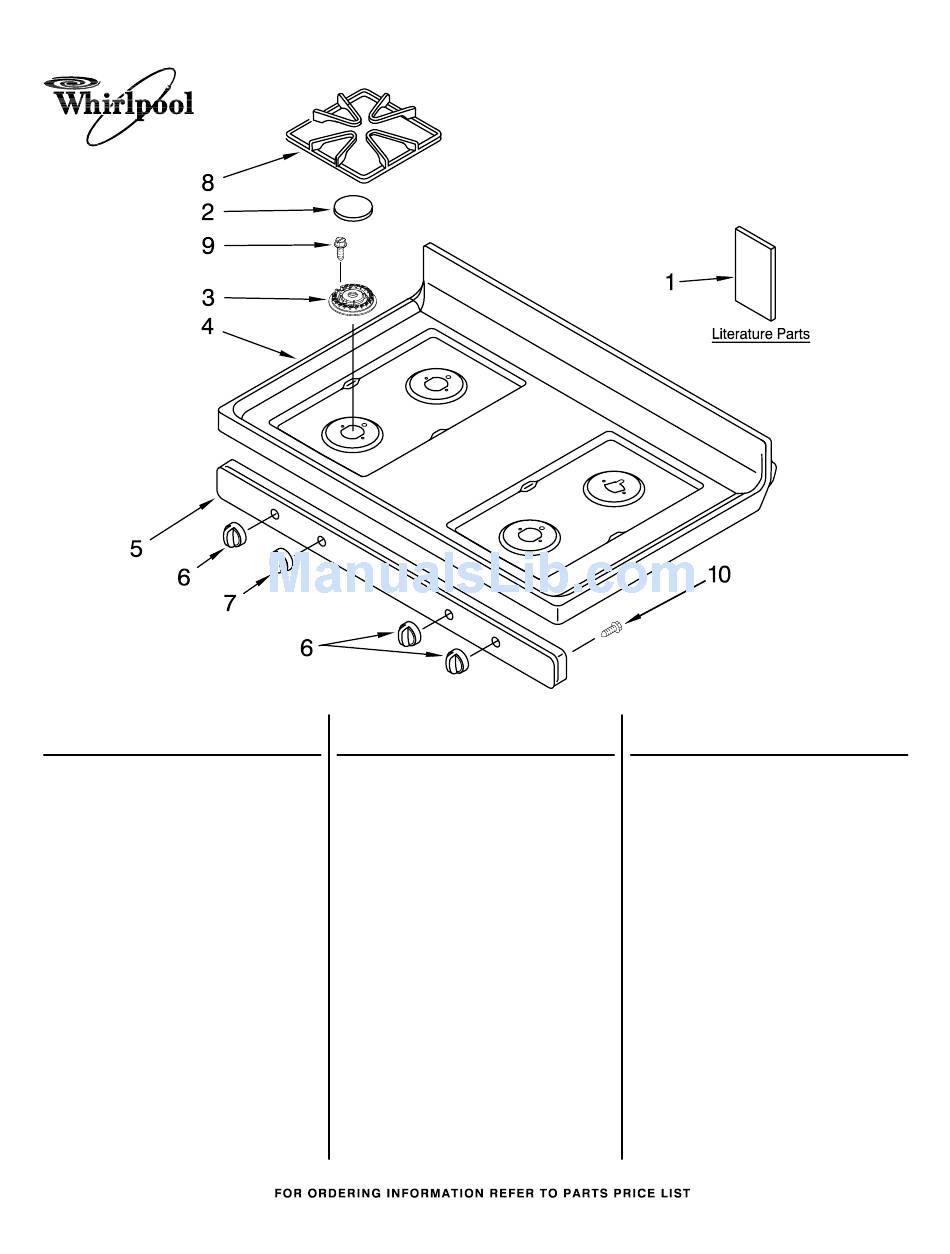

COOKTOP PARTS
(Black)(Designer White)(Designer Biscuit)(Stainless Steel)(Universal Silver)
Illus.
Part
No.
No.
3
4455981 Left Front
4455980 R. Front, L. Rear
4455979 Right Rear
4
8272251 White
8272743 Biscuit
8272253 Black
5
8523855 Black
8523854 White
8523856 Biscuit
Illus.
DESCRIPTION
No.
Burner
Cooktop
Panel, Manifold
10
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
Part
No.
DESCRIPTION
6
Knob, Control (3)
8273103 Black
8273104 White
8273106 Biscuit
7
Knob, Powerburner
8273111 Black
8273112 White
8273114 Biscuit
8
Grate, Burner (4)
8522851 Black
8522850 Grey
8522853 Espresso
9
3400701 Screw
3196557 Screw
Part No. W10181234 Rev.A
