Summary of Contents for Jet VLP Series

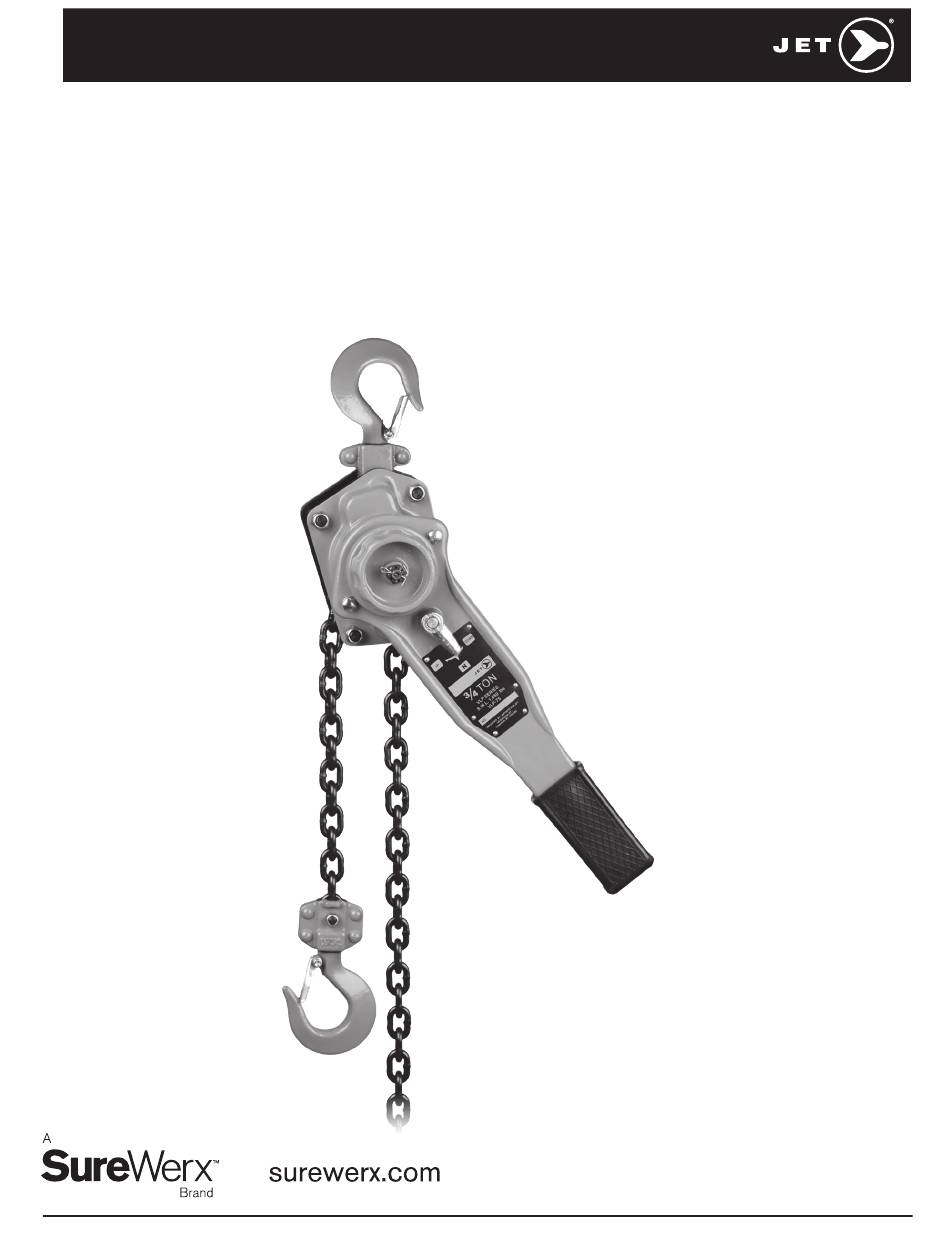

- Page 1 Operator’s MANUAL Prod. No. 110302 110303 110304 110306 VLP SERIES LEVER CHAIN HOISTS 110307 110308 Mod. No. VLP-75-5 VLP-75-10 VLP-150-5 VLP-150-10 VLP-300-5 VLP-300-10 M18-MH110302-308...
-
Page 2: Table Of Contents
JET’s discretion. Repairs and/ provide this information. workmanship when the product is or replacements are warranted as JET shall not be held liable for any used for the purpose for which it was described for the specific product and consequential or incidental damages designed. -
Page 3: Information For Your Safety
If the lever hoist owner/user requires additional information, or if any information in these instructions are not clear, Modifications to upgrade, rerate or otherwise alter these lever contact your local JET Material Handling Products ® hoists shall be authorized only by the original equipment distributor. -
Page 4: Prior To Installation
This can occur at loads well under the rated capacity. REPLACEMENT OF CHAIN: USE ONLY GENUINE JET GRADE 80 REPLACEMENT LOAD CHAIN... -
Page 5: Inspection And Maintenance
INSPECTION AND MAINTENANCE Prior to initial use, all new, modified, and repaired hoists shall be inspected in accordance with Table 2. Thereafter, inspections shall be conducted at intervals shown in Table 1; and items to be inspected are indicated in Table 2 by F (Frequent) or P (Periodic). Frequent Inspections –... -
Page 6: Hooks
HOOKS WARNING Any hook that requires replacement because of excessive bends, twists, or throat opening indicates abuse or overloading of the hoist. Therefore, other load-supporting components of the lever hoist should be inspected for possible damage when such conditions are found. 2. -
Page 7: Chain
CHAIN Inspect chain at least once a month. Between regular inspections, check visually daily for nicks, gouges, weld splatter, corrosion, or distorted links. Inspect chain thoroughly if it does not feed smoothly over load sheaves. Inspect as follows: Clean chain with solvent before inspection. 2. -
Page 8: Parts Breakdown
VLP LEVER HOIST Prod. No. 110302, 110303, 110304, 110306, 110307, 110308... -
Page 9: Parts List
VLP LEVER HOIST Prod. No. 110302, 110303, 110304, 110306, 110307, 110308 PART NUMBER PART NUMBER PART NUMBER DESCRIPTION PVI-VLP75-2 PVI-VLP150-2 PVI-VLP300-2 CASTLE NUT PVI-VLP75-3 PVI-VLP150-3 PVI-VLP300-3 SPLIT PIN PVI-VLP75-4 PVI-VLP150-4 PVI-VLP300-4 HAND WHEEL PVI-VLP75-5 PVI-VLP150-5 PVI-VLP300-5 HEX HEAD SCREW PVI-VLP75-6 PVI-VLP150-6 PVI-VLP300-6 SPRING WASHER...
