SYM
SYMBOLS AND MARKS ....................1-1
GENERAL SAFETY ...........................1-2
SERVICE PRECAUTIONS .................1-3
SPECIFICATIONS..............................1-9

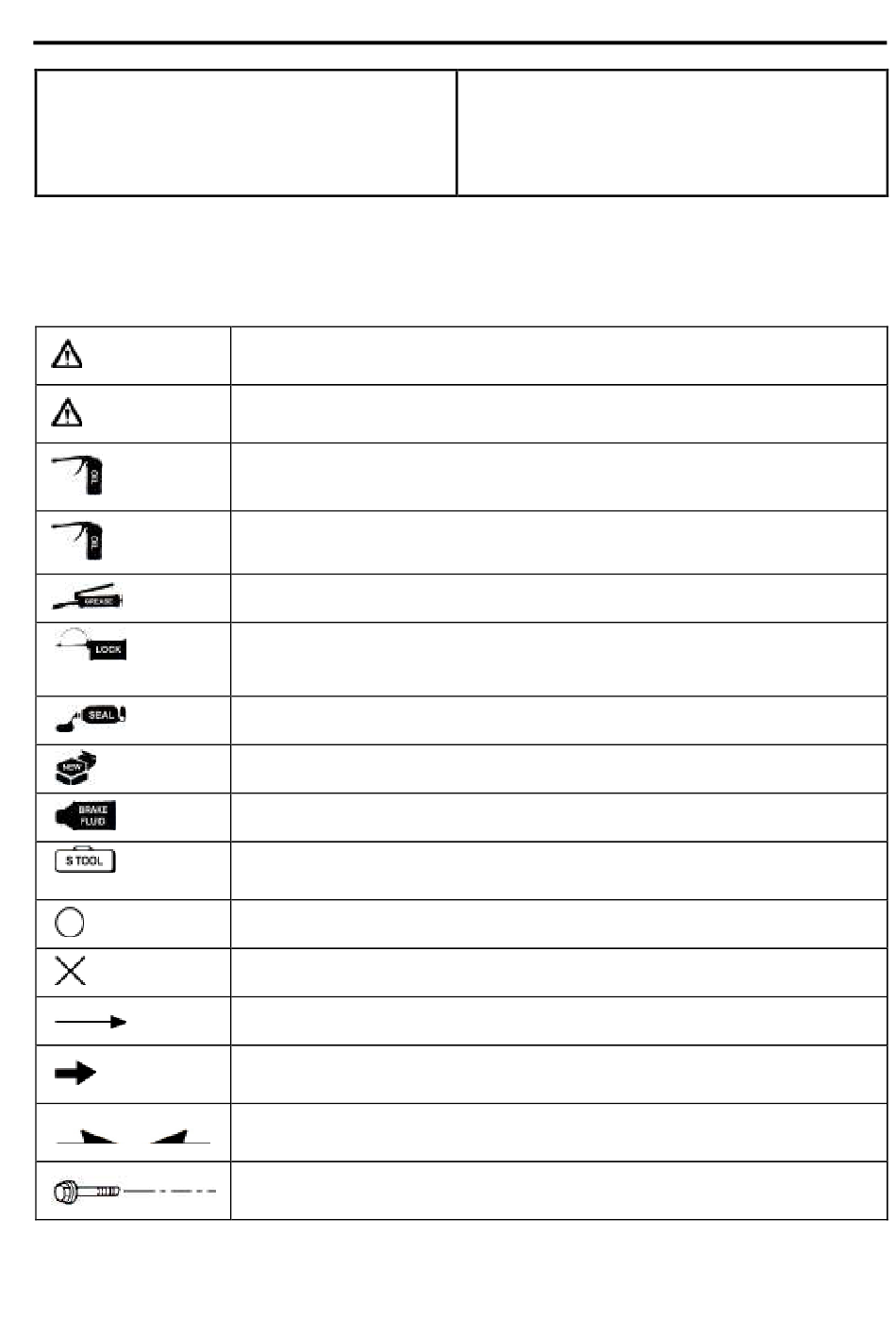

SYMBOLS AND MARKS
Symbols and marks are used in this manual to indicate what and where the special service are
needed, in case supplemental information is procedures needed for these symbols and marks,
explanations will be added to the text instead of using the symbols or marks.
Warning
Caution
Engine oil
Gear oil
Grease
Locking sealant
Oil seal
Renew
Brake fluid Use recommended brake fluid DOT3 or WELLRUN brake fluid.
Special tools
Correct
Wrong
Indication Indication of components.
Directions
1. GENERAL INFORMATION/TROUBLE DIAGNOSIS
Means that serious injury or even death may result if procedures are not
followed.
Means that equipment damages may result if procedures are not followed.
Limits to use SAE 10W-30 API SH/CD class oil. Warranty will not cover the
damage that caused by not apply with the limited engine oil.
Limits to use SAE 85W-140 class oil. Warranty will not cover the damage
that caused by not apply with the limited gear oil.
King Mate G-3 is recommended.
Apply sealant, medium strength sealant should be used unless otherwise
specified.
Apply with lubricant.
Replace with a new part before installation.
Special service tools.
Meaning correct installation.
Meaning wrong installation.
Indicates position and operation directions.
Components assembly directions each other.
Indicates where the bolt installation direction, --- means that bolt cross
through the component (invisibility).
TORQUE VALUES (ENGINE).............. 1-10
TORQUE VALUES (FRAME) ............... 1-11
TROUBLES DIAGNOSIS ..................... 1-12
LUBRICATION POINTS ....................... 1-16
1-1
