- Page 1 PROPRIETARY AND CONFIDENTIAL Explore the next sense Getting Started Guide Acconeer XM112-XB112 Module Evaluation Kit Dec 2018...
- Page 2 PROPRIETARY AND CONFIDENTIAL Installation guide The XM112 is delivered non-flashed. This installation quick guide will show you how to get the Acconeer XM112-XB112 Module Evaluation Kit (EVK) up and running. For a hands-on instruction video, please visit https://www.youtube.com/watch?v=FjYTIySbLZk © 2018 by Acconeer...
- Page 3 PROPRIETARY AND CONFIDENTIAL Preparing the HW Installation To complete a successful installation of Acconeer EVK, the following HW components will be required: Additionally*: XB 112 Breakout Board XM 112 Module • USB Micro Cable for connection to PC * Not provided by Acconeer.

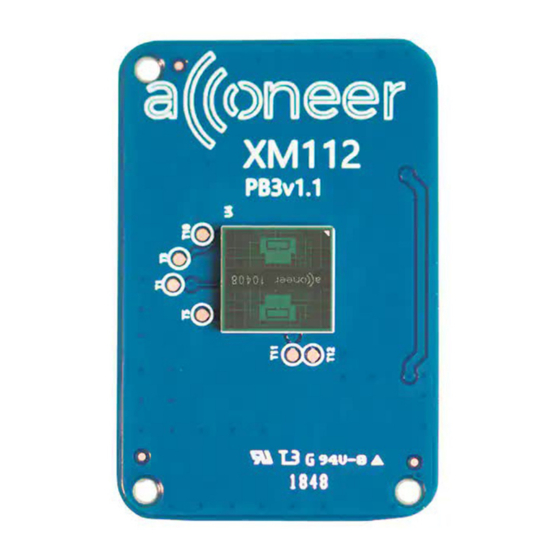

- Page 4 PROPRIETARY AND CONFIDENTIAL HW Overview XB112 (Breakout board) XM112 Front I2C, GPIOs, UART A111 USB #1 for Voltage supply and UART0 Serial wire debug/ Back JTAG USB #2 for SPI Connector © 2018 by Acconeer...
- Page 5 The following applications will be required to complete an installation. Also, they will be very useful when working with the Radar Sensor EVK. Please download and install: • Acconeer Module SW Image for XM112: Available from https://developer.acconeer.com/ • Acconeer Exploration tool: https://github.com/acconeer/acconeer-python-exploration...
- Page 6 PROPRIETARY AND CONFIDENTIAL Assemble the HW XM112/XB112 • Connect the XM112 Module to the XR111 Sensor Board XB112 Breakout Board. • Connect the USB cable to USB slot #1 • End result in the rightmost picture USB #1 Connector Connector...
- Page 7 PROPRIETARY AND CONFIDENTIAL Start Boot Mode Press the ERASE-button and hold it. Press the NRST-button and hold it. NRST Release the NRST-button. Release the ERASE-button Now the module is in boot ERASE mode © 2018 by Acconeer...
- Page 8 PROPRIETARY AND CONFIDENTIAL Installing BOSSA Open the installer that you have downloaded. Follow the instructions in the setup wizard and accept the license agreement. No changes needed. Next – Next – Next – Install - Finish © 2018 by Acconeer...
- Page 9 Choose serial port (Pic 1). The one you have plugged XM112 into. Browse and select the module server SW image downloaded from the Acconeer web page. It is located in folder xm112_module_software/bin/. (Pic 2,3) Make sure Erase all AND Boot to flash options are selected (Pic 3) Click Write and flashing will begin.
-
Page 10: Installing Python
• Make sure the Add Python to PATH option is selected. (Pic 1) • Click Install Now. No need for a customized Installation. (Pic 2) Close once the installation is completed. (Pic 3) • © 2018 by Acconeer... - Page 11 PROPRIETARY AND CONFIDENTIAL Installing Exploration tool Unzip the file downloaded from Acconeer. • Acconeer-python-exploration • Start windows command prompt. (Pic 1) You can always find it by searching for “cmd”. • In the command prompt, change the directory to where you unzipped the exploration tool by typing the command cd followed by the path to the folder.
- Page 12 PROPRIETARY AND CONFIDENTIAL Installing Exploration tool Run the command: pip install --user –r • requirements.txt (Pic 1) • Wait until the installation has finished and run the next command: python setup.py install --user (Pic 2) © 2018 by Acconeer...
- Page 13 Run the exploration tool • You need to start by rebooting the NRST XM112 module. • Press the NRST button on the XM112 card and hold for 1s. Run the following command in the • command promt: python examples/services/envelope.py –u [port id] In our example we have used port13.
- Page 14 PROPRIETARY AND CONFIDENTIAL Envelope graph © 2018 by Acconeer...
