Summary of Contents for Acconeer XM112

Page 1 HP module EVK hardware user guide XM112, XB112, LH112...
Page 2 HP module EVK hardware user guide – XM112, XB112 LH112 HP module EVK hardware user guide - XM112, XB112, LH112 Author: Acconeer Version 1.2: 2022-08.25 Acconeer AB Page 2 of 41 © 2018 by Acconeer – All rights reserved 2022-08-25...
Page 3: Table Of Contents
HP module EVK hardware user guide – XM112, XB112 LH112 Table of Contents 1 Overview of the HP module EVK......................5 Introduction ..........................5 2 Software for the Module EVK ......................6 Software download ........................6 Module software for XM112 ....................6 SDK for ATMEL SAME70 .....................
Page 5: Overview Of The Hp Module Evk
The HP Module Evaluation Kit (The EVK) is a platform for evaluating the HP Module. The module is based on the Acconeer A111 sensor, which is an optimized low-power, high-precision 60 GHz radar in one package solution with integrated Baseband, RF front-end and Antenna. In the HP Module The A111 sensor is integrated together with an M7 processor (Atmel SAME70) which facilitates signal processing for advanced use cases.
Page 6: Software For The Module Evk
For the HP Module Acconeer provides two deliveries, a software development kit (SDK) for ATMEL SAME70 and a module software image for XM112. Details about the software offer can be found in the document “Introduction to Acconeer’s sensor technology”, available at the Acconeer website.
Page 7: The Hp Module Evk Hardware
HP module EVK hardware user guide – XM112, XB112 LH112 3 The HP Module EVK Hardware Figure 1 shows the block diagram for the HP Module Evaluation Kit XM112 1.8V ENABLE MCU_INT MCU_GPIO INTERRUPT ERASE A111 NRST SPI internal ATSAME70...
Page 8: Xb112 Breakout Board
3.1.1 Overview The XB112 is a breakout-board designed for the XM112 Radar Module. It makes the interfaces from the XM112 radar module accessible for evaluation and debug. It also enables flashing of the XM112 via USB-UART or SWD. The XM112 is connected to the XB112 via a board-to-board connector on the top side of the PCB.
Page 10: Power
The EVK is powered via the USB connectors on XB112. USB1 powers the USB-UART chip (U4) and the XM112. USB2 powers the USB-SPI chip (U5). If no SPI data is needed, the USB2 can be left unconnected. USB1 must however always be connected. If the USB-UART interface is not used, a dedicated USB charger can be inserted to USB1.
Page 11: Electrical Schematics
HP module EVK hardware user guide – XM112, XB112 LH112 3.1.3 Electrical Schematics On the following pages, please find the electrical schematics for the XB112. Page 11 of 41 2022-08-25 © 2018 by Acconeer – All rights reserved...
Page 15: Bill Of Material
HP module EVK hardware user guide – XM112, XB112 LH112 3.1.4 Bill of Material Table 1 shows the BOM for the XB112 Table 1 The BOM for the XB112. Component Ref. Specification QTY Value Comment C2,C9,C10,C11,C16,C 100/NF/K/50V/X7R/1005 100nF 18,C20,C22,C32,C33, 100/PF/J/10V/NP0,C0G/10...
Page 16 HP module EVK hardware user guide – XM112, XB112 LH112 FT230XS-R/USB to UART bridge FT4222H/USB to SPI bridge J5,J6 FTSH_105_04_F_DH/SWD Manufacturer: Samtech Connector, Right angle 2x5 pin header J7,J8 SWITCH TACTILE SPST- Manufacturer: Wurth NO 0.05A 12 Electronics 434331045822 B1,B2...
Page 17: Component Placement Drawing
HP module EVK hardware user guide – XM112, XB112 LH112 3.1.5 Component Placement Drawing The component placement drawing of XB112 is found below. Top Side: Page 17 of 41 2022-08-25 © 2018 by Acconeer – All rights reserved...
Page 19: Pinning/Connectors
Pinning/Connectors 3.1.6.1 USB1 (J1) USB1 is used as power supply for the XB112 and the XM112. It is also used for flashing and communicating over UART. USB1 is connected to the FTDI chip FT230XS which converts the UART interface from XM112 into USB signals. The pinout of USB1 is shown in Table 2.
Page 20 3.1.6.3 2x20 pin header (J3) The 2x20 pin header (1.27mm pitch) is not mounted. The reason is that it is intended for Acconeer internal use only. All the interfaces available in the 2x20 pin header are also available in the other connectors.
Page 21 HP module EVK hardware user guide – XM112, XB112 LH112 3.1.6.4 30 pin board-to-board connector (J4) The 30-pin board-to-board connector is intended to connect the XM112 to the XB112. The pinout is found in Table 5. Table 5. The pinout of J4.
Page 22: Buttons
Buttons There are two buttons on the XB112. J7 controls the signal “ERASE” from XM112 and J8 controls “NRST” from the XM112. In Table 8 the state of the buttons and the corresponding signal states are listed. Table 8. The states of the buttons J7 and J8.
Page 23: Hp Module

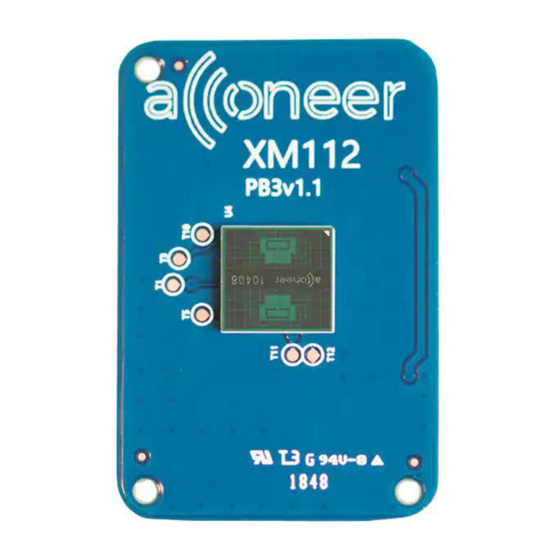

HP module EVK hardware user guide – XM112, XB112 LH112 HP Module 3.2.1 Overview The picture below shows the HP Module top side and Picture X shows the bottom side. Picture 1 shows the HP Module, front side. Page 23 of 41 2022-08-25 ©...
Page 25: Electrical Schematics
HP module EVK hardware user guide – XM112, XB112 LH112 3.2.2 Electrical Schematics Please find the electrical schematics of the XM112 below. Page 25 of 41 2022-08-25 © 2018 Acconeer – All rights reserved...
Page 29: Bill Of Material
HP module EVK hardware user guide – XM112, XB112 LH112 3.2.3 Bill of Material Table 9 shows the BOM for the XM112. Table 9 The BOM for XM112 Component Ref. Specification QTY Value Comment C3,C8,C10,C12,C31 1/UF/K/10V/X5R/1005 C1,C2,C4,C9,C11,C13, 100/NF/K/50V/X7R/1005 100nF C22,C23,C27C28,C29,...
Page 30: Component Placement Drawing
HP module EVK hardware user guide – XM112, XB112 LH112 3.2.4 Component Placement Drawing The component placement drawing of XM112 is found below. Top side Bottom side: Page 30 of 41 © 2018 by Acconeer – All rights reserved 2022-08-25...
Page 32: Pinning
HP module EVK hardware user guide – XM112, XB112 LH112 3.2.5 Pinning 4 shows the pinout of the XM112 connector J1. Table 10 The pinout of the XM112 connector J1. Pin Number Signal Pin Number Signal SPI_CLK SPI_MOSI SPI_MISO MCU_GPIO...
Page 33: Lens Evaluation Kit Lh112
3.3.1 Overview The LH112 lens evaluation kit is an accessory for the XM112/XB112 evaluation kit. The lenses can be used to increase sensor performance. The lenses increase signal strength by focusing the beam width of the radiated EM-waves and thereby concentrating the emitted power. The lens kit is sold separately from XM112 and XB112.
Page 34 HP module EVK hardware user guide – XM112, XB112 LH112 Both lenses can be fitted in the holder in two different positions, D1 or D2. The cover is only used in the D1 position. The two positions will give you slightly different performance. Performance results can be found in the next section.
Page 35: Lens Performance
HP module EVK hardware user guide – XM112, XB112 LH112 3.3.3 Lens Performance The transmitted electromagnetic waves from the Acconeer sensor has different divergence for the E-plane and H-plane. When mounted in front of the sensor the lenses affect the signal strength as well as the spread of the signal.
Page 36: Flashing Of Xm112 Via Usb-Uart Interface
Step 1: The SAM E70 CPU have a ROM boot loader that is used during the software update. In order to enter this boot mode the internal flash must be erased with the following sequence: 1. Connect the XB112 together with XM112 to your PC with a micro USB cable to the “USB1/Power/UART0” connector 2.
Page 37 HP module EVK hardware user guide – XM112, XB112 LH112 A progress dialog is shown showing the current progress: When the flash is completed a new dialog is shown: Press “OK” and exit the BOSSA application. In order to start the new software, press the “NRST”...
Page 38: Safety
HP module EVK hardware user guide – XM112, XB112 LH112 5 Safety Electrostatic precautions Please take electrostatic precautions, including using ground straps, when using the EVK or any of its components. An electrostatic discharge could damage the device. Page 38 of 41 ©...
Page 39: Regulatory Information
HP module EVK hardware user guide – XM112, XB112 LH112 6 Regulatory Information Acconeer have no plans to certify the XM112/XB112 EVK, it is only for evaluation purposes. Regulatory Compliance for XM112: Refer to XM112 datasheet. Regulatory Compliance for A111: Refer to A111 datasheet.
Page 40: Revision History
HP module EVK hardware user guide – XM112, XB112 LH112 7 Revision History Date Revision Changes 2018-12-19 Original version 2021-05-03 2022-08-25 ISO14001 updates. Updated chapter “Regulatory Information”. Page 40 of 41 © 2018 by Acconeer – All rights reserved 2022-08-25...
Page 41: Disclaimer
LH112 8 Disclaimer The information herein is believed to be correct as of the date issued. Acconeer AB (“Acconeer”) will not be responsible for damages of any nature resulting from the use or reliance upon the information contained herein. Acconeer makes no warranties, expressed or implied, of merchantability or fitness for a particular purpose or course of performance or usage of trade.
