1.3 Specifications

The specifications listed in this section are generalized for this equipment. Welker can modify the equipment according to your
company's needs. Please note that the specifications may vary depending on the customization of your equipment.
Application
Products Sampled
Materials of Construction
Maximum Allowable
Operating Pressure
Fast Loop Connection
Sample Outlet Connection
Motor Housing Actuation Ports
Utility Requirement
Sample Volume
Features
Options
5
IOM-224 MODEL: INLOOP™ ACE
Table 1: inLoop™ ACE Specifications
Bypass Sampling
Liquids Compatible With the Materials of Construction (See Figure 1)
316/316L Stainless Steel Wetted Parts, Anodized Aluminum Non-Wetted Parts,
PTFE, and Viton®
Others Available
FNPT or VCO: 1480 psig @ -20 °F to 100 °F (102 barg @ -28 °C to 37 °C)
150 ANSI Stainless Steel: 275 psig @ -20 °F to 100 °F (18 barg @ -28 °C to 37 °C)
300 ANSI Stainless Steel: 720 psig @ -20 °F to 100 °F (49 barg @ -28 °C to 37 °C)
600 ANSI Stainless Steel: 1440 psig @ -20 °F to 100 °F (99 barg @ -28 °C to 37 °C)
1" FNPT (Standard)
1" VCO Fittings
1" – 150, 300, or 600 ANSI Flanges
¼" FNPT
¼" FNPT
½" FNPT
³⁄₈" FNPT (Standard)
Hydraulic or Pneumatic Supply for Motor Operation: 5–200 psig (0.3–13.7 barg)
0.5–5 cc (Adjustable)
External Sample Volume Adjustment
Internal Inlet Check Valve
Internal Outlet Check Valve
External Sand Relief
Panel Mounting Bracket
Purge With Valve

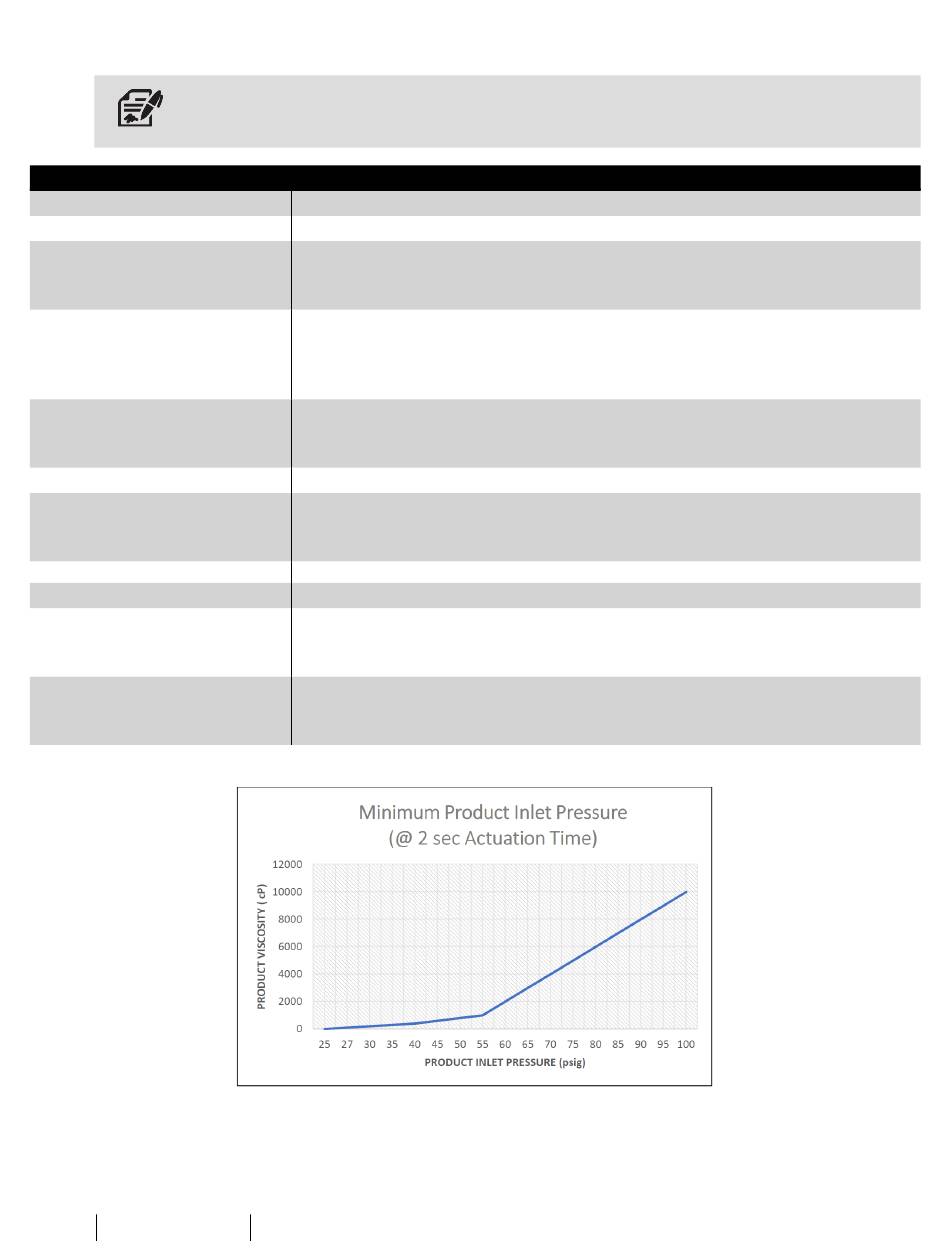

Figure 1: Minimum Product Inlet Pressure Graph
