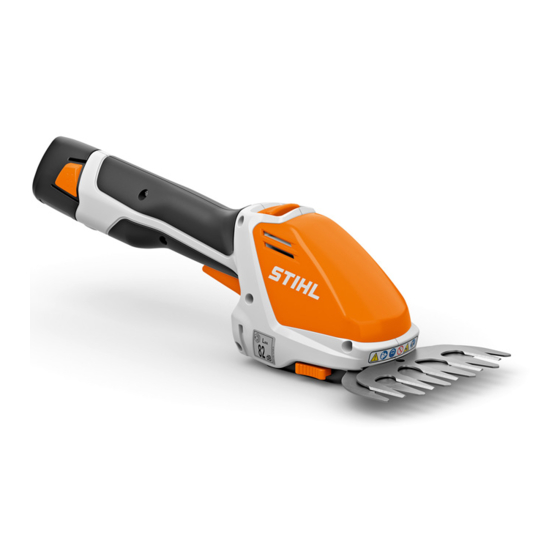

STIHL HSA 26
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSA 26 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stihl HSA 26

Summary of Contents for Stihl HSA 26

  • Page 1 STIHL HSA 26 Instruction Manual...

  • Page 3: Table Of Contents

    English Contents 8.1 Fitting the Battery ........16 Introduction .

  • Page 4: Introduction

    19.2 Shrub Shear Blades, Grass Shear Blades ..25 19.3 STIHL AS Battery ........25 Thank you for choosing STIHL.

  • Page 5: Warning Notices In Text

    English 3 Overview Warning Notices in Text 3 Overview DANGER This notice refers to risks which result in serious or fatal Shrub Shears, Battery and Charger injury. ► Serious or fatal injuries can be avoided by taking the precautions mentioned. WARNING This notice refers to risks which can result in serious or fatal injury.

  • Page 6: Shrub Shear Blade And Grass Shear Blade

    English 3 Overview 6 Button 3 Grass shear blade, cutting blades Activates the LEDs on the shrub shears. The cutting blades cut grass. 7 LEDs 4 Blade Scabbard Indicate battery’s state of charge and malfunctions. Helps protect user from contact with the grass shear blade.

  • Page 7: Safety Precautions

    Do not touch moving cutting blades. WARNING ￭ Batteries and chargers not approved for the shrub shears by STIHL may cause a fire or explosion. This can result in Observe safety notices on flying debris and take serious or fatal injuries and damage to property.

  • Page 8: The Operator

    If the user’s physical, ► If you have any queries: Contact a STIHL servicing sensory or mental ability is restricted, he dealer for assistance. Clothing and Equipment WARNING ￭...

  • Page 9: Work Area And Surroundings

    English 4 Safety Precautions ￭ Dust can be whipped up during operation: Whipped up ￭ The shrub shears are not waterproof. Working in the rain dust can damage the respiratory passages and cause or a damp location may result in an electric shock. This allergic reactions.

  • Page 10: Safe Condition

    – The shrub shear blade or grass shear blade is properly ► Keep bystanders, children and animals away from the mounted. work area. – Only original STIHL accessories designed for these shrub ► Make sure that children cannot play with shears are fitted. the charger.
  • Page 11 ► Replace worn or damaged labels. ￭ The battery cannot function safely if it is not in safe ► If you have any queries: Contact a STIHL servicing condition. There is a risk of serious injury to persons. dealer for assistance.

  • Page 12: Operation

    This can result in serious injuries and damage to property. ￭ The user cannot concentrate on the work in certain ► Stop work, remove the battery and contact your STIHL situations. The user may stumble, fall and be seriously servicing dealer for assistance.

  • Page 13: Charging

    English 4 Safety Precautions DANGER ► Insert the plug of the connecting cable or extension cable in a properly installed fused wall outlet with ￭ Working near live electric cables can result in accidental ground contact. contact with and damage to the cutting blades. This can ►...

  • Page 14: Transporting

    English 4 Safety Precautions ￭ The extension cable becomes hot during operation. If the ► If no bag is supplied with the battery: Secure the shrub heat cannot dissipate, it may cause a fire. shears with lashing straps, belts or a net to prevent turnover and movement.

  • Page 15: Storing

    English 4 Safety Precautions 4.11 Storing ► Store the battery at a temperature between - 20°C and + 70°C. 4.11.1 Shrub Shears WARNING 4.11.3 Charger WARNING ￭ Children are not aware of and cannot assess the dangers of shrub shears and can be seriously injured. ￭...

  • Page 16: Preparing Shrub Shears For Operation

    If the shrub shears, cutting blades, battery or ► If 3 LEDs flash red while you are checking the controls: charger are not cleaned correctly, components may no Remove the battery and contact your STIHL dealer for longer function properly or safety devices may be assistance.

  • Page 17: Charging The Battery

    40-60% time. For specified charging times see 20-40% www.stihl.com/charging-times. The charging process starts automatically when the plug is inserted in a wall outlet and 0-20% the battery is fitted in the charger. The charger switches itself off automatically when the battery is fully charged.

  • Page 18: Assembling The Shrub Shears

    English 7 Assembling the Shrub Shears 7 Assembling the Shrub Shears Fitting and Removing the Cutting Blades 7.1.1 Fitting the Shrub Shear Blade or Grass Shear Blade The shrub shear blade and grass shear blade are fitted on the shrub shears in the same way. ►...

  • Page 19: Removing The Battery

    ► Wait until the cutting blades come to a complete standstill after about 1 second. ► If the cutting blades continue to run after about 1 second: Remove the battery and contact your STIHL servicing dealer. There is a malfunction in the shrub shears.

  • Page 20: Testing The Battery

    The LEDs glow or flash. 0 - 10° ► If the LEDs do not glow or flash: Do not use your shrub shears or battery and contact your STIHL dealer for ► Swing the shrub shears from the bottom upwards in an arc assistance.

  • Page 21: After Finishing Work

    14.2 Storing the Battery ► Pack the battery in the bag supplied. STIHL recommends that you store the battery with a charge ► If no bag is supplied with the battery: Pack the battery so between 40% and 60% (2 LEDs glow green).

  • Page 22: Storing The Charger

    ► Switch off the shrub shears and remove the battery. – Battery is in non-conductive packaging. ► Clean the shrub shears with a damp cloth or STIHL resin – Battery is in a temperature range between - 20°C and + solvent.
  • Page 23 ► Use a damp cloth to remove the filing dust. ► Sharpen the remaining cutting edges. ► Spray both sides of shrub shear blades with STIHL resin ► Use a damp cloth to remove the filing dust. solvent. ► Spray both sides of grass shear blades with STIHL resin ►...

  • Page 24: Repairing

    The shrub shears, cutting blades, battery and charger are not user serviceable. ► If the shrub shears are damaged: Do not use your shrub shears and contact your STIHL servicing dealer. ► If the cutting blades are damaged: Replace the cutting blades.

  • Page 25: Troubleshooting

    Shrub shears or battery ► Allow shrub shears or battery to dry. damp. Cutting blades do not run ► Spray both sides of blades with STIHL resin freely. solvent. ► If shrub shears still do not start when switched on: Do not use the shrub shears and contact your STIHL servicing dealer.

  • Page 26: Troubleshooting Charger

    ► Clean contacts on charger. battery. ► Fit the battery. There is a malfunction in ► Do not use the charger and contact your STIHL the charger. dealer for assistance. There is a malfunction in ► Do not use the battery and contact your STIHL the battery.

  • Page 27: Specifications

    For battery life see www.stihl.com/battery-life. – Permissible temperature range for operation and storage: - 20°C and + 50°C 19.2 Shrub Shear Blades, Grass Shear Blades – Maximum energy content of approved STIHL AS battery: 12.5 Ah Shrub shear blades For charging times see www.stihl.com/charging-times.

  • Page 28: Noise And Vibration Data

    STIHL EN 60745-2-15: 69 dB(A) accessories. – Sound power level L measured according to EN 60745- STIHL recommends the use of original STIHL replacement 2-15: 80 dB(A) parts and accessories. – Vibration level a measured according to EN 60745-15- Original STIHL replacement parts and original STIHL 15: 1 m/s²...

  • Page 29: Stihl Al 1 Charger Conformity Notice

    Directive 2000/14/EC, Annex V. The safety precautions and warnings on avoiding an electric – Measured sound power level: 80 dB(A) shock given under “Electrical Safety” do not apply to STIHL cordless products. – Guaranteed sound power level: 82 dB(A)

  • Page 30: Electrical Safety

    English 23 General Power Tool Safety Warnings 23.3 Electrical safety Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites a) Power tool plugs must match the outlet. Never modify the accidents.

  • Page 31: Battery Tool Use And Care

    English 23 General Power Tool Safety Warnings e) Maintain power tools and accessories with care. Check for e) Do not use a battery pack or tool that is damaged or misalignment or binding of moving parts, breakage of modified. Damaged or modified batteries may exhibit parts and any other condition that may affect the power unpredictable behaviour resulting in fire, explosion or risk tool's operation.
  • Page 32 0458-601-8321-A www.stihl.com *04586018321A* 0458-601-8321-A...
