SMA Sunny Island 6.0H System Description
Multicluster systems with stand-alone grid or increased self-consumption and battery-backup function
Hide thumbs
Also See for Sunny Island 6.0H:
- Quick reference manual (298 pages) ,
- Operating manual (128 pages) ,
- Installation manual (156 pages)
Table of Contents
Related Manuals for SMA Sunny Island 6.0H
Summary of Contents for SMA Sunny Island 6.0H

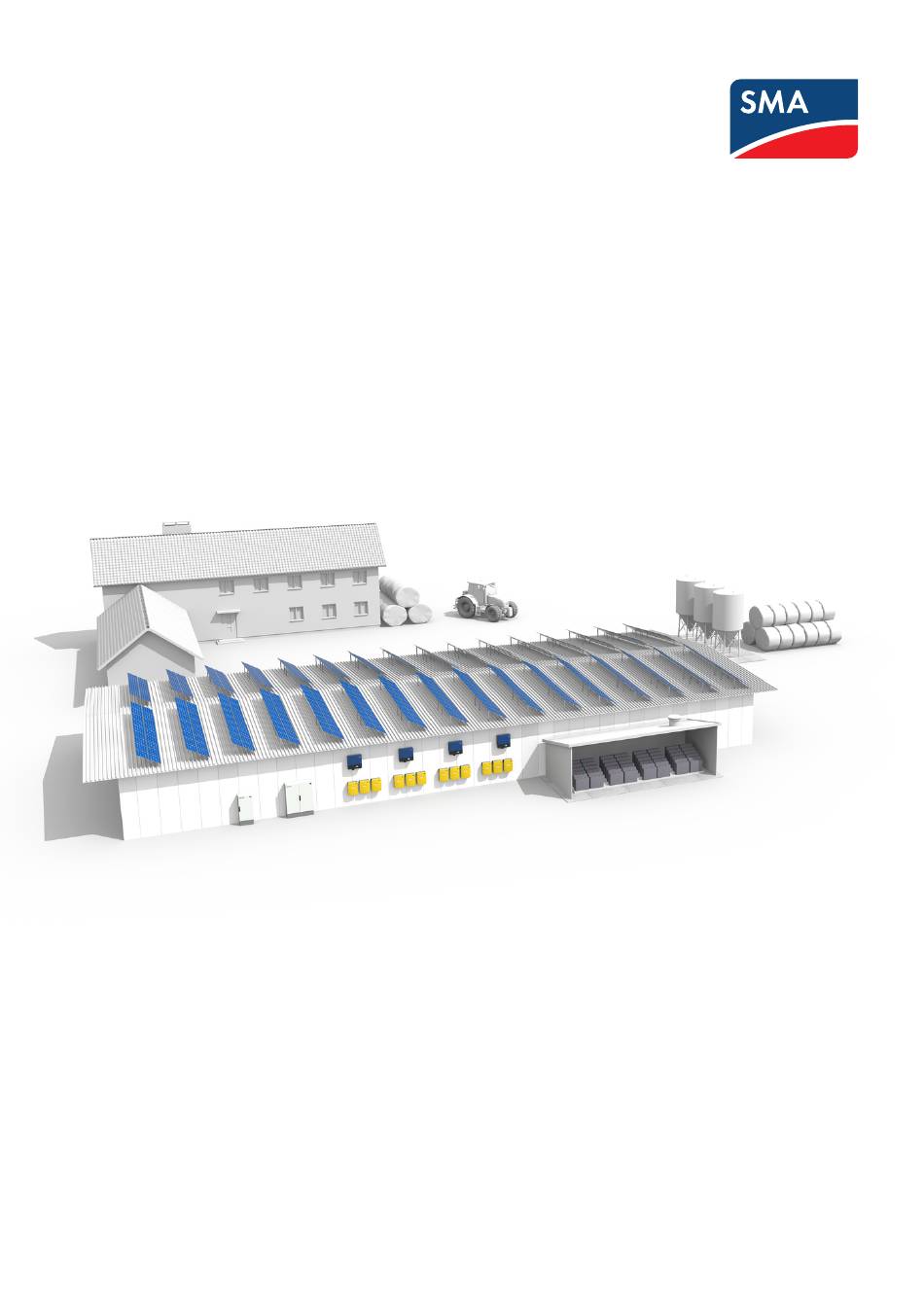

- Page 1 System Description Multicluster Systems with Stand-Alone Grid or Increased Self-Consumption and Battery-Backup Function Sunny Island 6.0H / 8.0H and Multicluster-Box 12 / Grid-Connect-Box 12 ENGLISH SI44M-80H-13-MC-IA-en-10 | Version 1.0...
- Page 2 Legal Provisions The information contained in these documents is the property of SMA Solar Technology AG. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior written permission of SMA Solar Technology AG.
-
Page 3: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents Information on this Document..................... Validity ................................Target Group ..............................Content and Structure of this Document......................Levels of Warning Messages.......................... Symbols in the Document..........................Typographies in the Document ........................Designation in the document .......................... -
Page 4: Information On This Document
1 Information on this Document SMA Solar Technology AG 1 Information on this Document Validity This document is valid for multicluster systems with stand-alone grid or increased self-consumption and battery-backup function, in which the following device types are used: • SI6.0H-13 (Sunny Island 6.0H) from firmware version 1.04.xx.R •... -
Page 5: Symbols In The Document
SMA Solar Technology AG 1 Information on this Document Symbols in the Document Symbol Explanation Information that is important for a specific topic or goal, but is not safety-relevant Indicates a requirement for meeting a specific goal ☐ Desired result ☑... -
Page 6: Additional Information
Sunny Boy, Sunny Tripower PV inverter Sunny Island 6.0H / 8.0H Sunny Island, battery inverter Additional Information For more information, please go to www.SMA-Solar.com. Title and information content Type of information Mounting, installation, commissioning, operation, configuration, troubleshooting Operating manual and decommissioning of the inverter "Parameters and Measured Values"... -
Page 7: Safety
The AC sources in the multicluster system must be suitable for stand-alone mode with Sunny Island (for PV inverters see planning guidelines "Design of Off-Grid Systems with Sunny Island Devices" at www.SMA-Solar.com). The maximum output power of the AC sources in a stand-alone grid must be observed (see the operating manual of the Sunny Island). -
Page 8: Important Safety Instructions
Alterations to the SMA products, e.g., changes or modifications, are only permitted with the express written permission of SMA Solar Technology AG. Unauthorized alterations will void guarantee and warranty claims and in most cases terminate the operating license. SMA Solar Technology AG shall not be held liable for any damage caused by such changes. - Page 9 SMA Solar Technology AG 2 Safety DANGER Danger to life due to electric shock in case of overvoltages and unsuitable loads Overvoltages of up to 1500 V can occur in the stand-alone grid and in the battery-backup grid. If the loads are not suitable for these overvoltages or are not safe to operate, a voltage that poses a danger to life may be present on accessible parts or cables.
- Page 10 2 Safety SMA Solar Technology AG WARNING Danger to life from electric shock due to circuit breakers that cannot be tripped In off-grid systems and battery-backup systems, the Sunny Island can only trip circuit breakers up to a certain tripping characteristic. Circuit breakers with a higher operating current cannot be tripped. Under fault conditions, a voltage that poses a danger to life may be present on accessible parts for several seconds.
-
Page 11: Battery Safety Information
Sunny Portal or the use of FTP push. High costs for the Internet connection can be the result. • SMA Solar Technology AG recommends using an Internet flat rate. The inverter supports different firmware versions that are suitable for different systems. - Page 12 • Ensure that the lithium-ion batteries are approved for use with the Sunny Island (see technical information “List of Approved Batteries” at www.SMA-Solar.com). • If no lithium-ion batteries approved for the inverter can be used, lead-acid batteries can be used.
- Page 13 SMA Solar Technology AG 2 Safety CAUTION Risk of burns due to hot battery components Improper battery connection may result in excessively high transition resistances. Excessive transition resistances give rise to localized heat build-up. • Ensure that all pole connectors are connected with the connecting torque specified by the battery manufacturer.
-
Page 14: Functions And Design
3 Functions and Design SMA Solar Technology AG 3 Functions and Design Design of a Multicluster-Box GRID-CONNECT- UTILITY PV INVERTER GRID MULTICLUSTER-BOX LOADS GENERATOR 3-wire cable 5-wire cable DC-- Communication optional Main Cluster Extension Cluster Figure 1: Principle of a multicluster system with Multicluster-Box and Grid-Connect-Box The Multicluster-Box is the main AC distribution board in a multicluster system. -
Page 15: Structures Of A Multicluster System
SMA Solar Technology AG 3 Functions and Design Structures of a Multicluster System 3.2.1 Structures for Off-Grid Systems Multicluster-Box only with Generator PV SYSTEM MULTICLUSTER-BOX GENERATOR LOAD MAIN EXTENSION EXTENSION CLUSTER CLUSTER 1 CLUSTER 3 Figure 2: Principle of a multicluster system with Multicluster-Box and generator If only the generator as external energy source is connected to the Multicluster-Box, the multicluster system must be configured via the installation assistant for Island mode. - Page 16 3 Functions and Design SMA Solar Technology AG The Grid-Connect-Box enables the connection of a multicluster system to utility grids and generators. Multicluster systems with Grid-Connect-Box may not be connected to utility grids that require compliance with the European gird connection conditions in accordance with Regulation (EU) 2016/631 establishing a network code (also known as RfG).
-
Page 17: Structure For Systems With Increased Self-Consumption And Battery-Backup Function
This means that overcharging can be reliably prevented and that the battery can be fully charged regularly. The available charge energy is used optimally at all times (see technical information "Battery Management" at www.SMA-Solar.com). Generator Management The Sunny Island can synchronize with a generator and connect directly, if necessary. -
Page 18: Off-Grid System Requirements
A generator current control ensures that the generator always remains at the optimum operating point. The generator management allows the use of generators that have a low output power in proportion to the nominal load (see technical document "Sunny Island Generator - Whitepaper" at www.SMA-Solar.com) Load Control The load control enables control of the AC sources in stand-alone grids, control of a generator, and the specific disconnection of loads. -
Page 19: Multicluster System With Increased Self-Consumption And Battery-Backup Function
SMA Solar Technology AG 3 Functions and Design The Sunny Island inverter offers the following functions for multicluster systems with stand-alone grid via two multifunction relays (see installation manual of the Sunny Island inverter): Function Description Controlling PV arrays A multifunction relay activates if a PV array request is received from the Sunny Is- land inverter's generator management system. -
Page 20: Requirements Of Vde Application Guide 2510-2
(see the technical information “List of Approved Batteries” at www.SMA-Solar.com). If products are used that have not been approved by SMA Solar Technology AG, the installer is deemed to be the manufacturer of the system. -
Page 21: Circuitry Of Multicluster Systems
SMA Solar Technology AG 4 Circuitry of Multicluster Systems 4 Circuitry of Multicluster Systems Connecting the Master in the Main Cluster NO C NO C Relay 1 Relay 2 F G H I Figure 6: Connecting the master in the main cluster... - Page 22 4 Circuitry of Multicluster Systems SMA Solar Technology AG Position Designation Description / information Measuring cable of the battery Sunny Island: connection BatTmp temperature sensor You only have to connect a battery temperature sensor if lead-acid batteries are used. Mount the battery temperature sensor in the middle of the battery- storage system, in the upper third of the battery cell.
-
Page 23: Connecting Slave 1 In The Main Cluster
SMA Solar Technology AG 4 Circuitry of Multicluster Systems Position Designation Description / information Measuring cable Sunny Island: terminal BackupVtgCur Multicluster Box: terminal Mstr./L1 Openings in the cable support Unused openings in the cable support sleeves of the Sunny Island sleeves must be sealed (see operating manual of the Sunny Island). - Page 24 4 Circuitry of Multicluster Systems SMA Solar Technology AG Position Designation Description / information DC+ cable Battery connection Conductor cross-section: from 50 mm to 95 mm DC- cable Cable diameters: 14 mm to 25 mm Torque: 12 Nm Measuring cable Sunny Island: terminal BackupVtgCur Multicluster-Box: terminal Slv.1/L2 Data cable for the in- Sunny Island: terminal ComSyncIn...
-
Page 25: Connecting Slave 2 In The Main Cluster
SMA Solar Technology AG 4 Circuitry of Multicluster Systems Connecting Slave 2 in the Main Cluster NO C NO C Relay 1 Relay 2 Figure 8: Connecting slave 2 in the main cluster Position Designation Description / information AC power cable Sunny Island: connection to AC2 Gen/Grid terminals L, N and grounding... -
Page 26: Connecting The Sunny Island Inverters In Extension Clusters
4 Circuitry of Multicluster Systems SMA Solar Technology AG Position Designation Description / information Data cable for the in- Sunny Island: terminal ComSyncIn ternal communication Slave 1: terminal ComSyncOut in the cluster Data cable for the in- Terminal ComSyncOut ternal communication A data cable must be connected to the battery only when lithium-ion batteries are in the cluster used. -
Page 27: Commissioning
VDE-AR-N 4105:2011-08. Inverters using a firmware version ≥ 3.00.00.R are only suitable for systems that are operated in parallel with the utility grid (e.g. SMA Flexible Storage System). The firmware version ≥ 3.00.00.R complies with VDE-AR-N 4105-11:2018, EN50549-1:2018, C10/11:2018 and EREC G98:2018 / G99:2018 of the European grid connection conditions in accordance with Regulation (EU) 2016/631 for establishing a network code (also known as RfG), valid from April 27, 2019 within the EU. -
Page 28: Procedure When Commissioning A System With Increased Self-Consumption And Battery-Backup Function
VDE-AR-N 4105:2011-08. Inverters using a firmware version ≥ 3.00.00.R are only suitable for systems that are operated in parallel with the utility grid (e.g. SMA Flexible Storage System). The firmware version ≥ 3.00.00.R complies with VDE-AR-N 4105-11:2018, EN50549-1:2018, C10/11:2018 and EREC G98:2018 / G99:2018 of the European grid connection conditions in accordance with Regulation (EU) 2016/631 for establishing a network code (also known as RfG), valid from April 27, 2019 within the EU. -
Page 29: Testing Communication In The Multicluster System
Perform basic configuration of the inverter. Please note, that the per- Sunny Island operating manual sonal SMA Grid Guard code for changing the grid-relevant parame- ters must be available after completion of the first ten operating hours (see "Application for the SMA Grid Guard code" available at www.SMA-Solar.com). -
Page 30: Commissioning An Off-Grid System
5 Commissioning SMA Solar Technology AG • Log in as Installer. • Set the parameter Activation of communication test between the clusters to Off. Commissioning an Off-Grid System 5.3.1 Commissioning the Multifunction Relays In multicluster systems with MC-BOX-12.3-20, multifunction relays 1 and 2 in the master of the main cluster and multifunction relay 2 in slave 1 of the main cluster are set permanently. -
Page 31: Adjusting The Configuration Of The Pv Inverters
When using lead-acid batteries, the Sunny Island carries out full and equalization charges on a regular basis (see technical information "Battery Management" at www.SMA-Solar.com). As a result, the service life of the battery is increased. During full and equalization charges, the intermediate storage of PV energy is deactivated and electricity may have to be purchased to perform the full and equalization charges. -
Page 32: Registering The Multicluster System In Sunny Portal
5. In order to receive service assignments for the Sunny Island system, all system data must be recorded in the information sheet for Sunny Island systems and made available to Service (for information sheet see www.SMA- Solar.com). -
Page 33: Contact
SMA Solar Technology AG 6 Contact 6 Contact If you have technical problems with our products, please contact the SMA Service Line. The following data is required in order to provide you with the necessary assistance: • Type of system installed (e.g. three-phase single-cluster system) •... - Page 34 6 Contact SMA Solar Technology AG España SMA Ibérica Tecnología Solar, S.L.U. United Kingdom SMA Solar UK Ltd. Portugal Barcelona Milton Keynes +34 935 63 50 99 +44 1908 304899 SMA Online Service Center: SMA Online Service Center: www.SMA-Service.com www.SMA-Service.com Italia SMA Italia S.r.l. Australia SMA Australia Pty Ltd.
- Page 36 www.SMA-Solar.com...
