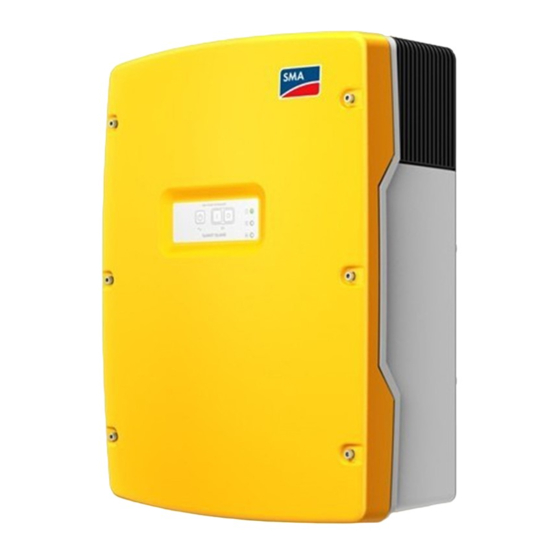

SMA SUNNY ISLAND 3.0M Installation And Quick Reference Manual
Off-grid systems
Hide thumbs
Also See for SUNNY ISLAND 3.0M:
- Operating manual (164 pages) ,
- Installation manual (112 pages) ,
- Quick reference manual (44 pages)
Related Manuals for SMA SUNNY ISLAND 3.0M
Summary of Contents for SMA SUNNY ISLAND 3.0M
- Page 1 Installation - Quick Reference Guide Off-Grid Systems Off-Grid Systems with SUNNY ISLAND 3.0M / 4.4M / 6.0H / 8.0H Off-Grid-IS-en-30 | Version 3.0 ENGLISH...
- Page 2 The information contained in this document is the property of SMA Solar Technology AG. Publishing its content, either partially or in full, requires the written permission of SMA Solar Technology AG. Any internal company copying of the document for the purposes of evaluating the product or its correct implementation is allowed and does not require permission.
-
Page 3: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents Information on this Document........... . . 5 1.1 Validity . - Page 4 Table of Contents SMA Solar Technology AG 7.6 Testing the Load Shedding............. . 41 7.7 Commissioning the Sunny WebBox .
-
Page 5: Information On This Document
1.1 Validity This document is valid for off-grid systems with the following Sunny Island inverter device types: • SI3.0M-11 (Sunny Island 3.0M) from firmware version 3.2 • SI4.4M-11 (Sunny Island 4.4M) from firmware version 3.2 • SI6.0H-11 (Sunny Island 6.0H) from firmware version 3.1 •... -
Page 6: Symbols For Information
1 Information on this Document SMA Solar Technology AG 1.5 Symbols for Information Symbol Explanation Indicates a hazardous situation which, if not avoided, will result in death or serious injury Indicates a hazardous situation which, if not avoided, can result in death or serious injury... -
Page 7: Safety
The AC sources must be suitable for stand-alone mode with Sunny Island (see Technical Information "PV Inverters in Off-Grid Systems" at www.SMA-Solar.com). The maximum output power of the AC sources in a stand-alone grid must be observed (see the Sunny Island inverter installation manual). -
Page 8: Safety Precautions
The list of lithium-ion batteries approved for the Sunny Island is updated constantly (see Technical Information "List of approved lithium-ion batteries" at www.SMA-Solar.com). • If no lithium-ion batteries approved for Sunny Island can be used, you should use lead-acid batteries. - Page 9 SMA Solar Technology AG 2 Safety Danger to life from electric shock due to live voltage High voltages are present in the off-grid system. When covers (e.g., an enclosure lid) are removed, live components can be touched, which can result in death or serious injury due to electric shock.
- Page 10 2 Safety SMA Solar Technology AG Risk of burns due to short-circuit currents on the disconnected Sunny Island The capacitors at the DC connection input area store energy. After the battery is isolated from the Sunny Island, battery voltage is still temporarily present at the DC terminal. A short circuit at the DC terminal can lead to burns and may damage the Sunny Island.
-
Page 11: Information On Off-Grid Systems And System Description
A generator current control ensures that the generator always remains at the optimum operating point. The generator management allows the use of generators that have a low output power in proportion to the nominal load (see Technical Document "Sunny Island - Generator Whitepaper" at www.SMA-Solar.com) Load Control The load control enables control of the AC sources in stand-alone grids, control of a generator, and the specific disconnection of loads. -
Page 12: Modular Design
3 Information on Off-Grid Systems and System Description SMA Solar Technology AG 3.2 Modular Design 3.2.1 Single System Figure 1: Block circuit diagram In a single system, one Sunny Island forms a single-phase stand-alone grid. 3.2.2 Single-Cluster System (Single-Phase) Required device types for single-phase single-cluster systems In single-phase single-cluster systems, the Sunny Island inverters must be device type SI6.0H-11 or SI8.0H-11. -
Page 13: Single-Cluster System (Three-Phase)
SMA Solar Technology AG 3 Information on Off-Grid Systems and System Description In a single-phase single-cluster system, up to three Sunny Island inverters are connected to one battery forming a cluster. The Sunny Island inverters are connected on the AC side to the same line conductor. If the device types within the cluster are different, the master must be an SI8.0H-11. -
Page 14: Multicluster System
• Check with the battery manufacturer whether the battery is suitable for off-grid systems with Sunny Island inverters. Pay special attention to the ampacity. Recommendations for battery capacity SMA Solar Technology AG recommends the following minimum battery capacities. • Minimum battery capacity per Sunny Island inverter: – SI3.0M-11: 100 Ah –... -
Page 15: Optional Devices And Functions
SMA Solar Technology AG 3 Information on Off-Grid Systems and System Description Information on clusters Device types within a cluster A cluster can consist of the following device types: Device type Potential device types within a cluster Explanation SI3.0M-11 SI3.0M-11 A cluster must consist of the same device types. - Page 16 3 Information on Off-Grid Systems and System Description SMA Solar Technology AG Device Description Battery current sensor Shunt for measuring the battery current A battery current sensor is required in off-grid systems with DC loads or with charge controllers from third-party suppliers (see Section 2.1 "Intended Use", page 7).
-
Page 17: Single System
SMA Solar Technology AG 4 Single System 4 Single System 4.1 Circuitry Overview Figure 5: Single system Installation - Quick Reference Guide Off-Grid-IS-en-30... -
Page 18: Connecting The Sunny Island
4 Single System SMA Solar Technology AG 4.2 Connecting the Sunny Island Figure 6: Connecting the Sunny Island inverter Position Designation Description/information AC power cable of the Sunny Island: connection to AC1 Loads/SunnyBoys terminals L, N, stand-alone grid and PE Conductor cross-section: maximum 16 mm²... -
Page 19: Connecting Rs485 To The Sunny Webbox
SMA Solar Technology AG 4 Single System Position Designation Description/information Measuring cable of the Sunny Island: BatTmp terminal battery temperature sensor You only have to connect a battery temperature sensor if lead-acid batteries are used. Mount the battery temperature sensor in the middle of the battery terminal, in the upper third of the battery cell. -
Page 20: Basic Configuration Of The Sunny Island Inverter
4 Single System SMA Solar Technology AG Position Designation Description/information SMACOM Terminal RS485 2: Signal Data+ (A), color coding of the insulated conductor: green with white stripes 5: Signal GND, color coding of the insulated conductor: orange with white stripes 7: Signal Data −... - Page 21 SMA Solar Technology AG 4 Single System When the Sunny Remote Control shows <Init System>, press and hold the button on the Sunny Remote Control. ☑ An acoustic signal sounds three times and the Sunny Remote Control displays the Quick Configuration Guide.
- Page 22 4 Single System SMA Solar Technology AG Set the battery type: VRLA: lead-acid battery with electrolyte absorbed in glass LiIon_Ext-BMS: lithium-ion battery mat or immobilized in gel FLA: lead-acid battery with liquid electrolyte Set the nominal voltage of the battery.
- Page 23 SMA Solar Technology AG 4 Single System Set the maximum generator current for continuous operation. Confirm the basic configuration with Y. Decline Setup Slaves ? with N. ☑ The basic configuration is complete. If an SD memory card is inserted into the Sunny Remote Control, the message Do not remove MMC/SD memory card ...
-
Page 24: Single-Cluster System
5 Single-Cluster System SMA Solar Technology AG 5 Single-Cluster System 5.1 Circuitry Overview Single-Phase Single-Cluster System Required device types for single-phase single-cluster systems In single-phase single-cluster systems, the Sunny Island inverters must be device type SI6.0H-11 or SI8.0H-11. Figure 8: Circuitry overview single-phase single-cluster system, only possible with SI6.0H-11 or SI8.0H-11... -
Page 25: Circuitry Overview Three-Phase Single-Cluster System
SMA Solar Technology AG 5 Single-Cluster System 5.2 Circuitry Overview Three-Phase Single-Cluster System Figure 9: Circuitry overview three-phase single-cluster Installation - Quick Reference Guide Off-Grid-IS-en-30... -
Page 26: Connecting The Sunny Island Inverter
5 Single-Cluster System SMA Solar Technology AG 5.3 Connecting the Sunny Island inverter 5.3.1 Connecting the Master Figure 10: Connecting the master in the single-cluster system Position Designation Description/information AC power cable of the Sunny Island: connection to AC1 Loads/SunnyBoys terminals L, N,... - Page 27 SMA Solar Technology AG 5 Single-Cluster System Position Designation Description/information AC power cable of the Sunny Island: terminal AC2 Gen/Grid terminals L, N, and PE generator Generator: connect master to line conductor L1. Conductor cross-section: maximum 16 mm² For a single-phase system, the cable length and the conductor cross-section must be identical on each Sunny Island.
-
Page 28: Connecting The Slaves
5 Single-Cluster System SMA Solar Technology AG 5.3.2 Connecting the Slaves Figure 11: Connecting the slaves in a single-cluster system Position Designation Description/information AC power cable of the Sunny Island: connection to AC1 Loads/SunnyBoys terminals L, N, and PE stand-alone grid Stand-alone grid: Connect slave 1 to line conductor L2, and connect slave 2 to line conductor L3. -
Page 29: Connecting Rs485 To The Sunny Webbox
SMA Solar Technology AG 5 Single-Cluster System Position Designation Description/information DC+ cable Battery terminal For a single-phase system, the cable length and the conductor cross-section DC − cable must be identical on each Sunny Island. Conductor cross-section: 50 mm² to 95 mm²... -
Page 30: Basic Configuration
5 Single-Cluster System SMA Solar Technology AG 5.5 Basic Configuration Damage to the battery due to incorrect settings The battery parameters influence the charging behavior of the Sunny Island inverter. The battery can be damaged by incorrect settings of the parameters for battery type, nominal voltage, and capacity. - Page 31 SMA Solar Technology AG 5 Single-Cluster System Turn the button on the Sunny Remote Control and select New System. Press the button. This confirms your selection of New System. ☑ An entry confirmation prompt appears. Set Y and press the button. This confirms your selection.
- Page 32 5 Single-Cluster System SMA Solar Technology AG Set the nominal voltage of the battery. Set the battery capacity for ten-hour electric discharge (for determining the battery capacity, see the Sunny Island inverter installation manual). Set the battery capacity for ten-hour electric discharge (for determining the battery capacity, see the Sunny Island inverter installation manual).
- Page 33 SMA Solar Technology AG 5 Single-Cluster System Set the maximum generator current per line conductor for continuous operation. Confirm the basic configuration with Y. Confirm Setup Slaves ? with Y. Wait until the upper LED (inverter LED) on slave 1 is flashing and the Sunny Remote Control is displaying To identify Slave1, press Tss on the Slv.
-
Page 34: Multicluster System
6 Multicluster System SMA Solar Technology AG 6 Multicluster System 6.1 Circuitry Overview and Connection of the Sunny Island Inverters Required device types for multicluster systems In multicluster systems, the Sunny Island inverters must be device type SI6.0H-11 or SI8.0H-11. - Page 35 SMA Solar Technology AG 6 Multicluster System When the Sunny Remote Control shows <Init System>, press and hold the button on the Sunny Remote Control. ☑ An acoustic signal sounds three times and the Sunny Remote Control displays the Quick Configuration Guide.
- Page 36 6 Multicluster System SMA Solar Technology AG Set the battery type: VRLA: lead-acid battery with electrolyte absorbed in glass LiIon_Ext-BMS: lithium-ion battery mat or immobilized in gel FLA: lead-acid battery with liquid electrolyte Set the nominal voltage of the battery.
- Page 37 SMA Solar Technology AG 6 Multicluster System Set the type of cluster: MainClst: The cluster is a main cluster ExtnClst: The cluster is an extension cluster Set the device type of the Multicluster Box. Tip: The device Set the address of the extension cluster, e.g., type is indicated on the type label of the Multicluster Box.
- Page 38 6 Multicluster System SMA Solar Technology AG ☑ The basic configuration is complete. If an SD memory card is inserted into the Sunny Remote Control, the message Do not remove MMC/SD card ... is displayed and the SD memory card is integrated in the file system.
-
Page 39: Commissioning
SMA Solar Technology AG 7 Commissioning 7 Commissioning 7.1 Switching to Installer Mode The installer mode is protected with an installer password. The installer password changes constantly and must be re-calculated every time. Switch to installer mode on the Sunny Remote Control in accordance with the following procedure. -
Page 40: Starting The System
7 Commissioning SMA Solar Technology AG 7.3 Starting the System Requirement: ☐ All Sunny Island inverters must be switched on. ☐ The circuit breakers for the AC sources in the stand-alone grid must be switched off in the AC distribution board. -
Page 41: Testing The Generator
SMA Solar Technology AG 7 Commissioning 7.5 Testing the Generator Requirement: ☐ The Sunny Island must be in operation (see Section 7.3 "Starting the System", page 40). Procedure: 1. Switch on the protective devices for the generator in the AC distribution board. -
Page 42: Commissioning The Sunny Webbox
1. Commission the PV system (see PV inverter documentation). 2. If the SMA PV inverters are not configured for stand-alone mode ex works, configure the country standard or country data set of the PV inverters for stand-alone mode (see the PV inverter documentation). -
Page 43: Contact
8 Contact 8 Contact If you have technical problems with our products, contact the SMA Service Line. We need the following information in order to provide you with the necessary assistance: • Type of system installed (e.g., three-phase single-cluster system) •... - Page 44 South Africa SMA Solar Technology 08600 SUNNY South Africa Pty Ltd. (08600 78669) Centurion (Pretoria) International: +27 (12) 643 1785 United Kingdom SMA Solar UK Ltd. +44 1908 304899 Milton Keynes Ελλάδα SMA Hellas AE 801 222 9 222 Αθήνα International: +30 212 222 9 222 България...
- Page 45 SMA Solar Technology AG 8 Contact +971 2 234-6177 SMA Middle East LLC Other countries International SMA Service Line Toll free worldwide: 00800 SMA SERVICE (+800 762 7378423) Niestetal Installation - Quick Reference Guide Off-Grid-IS-en-30...
- Page 48 SMA Solar Technology www.SMA-Solar.com...
