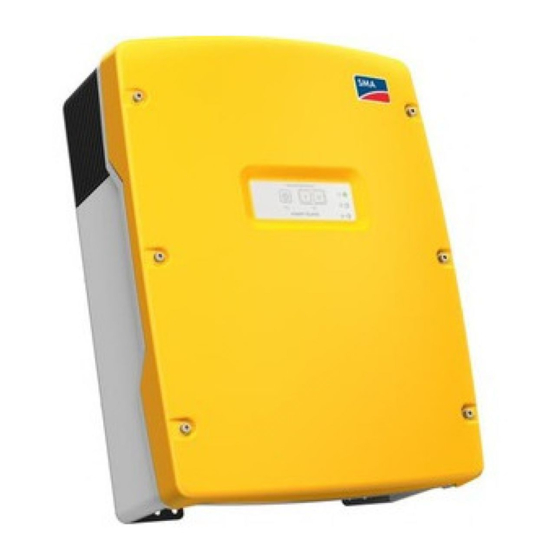

SMA SUNNY ISLAND 3.0M Quick Reference Manual

Hide thumbs Also See for SUNNY ISLAND 3.0M:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Reference Guide
Off-Grid Systems with
SUNNY ISLAND 3.0M / 4.4M / 6.0H / 8.0H
ENGLISH
Off-Grid-IS-en-33 | Version 3.3

Advertisement

Table of Contents
loading

Related Manuals for SMA SUNNY ISLAND 3.0M

Summary of Contents for SMA SUNNY ISLAND 3.0M

  • Page 1 Quick Reference Guide Off-Grid Systems with SUNNY ISLAND 3.0M / 4.4M / 6.0H / 8.0H ENGLISH Off-Grid-IS-en-33 | Version 3.3...
  • Page 2 The information contained in these documents is property of SMA Solar Technology AG. Any publication, whether in whole or in part, requires prior written approval by SMA Solar Technology AG. Internal reproduction used solely for the purpose of product evaluation or other proper use is allowed and does not require prior approval.

  • Page 3: Table Of Contents

    Table of Contents SMA Solar Technology AG Table of Contents Information on this Document ..................... Validity ................................5 Content and Structure of this Document......................5 Target group ..............................5 Additional Information............................5 Symbols................................6 Typographies ..............................6 Nomenclature ..............................6 Safety.............................
  • Page 4 Table of Contents SMA Solar Technology AG Complete Commissioning..........................41 Contact............................42 Off-Grid-IS-en-33 Quick Reference Guide...

  • Page 5: Information On This Document

    • Knowledge of and adherence to the local standards and directives • Knowledge of and compliance with the documentation of the Sunny Island inverter with all safety information Additional Information Links to additional information can be found at www.SMA-Solar.com: Document title and content Document type "SUNNY ISLAND System Guide - System Solutions for your Off-Grid Electricity...

  • Page 6: Symbols

    Complete designation Designation in this document Sunny Boy, Sunny Mini Central, Sunny Tripower PV inverter Battery charge controllers not supplied by SMA Solar Technology AG Charge controllers from a third- party supplier Grid-forming generators such as electric generators or utility grids External energy sources Sunny Explorer, Sunny Portal, Sunny Home Manager...

  • Page 7: Safety

    Alterations to the product, e.g. changes or modifications, are only permitted with the express written permission of SMA Solar Technology AG. Unauthorized alterations will void guarantee and warranty claims and in most cases terminate the operating license. SMA Solar Technology AG shall not be held liable for any damage caused by such changes.
  • Page 8 2 Safety SMA Solar Technology AG To prevent personal injury and property damage and to ensure long-term operation of the product, read this section carefully and observe all safety information at all times. Danger to life from electric shock due to live voltage High voltages are present in the off-grid system.
  • Page 9 • Ensure that the lithium-ion batteries are approved for use with the Sunny Island (see technical information "List of Approved Lithium-Ion Batteries" at www.SMA-Solar.com). • If no lithium-ion batteries approved for the Sunny Island can be used, lead-acid batteries can be used.
  • Page 10 Note that the battery charging behavior names used by SMA Solar Technology AG and the battery manufacturer may, in some cases, differ in meaning (for the battery charging behavior of the Sunny Island inverter, see technical information "List of Approved Lithium-Ion Batteries"...

  • Page 11: Information And System Description

    A generator current control ensures that the generator always remains at the optimum operating point. The generator management allows the use of generators that have a low output power in proportion to the nominal load (see technical document "Sunny Island Generator - Whitepaper" at www.SMA-Solar.com) Load Control The load control enables control of the AC sources in stand-alone grids, control of a generator, and the specific disconnection of loads.

  • Page 12: Modular Design

    3 Information and System Description SMA Solar Technology AG Modular Design 3.2.1 Single System Figure 1: Principle of a single system In a single system, one Sunny Island forms a single-phase stand-alone grid. 3.2.2 Single-Cluster System (Single-Phase) Required device types for single-phase single-cluster systems In single-phase single-cluster systems, the Sunny Island inverters must be of device type SI6.0H-11 or SI8.0H-11.

  • Page 13: Single-Cluster System (Three-Phase)

    3 Information and System Description SMA Solar Technology AG In a single-phase single-cluster system up to three Sunny Island inverters are connected to one battery forming a cluster. The Sunny Island inverters are connected on the AC side to the same line conductor. If the device types within the cluster are different, the master must be an SI8.0H-11.

  • Page 14: Information On Off-Grid Systems

    Figure 4: Principle of a Multicluster-Box Multicluster systems consist of several three-phase clusters. The individual clusters must be connected to a Multicluster- Box. The Multicluster-Box is an SMA multicluster technology device for off-grid systems, battery-backup systems and systems for increased self-consumption.
  • Page 15 3 Information and System Description SMA Solar Technology AG The sum of the individual battery capacities is the total minimum battery capacity and applies to a ten-hour electric discharge (C10). The minimum battery capacity must be observed to ensure stable operation of the system.

  • Page 16: Optional Devices And Functions

    3 Information and System Description SMA Solar Technology AG Information on the PV System Maximum PV system power In off-grid systems, the maximum PV system power depends on the total power of the Sunny Island inverters. • Maximum output power of the PV system per SI3.0M-11: 4600 W •...
  • Page 17 3 Information and System Description SMA Solar Technology AG Function Description Display of operating states and You can connect message devices to the multifunction relays to allow operating warning messages states and warning messages from the Sunny Island inverter to be output. One of...

  • Page 18: Single System

    4 Single System SMA Solar Technology AG 4 Single System Circuitry Overview Figure 5: Single System Off-Grid-IS-en-33 Quick Reference Guide...

  • Page 19: Connecting The Sunny Island Inverter

    4 Single System SMA Solar Technology AG Connecting the Sunny Island Inverter Figure 6: Connecting the Sunny Island inverter Position Designation Description / information AC power cable of the stand-alone Sunny Island: connection to AC1 Loads/SunnyBoys grid terminals L, N, and grounding conductor Conductor cross-section: maximum 16 mm AC power cable of the generator Sunny Island: connection to AC2 Gen/Grid terminals L,...
  • Page 20 4 Single System SMA Solar Technology AG Position Designation Description / information DC+ cable Battery connection Conductor cross-section: from 50 mm to 95 mm DC- cable Cable diameters: 14 mm to 25 mm Torque: 12 Nm Control cable, generator Sunny Island: terminals Relay1 NO and Relay1 C Conductor cross-section: from 0.2 mm to 2.5 mm...

  • Page 21: Basic Configuration Of The Sunny Island

    Note that the battery charging behavior names used by SMA Solar Technology AG and the battery manufacturer may, in some cases, differ in meaning (for the battery charging behavior of the Sunny Island inverter, see technical information "List of Approved Lithium-Ion Batteries"...
  • Page 22 4 Single System SMA Solar Technology AG 8. Set the date. Setup new system 003#04 <Set>Ã 01.02.2016 [d.m.y.] 9. Set the time. Setup new system 003#05 <Set>Ã 06:24:24 [hhmmss] 10. Set OffGrid. Setup new system 003#06 <Set>Ã ApplSel OnGrid 11. Set the battery type:...
  • Page 23 4 Single System SMA Solar Technology AG Energy source Setting No generator is con- • Set PvOnly. nected to terminal AC2 of the Sunny Is- land inverter. One generator is • Set Gen. connected to termi- • Set the maximum generator current...

  • Page 24: Single-Cluster System

    5 Single-Cluster System SMA Solar Technology AG 5 Single-Cluster System Circuitry Overview Single-Phase Single-Cluster System Required device types for single-phase single-cluster systems In single-phase single-cluster systems, the Sunny Island inverters must be of device type SI6.0H-11 or SI8.0H-11. Off-Grid-IS-en-33 Quick Reference Guide...
  • Page 25 5 Single-Cluster System SMA Solar Technology AG Figure 7: Circuitry overview single-phase single-cluster system, only possible with SI6.0H-11 or SI8.0H-11 Quick Reference Guide Off-Grid-IS-en-33...

  • Page 26: Circuitry Overview Three-Phase Single-Cluster System

    5 Single-Cluster System SMA Solar Technology AG Circuitry Overview Three-Phase Single-Cluster System Figure 8: Circuitry overview three-phase single-cluster Off-Grid-IS-en-33 Quick Reference Guide...

  • Page 27: Connecting Sunny Island Inverters

    5 Single-Cluster System SMA Solar Technology AG Connecting Sunny Island Inverters 5.3.1 Connecting the Master Figure 9: Connecting the master in the single-cluster system Position Designation Description / information AC power cable of the stand- Sunny Island: connection to AC1 Loads/SunnyBoys termi- alone grid nals L, N, and grounding conductor Stand-alone grid: connect master to line conductor L1.
  • Page 28 5 Single-Cluster System SMA Solar Technology AG Position Designation Description / information AC power cable of the generator Sunny Island: connection to AC2 Gen/Grid terminals L, N and grounding conductor Generator: connect master to line conductor L1. Conductor cross-section: maximum 16 mm For a single-phase system, the cable length and the conductor cross-section must be identical on each Sunny Island.

  • Page 29: Connecting The Slaves

    5 Single-Cluster System SMA Solar Technology AG Position Designation Description / information Data cable for the internal com- Sunny Island: terminal ComSync Out munication in the cluster Only with lithium-ion batteries: additional data cable on termi- nal ComSync In The communication bus must be equipped with a terminator on both ends.

  • Page 30: Performing Basic Configuration Of The Sunny Island

    Note that the battery charging behavior names used by SMA Solar Technology AG and the battery manufacturer may, in some cases, differ in meaning (for the battery charging behavior of the Sunny Island inverter, see technical information "List of Approved Lithium-Ion Batteries"...
  • Page 31 5 Single-Cluster System SMA Solar Technology AG ☐ All circuit breakers in the AC distribution board must be open. Thus, the Sunny Island is not connected to an AC source. ☐ The Sunny Remote Control must be connected to the master. This determines which Sunny Island is the master during the basic configuration.
  • Page 32 5 Single-Cluster System SMA Solar Technology AG Battery type Settings LiIon_Ext-BMS: • Set the battery capacity for ten- Setup new system 003#10 <Set>Ã Lithium-ion battery hour electric discharge (for BatCpyNom determining the battery capacity, 166 [Ah] see installation manual of the Sunny Island).
  • Page 33 5 Single-Cluster System SMA Solar Technology AG Energy source Settings One generator is • Set Gen. connected to termi- • Set the maximum generator current Setup new device nal AC2 of the Sun- 003#23 <Set>Ã for continuous operation. ny Island inverter.

  • Page 34: Multicluster System

    Note that the battery charging behavior names used by SMA Solar Technology AG and the battery manufacturer may, in some cases, differ in meaning (for the battery charging behavior of the Sunny Island inverter, see technical information "List of Approved Lithium-Ion Batteries"...
  • Page 35 6 Multicluster System SMA Solar Technology AG 4. When the Sunny Remote Control shows <Init System>, press Boot xxx.xx <Init System>Ã and hold the button on the Sunny Remote Control. xx.xx.xxxx xx:xx:xx ☑ A signal sounds three times and the Sunny Remote Control Select option 001#01 <¿´...
  • Page 36 6 Multicluster System SMA Solar Technology AG 12. Set the grid voltage and power frequency of the stand-alone Setup new system 003#12 <Set>Ã grid: AcVtgFrqTyp 230V_50Hz Setting Description 230V_50Hz Grid voltage 230 V, power frequency 50 Hz Grid voltage 220 V, power frequency 60 Hz 220V_60Hz 13.
  • Page 37 6 Multicluster System SMA Solar Technology AG 18. Press the start-stop button on slave 1. 19. Wait until the inverter LED on slave 2 is flashing and the Sunny Remote Control is displaying To identify Slave2, press Tss on the Slv. 20. Press the start-stop button on slave 2.

  • Page 38: Commissioning

    7 Commissioning SMA Solar Technology AG 7 Commissioning Switching to Installer Mode or Expert Mode The installer mode is protected with an installer password. The installer password changes constantly and must be recalculated every time. Expert mode can be accessed only via installer mode.

  • Page 39: Testing The Battery Current Sensor

    7 Commissioning SMA Solar Technology AG Procedure: • Press the start-stop button on the Sunny Island and hold it until an acoustic signal sounds. Press and hold the button on the Sunny Remote Control until an acoustic signal sounds. ☑ The inverter LED on each Sunny Island is glowing green.

  • Page 40: Testing The Load Shedding

    7 Commissioning SMA Solar Technology AG 3. Close the load-break switch of the generator. ☑ The generator starts. ✖ Does the generator not start? The generator management does not request the generator. The control cable connected does not transmit the start signal.

  • Page 41: Testing Communication In The Multicluster System

    1. Commission the PV system (see PV inverter documentation). 2. If the SMA PV inverters are not configured for stand-alone mode ex works, configure the country standard or country data set of the PV inverters for stand-alone mode (see the PV inverter documentation).
  • Page 42 SMA Solar Technology AG 8 Contact If you have technical problems with our products, please contact the SMA Service Line. We require the following information in order to provide you with the necessary assistance: • Type of system installed (e.g., three-phase single-cluster system) •...
  • Page 43 SMA Solar Technology AG Bulgaria SMA Italia S.r.l. Italia Milano România +39 02 8934-7299 United Arab SMA Middle East LLC India SMA Solar India Pvt. Ltd. Emirates Abu Dhabi Mumbai +971 2234 6177 +91 22 61713888 SMA Solar (Thailand) Co., Ltd. 대한민국 SMA Technology Korea Co., Ltd. 서울...
  • Page 44 www.SMA-Solar.com...

This manual is also suitable for:

Sunny island 4.4mSunny island 6.0hSunny island 8.0h
