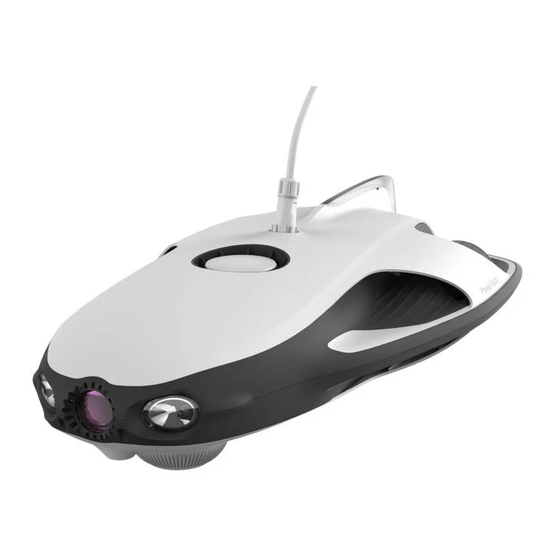

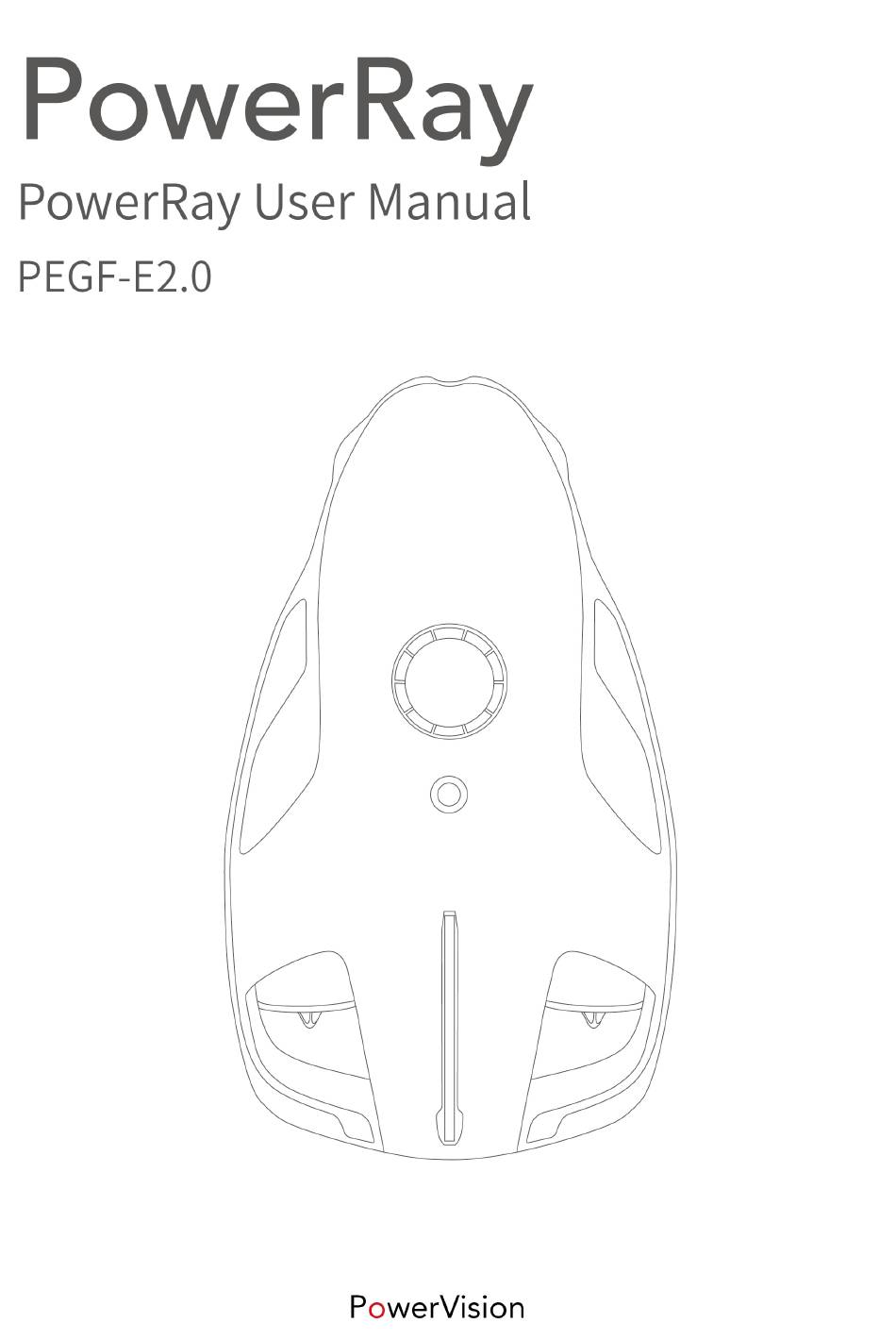

Page 2: Table Of Contents
CONTENTS Product overview Introduction/01 Function highlights/01 List of items/02 Charging and device connector/03 Navigation preparation/03 Activation and navigation/05 PowerRay Body Host overview/06 Body part name/06 Navigation mode/07 Status indicator/08 Battery check/08 Remote controller Remote controller overview/09 Remote controller part name/09... - Page 3 Fish Finder Overview/18 Part name/19 Fish Finder operation/19 Charging/20 Line-towing fishing rig/21 Vision+ APP App download/23 App connection and login/23 App main interface introduction and navigation interface function introduction/24 App motion operation control navigation/26 Photo and video export Mobile device export and share/28 Export videos and photos via Power View/29 Navigation safety...
-
Page 4: Product Overview
Product Overview Introduction PowerRay can be used in freshwater or saltwater environments up to 30 meters underwater. It can realize underwater direction-fixed and depth-fixed navigation. The PowerRay can also shoot, seek fish and assist fishing underwater, and realize real-time image preview and motion control through VR goggles, remote controller and App. - Page 5 VR goggle fishing rig Fish Finder Base station Power adapter charging cable VR goggle headband Power adapter AC PowerRay Pro Vehicle Remote control power cable Communication cable tether Angler version Explorer version Wizard version PowerRay (32G, exclusive PowerRay (32G, include...
-
Page 6: Navigation Preparation/03
Remote control Base station Host PowerSeeker Navigation preparation 1.Open the switch cover of the PowerRay. PowerVisio n 2.Open the bottom cover of the PowerRay, remove the top cover of the Fish Finder, and install the Fish Finder clockwise on the PowerRay. - Page 7 The power is turned on with a prompting sound and a blue light will light up on the tail fin. *Please make sure to tighten the communication cable connected to the PowerRay. 4.Insert the 4-pin end of the communication...
-
Page 8: Activation And Navigation/05
Activation and navigation 1.Turn on the mobile device WIFI, search 2 . O p e n t h e A p p , c o m p l e t e and access the wireless base station registration and log into the App. h o t s p o t : P R A _ S t a t i o n _ x x x . -
Page 9: Powerray Body
PowerRay host Host overview PowerRay can be used in freshwater or saltwater environments up to 30 meters underwater. It can realize underwater direction-fixed and depth-fixed navigation. The equipped 4K camera can achieve 12 Megapixels photos and 4K video shooting. Host part... -
Page 10: Navigation Mode/07
App. The two navigation modes are described as follows: Stable image mode: adjust the angle of the PowerRay and the horizontal plane by the up-and-down joystick and change the view of the PowerRay camera by changing the attitude of the PowerRay, to achieve stable image shooting. -
Page 11: Status Indicator/08
Status indicator Charging Charging: the tail light is slowly flashing light and the head lights are off. Charging completed: the tail light is on solid and the head lights are off. Low battery display When the power is 10%, there’s a low battery alarm and the tail light flickers. To Lock and unlock Lock: tail light flickers for about 1s, and the brightness is set to 15% after locking. -
Page 12: Remote Controller
Remote controller Overview The PowerRay remote controller can be connected to the base station wirelessly, integrating motion control, light adjustment, speed adjustment, photo shooting, video shooting, hook release, depth-fixed control and other functions. Users can easily complete PowerRay operations with the help of the remote controller. -
Page 13: Remote Controller Preparation/10
Remote controller preparation Remote controller preparation 1 .Ta ke o u t t h e sta n d a rd 2.Rotate the button on 3.Clip the phone on the remote controller and the the back of the supported front bracket and make supported mobile device mobile device and pull sure it is clamped. - Page 14 Control and operation In order to prevent accidental joystick control damage to people or equipment, the PowerRay first needs unlock operation to control the propeller through the joystick. After locking, the propeller is not controllable. Unlocking: first dial the left thumbwheel to...
- Page 15 MODE3 MODE4 *The default joystick mode of the remote controller is “MODE 4”. The left joystick controls the PowerRay up/down and left/right turn. The right joystick controls the PowerRay forward/backward. Navigation gear selection: the remote-control switches gears by the gear shift button in...
- Page 16 Speed adjustment gear Electromagnet hook release switch Fish Finder interface switch Mode switch Gear button Electromagnet hook release switch The three gear switches set the three Long press for 2 seconds to switch the hook speed gears of the power system, from release switch.
- Page 17 Battery indicator/wifi connection status light 1. The battery indicator is divided into red, yellow and green light. 2. Battery>30%, green light on. 3. Battery 10%~30%, yellow light on. 4. Battery<10%, red light on. 5. After the WIFI is connected to the base station, the indicator light is on, and different colors will be displayed according to the battery.
-
Page 18: Remote Controller Pairing/15
Remote controller pairing Open Vision+ App, select the remote controller settings, and click on remote controller pairing. In the pop-up interface asks to input 6-bit SSID, enter the SSID of the remote controller. -
Page 19: Base Station
Base station Base station overview he base station is connected to the PowerRay through the communication cable. The remote controller, mobile phone and VR goggle can be connected through the WIFI hotspot of the base station. After connecting, it can control the device, the camera and get real-time images. -
Page 20: Base Station Operation/17
Base station operation Turning on and off: long press the power switch button for 3 seconds the indicator light on, means the power is turned on successfully. Press again for 3 seconds to turn off until the indicator is off. Status indicator battery display：After base station is turned on, check current battery status from based station’s power indicator;... -
Page 21: Fish Finder
Fish Finder Overview PowerRay Fish Finder* can detect fish and terrain within 40m underwater and display it in real time via Vision+. The bottom of the Fish Finder is equipped with the fish luring light to actively attract fish. The Fish Finder can also be removed for independent use with a fishing pole. -
Page 22: Part Name/19
Use of the Fish Finder Use with PowerRay PowerVisio n 1.Open the hatch case at the bottom of the 2.Open Vision+ App, enter PowerRay host, remove the upper case of the Fish control interface, and click “Start Finder, and install it clockwise onto the Navigation”. -
Page 23: Fish Finder Operation/19
3.Click the Fish Finder icon button on the main interface or short press the Fish Finder/camera screen switch button to switch to Fish Finder interface and start to use these. Use Fish Finder alone PowerVisio n 1 . O p e n t h e u p p e r 2.When the three probes of 3.Turn on the mobile device c a s e , t h r e a d t h e... -
Page 24: Line-Towing Fishing Rig/21
Vision+ APP fish finding interface function introduction Line-towing fishing rig Fix the fishing line on the fishing weight magnet and control the PowerRay through the remote controller or Vision+ APP to send the hook to the designated location for fixed delivery. - Page 25 Switch the “Vision+” APP interface to VR mode and follow the prompts to insert the mobile phone into the VR goggle. Fixing plate 1.Put the mobile phone into the fixing plate and push to close the gap of the plate cover. 2.
-
Page 26: Vision+ App
3.Turn on the mobile device WIFI, search and access the wireless base station hotspot: PRA_Station_xxx. Default password: 1234567890. 4.After connecting, enter the PowerRay page which displays successful connection and click to start navigation. *For the first use, the device needs to be activated. For details on how to activate it, see Vison+... -
Page 27: App Main Interface Introduction And Navigation Interface Function Introduction/24
App main interface introduction and navigation interface function introduction PowerRay Main Interface PowerSeeker Main Interface Picture / Video Interface Service Interface... -
Page 29: App Motion Operation Control Navigation/26
Left joystick Right joystick Forward Left turn Right turn Down Backward APP motion operation control navigation Click the settings button on the top right corner. - Page 30 Select control settings-motion mode. Press the motion control icon on the lower right corner to control.
-
Page 31: Photo And Video Export
Photo and video export Mobile device export and share 1. Connect PowerRay, communication cable and wireless base station. Start the device. 2.Turn on the mobile de vice WIFI, search and access wireless base station hotspot : PRA_Station_xxx. Default password: 1234567890. - Page 32 Export videos and photos using PowerView PowerView is a photo and video export tool supporting PowerRay. You can visit the official PowerVision website to download and install the latest version. 1.Connect PowerRay, communication cables and wireless base station. Start the base station.
-
Page 33: Navigation Safety
No throwing the No placing in Propellers cannot rotate Do not touch rotating PowerRay into water high temperature while not in water propellers, otherwise it from high altitude environment may be subject to serious physical injury... - Page 34 China RoHS Name and content of hazardous substances in products Hazardous substance Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Part name (Pb) (Hg) (Cd) chromium biphenyls diphenylethers (Cr6 (PBB) (PBDE) Outer case Circuit board Cable Camera Motor This form is compiled in accordance with SJ/T 11364-2014. O: indicates the content of the hazardous substance in all homogeneous materials of the part is below the limit requirement of GB/T 26572.
Need help?
Do you have a question about the PowerRay and is the answer not in the manual?
Questions and answers
My Vision Plus app is not working
The Vision Plus app is not working with the PowerVision PowerRay because the newer versions of the app, such as version 2.0.0, require a user login that locks the interface. Users do not have access to this login, which prevents the app from functioning properly with the drone. Only older versions like 1.6.6 work without requiring the login.
