instructions carefully and familiarize yourself with the different parts.
please contact Atlantic Furniture at service@atlanticfurniture.com or 1-800-955-3726 / M-F 9:00-5:00 EST
Phillips head
screwdriver
Customer supplied
NOTE: WE INCLUDE SPARE HARDWARE IN CASE THE JCB, WASHER, WOODEN DOWEL, SHELF CLIP, ALLEN WRENCH
A
WOODEN DOWEL - 16 pcs
Spare - 1 pc
B
JCB M8 X 65mm (2 1/2") - 12 pcs
C
WOOD SCREW (1 1/2") - 12 pcs
D
WOOD SCREW (3/4") - 18 pcs
Spare - 2 pcs

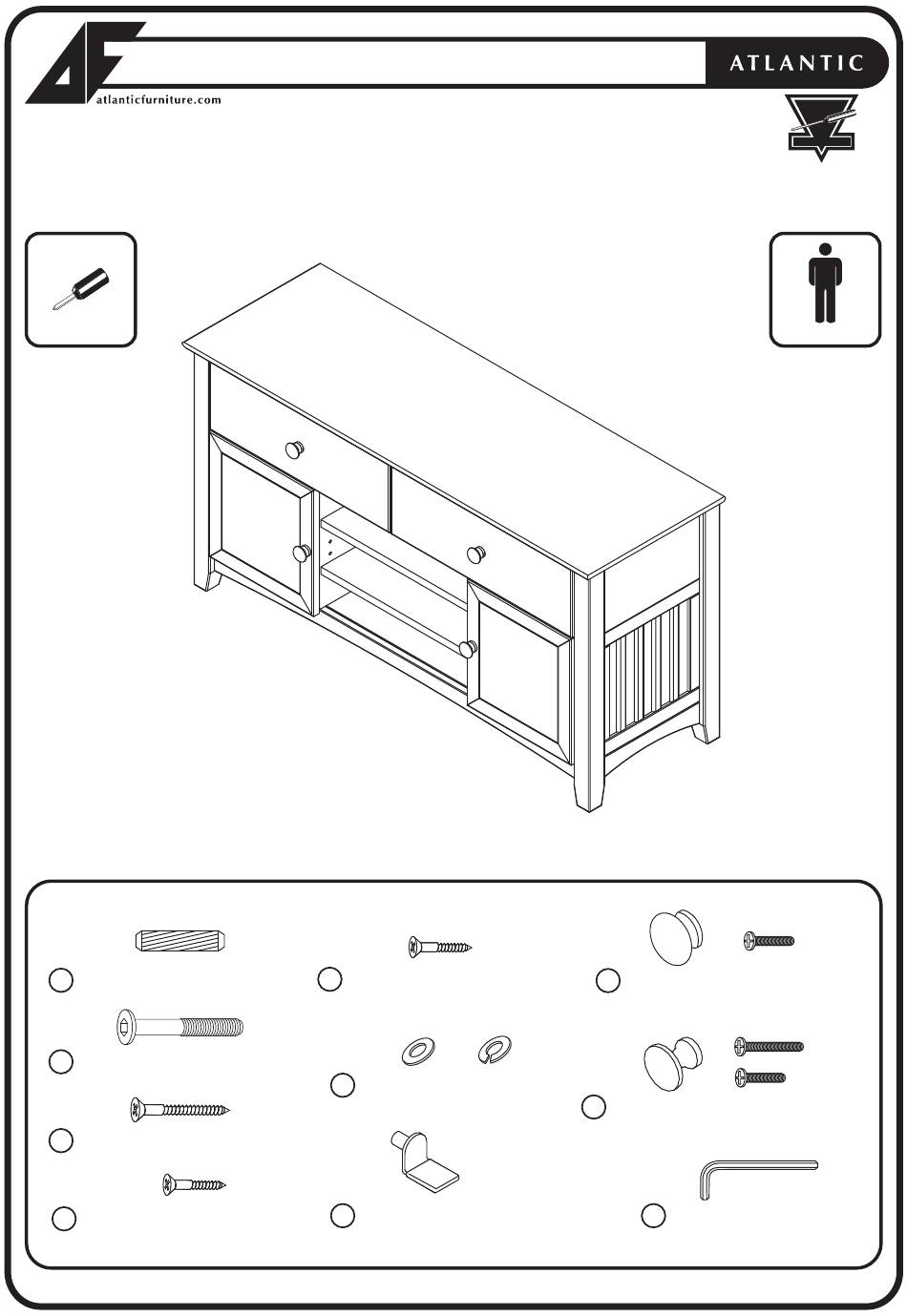

TV TABLE H-7312X
TV TABLE H-7312X
ASSEMBLY INSTRUCTIONS
Before assembling your TV Table, please read through these
ATTENTION! If you receive a damaged or defective item,
OR WOOD SCREW ARE DAMAGED DURING ASSEMBLY.
E
HINGE SCREW (5/8") - 16 pcs
Spare - 1 pc
F
FLAT WASHER - 12 pcs
SPLIT WASHER - 12 pcs
Spare - 1 pc
G
SHELF CLIP - 16 pcs
26 X 50
Spare - 2 pcs
Spare - 2 pcs
Spare - 1 pc
H
WOOD KNOB - 2 pcs
+ 2 ASSEMBLE TO DRAWER
KNOB SCREW 1 3/8" - 2 pcs
I
METAL KNOB - 4 pcs
KNOB SCREW 1 5/8" - 2 pcs
KNOB SCREW 1" - 2 pcs
J
ALLEN WRENCH - 1 pc
Spare - 1 pc
READY
TO
ASSEMBLE
Adult Assembly
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlantic H-7312X
Summary of Contents for Atlantic H-7312X
- Page 1 Before assembling your TV Table, please read through these instructions carefully and familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact Atlantic Furniture at service@atlanticfurniture.com or 1-800-955-3726 / M-F 9:00-5:00 EST Phillips head screwdriver...
- Page 2 Attach the hinge block (06) to side panels (04). Using wood screws (C) tighten with Phillips head screwdriver as shown below. Adult Assembly Phillips head screwdriver Customer supplied WOODEN DOWEL 1 1/2” WOOD SCREW Page 2 of 7 TV TABLE H-7312X...
- Page 3 (F) tighten with Allen wrench (J) as shown below. Do not tighten at this step Adult Assembly FLAT, SPLIT WASHER ALLEN WRENCH STEP 3 Install wooden dowels (A) to the locator holes as shown. Adult Assembly WOODEN DOWEL Page 3 of 7 TV TABLE H-7312X...
- Page 4 (C) tighten with Phillips head screwdriver as shown below. Tighten all JCB at this step. Adult Assembly Phillips head screwdriver Customer supplied 1 1/2” ALLEN WRENCH WOOD SCREW FLAT, SPLIT WASHER Page 4 of 7 TV TABLE H-7312X...
- Page 5 Attach back panels (08). Using wood screws (D) tighten with Phillips head screwdriver as shown below. Phillips head screwdriver Adult Assembly Customer supplied 3/4” WOOD SCREW STEP 7 Install shelf clip (G) as shown below. Adult Assembly SHELF CLIP Page 5 of 7 TV TABLE H-7312X...
- Page 6 Install wood knob (H) or metal knob (I) to the door (09) using knob screws (1 3/8”) tighten with Phillips STEP 9 head screwdriver as shown below. Adult Assembly Phillips head screwdriver Customer supplied WOOD KNOB METAL KNOB Page 6 of 7 TV TABLE H-7312X...
- Page 7 Reinstall the drawers to TV stand as shown below. Adult Assembly Congratulations! Your TV Table is now ready for use. To ensure lasting safety, we recommend that you periodically check that all screws are tight and all parts are secure. Page 7 of 7 TV TABLE H-7312X...
