instructions carefully and familiarize yourself with the different parts.
please contact Atlantic Furniture at service@atlanticfurniture.com or 1-800-955-3726 / M-F 9:00-5:00 EST
Phillips head
screwdriver
Customer supplied
NOTE: WE INCLUDE SPARE HARDWARE IN CASE THE JCB, WASHER, WOODEN DOWEL, SHELF CLIP, ALLEN WRENCH
A
WOODEN DOWEL - 24 pcs
Spare - 1 pc
B
JCB M8 X 55mm (2 1/4") - 12 pcs
C
WOOD SCREW (1 1/2") - 4 pcs
D
WOOD SCREW (1 1/4") - 8 pcs

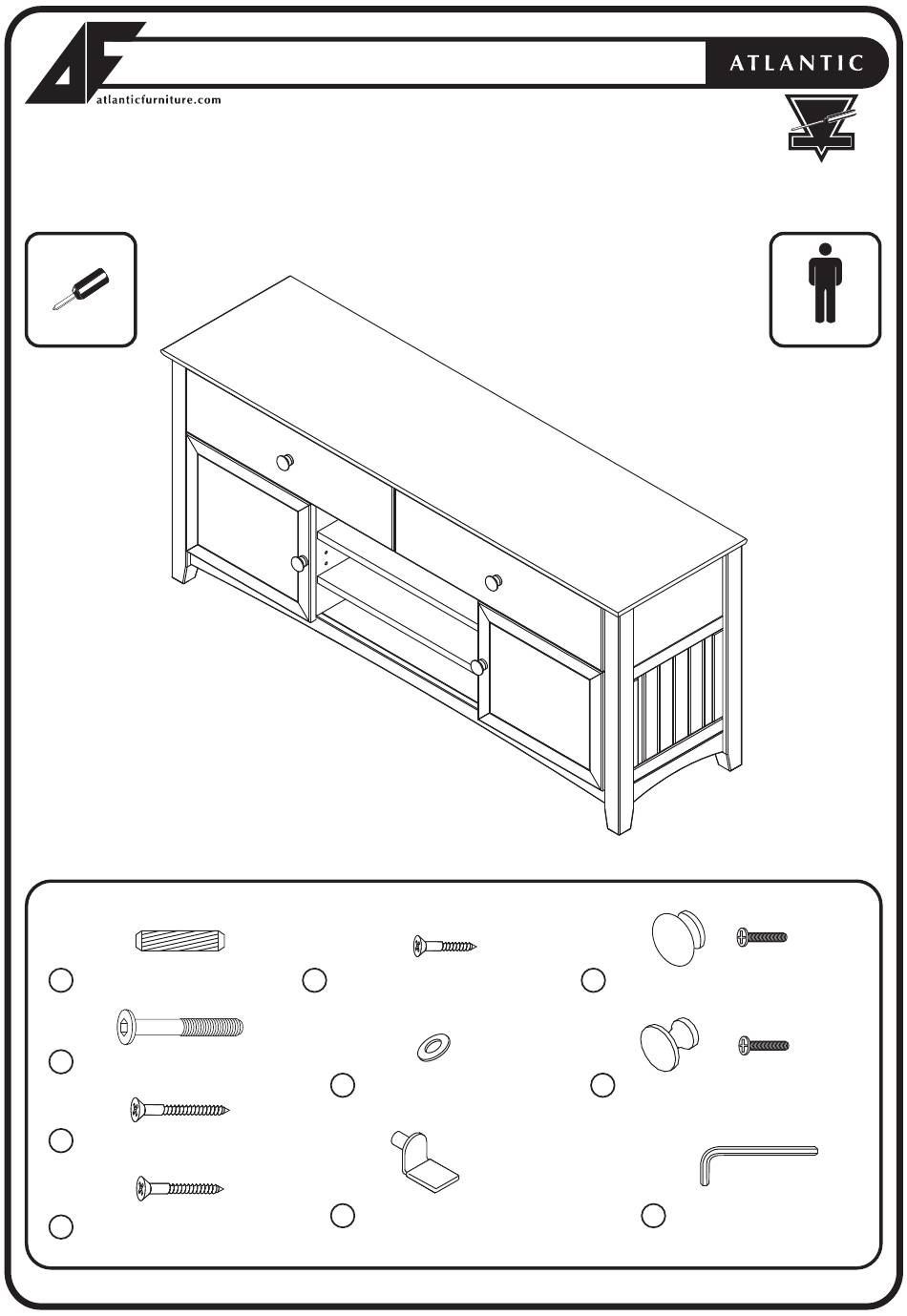

TV TABLE H-7328X
TV TABLE H-7328X
ASSEMBLY INSTRUCTIONS
Before assembling your TV Table, please read through these
ATTENTION! If you receive a damaged or defective item,
OR WOOD SCREW ARE DAMAGED DURING ASSEMBLY.
E
WOOD SCREW (5/8") - 18 pcs
Spare - 1 pc
F
FLAT WASHER- 12 pcs
Spare - 1 pc
G
SHELF CLIP - 16 pcs
Spare - 1 pc
26 X 60
Spare - 2 pcs
Spare - 1 pc
Spare - 1 pc
H
WOOD KNOB - 2 pcs
KNOB SCREW - 2 pcs
I
METAL KNOB - 4 pcs
KNOB SCREW - 4 pcs
J
ALLEN WRENCH - 1 pc
READY
TO
ASSEMBLE
Adult Assembly
Spare - 1 pc
Page 1 of 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atlantic H-7328X
Summary of Contents for Atlantic H-7328X
- Page 1 Before assembling your TV Table, please read through these instructions carefully and familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact Atlantic Furniture at service@atlanticfurniture.com or 1-800-955-3726 / M-F 9:00-5:00 EST Phillips head screwdriver...
-
Page 2: Parts List
Adult Assembly Attach the hinge block (06) to side panels (04). Using wood screws (D) tighten with Phillips head screwdriver as shown below. Phillips head screwdriver WOODEN DOWEL Customer supplied 1 1/4” WOOD SCREW Page 2 of 7 TV TABLE H-7328X... - Page 3 Allen wrench (J) as shown below. Do not tighten at this step Adult Assembly FLAT WASHER ALLEN WRENCH STEP 4 Install wooden dowels (A) to the locator holes as shown. Adult Assembly WOODEN DOWEL Page 3 of 7 TV TABLE H-7328X...
- Page 4 Attach bottom shelf (07). Using JCB (B), flat washer (F) tighten with Allen wrench (J). Using wood screws (C) tighten with Phillips head screwdriver as shown below. Tighten all JCB at this step. Adult Assembly Phillips head screwdriver Customer supplied 1 1/2” ALLEN WRENCH WOOD SCREW FLAT WASHER Page 4 of 7 TV TABLE H-7328X...
- Page 5 Attach back panels (08). Using wood screws (E) tighten with Phillips head screwdriver as shown below. Phillips head screwdriver Adult Assembly Customer supplied 5/8” WOOD SCREW STEP 8 Install shelf clip (G) as shown below. Adult Assembly SHELF CLIP Page 5 of 7 TV TABLE H-7328X...
- Page 6 Install wood knob (H) or metal knob (I) to the door (09) using knob screws tighten with Phillips head screwdriver as shown below. Adult Assembly Phillips head screwdriver Customer supplied WOOD KNOB METAL KNOB Page 6 of 7 TV TABLE H-7328X...
- Page 7 Reinstall the drawers to TV stand as shown below. Adult Assembly Congratulations! Your TV Table is now ready for use. To ensure lasting safety, we recommend that you periodically check that all screws are tight and all parts are secure. Page 7 of 7 TV TABLE H-7328X...
