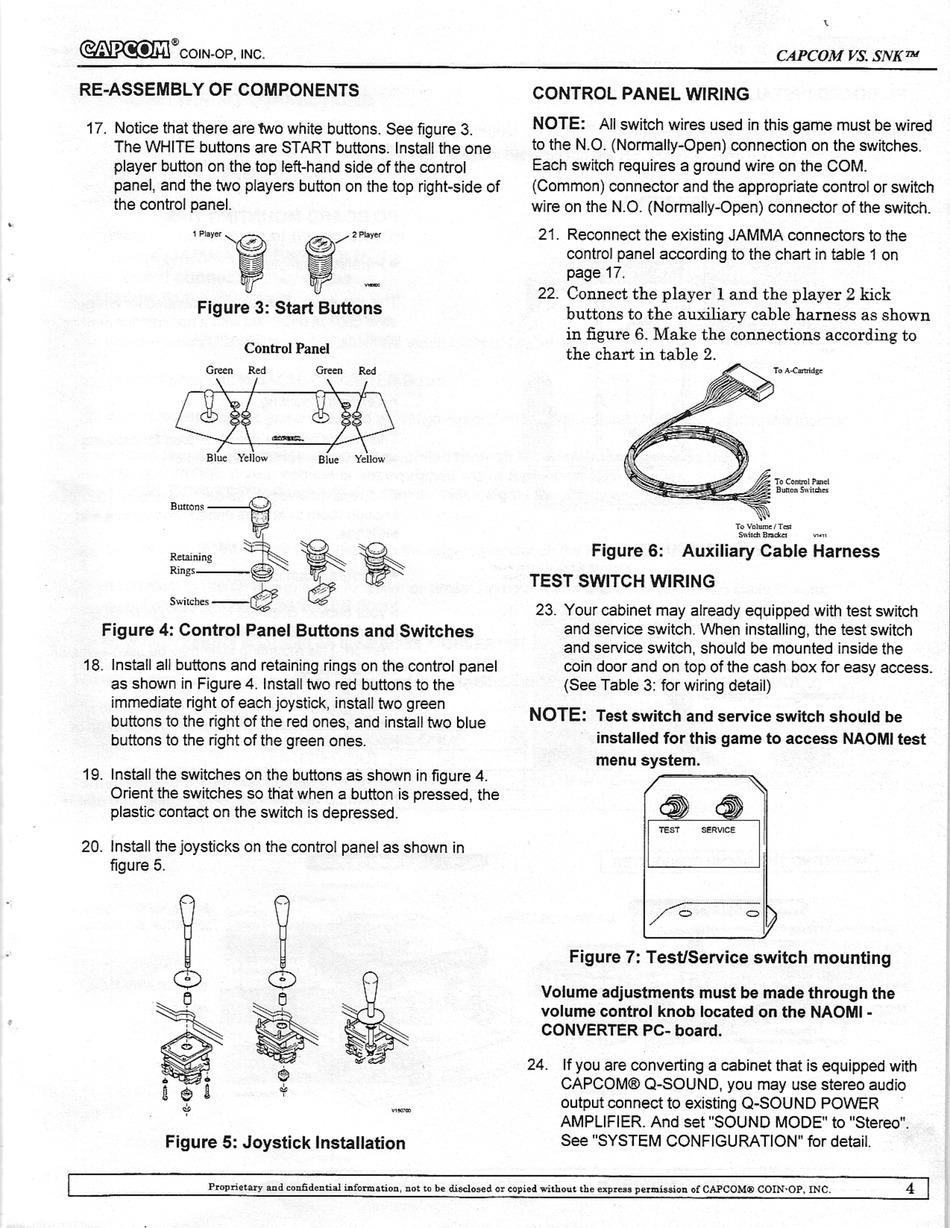

RE-ASSEMBL Y OF COMPONENTS
17.
Notice that there
are two white buttons.
See figure
3.
The
WH
ITE buttons
are
START
buttons.
Install
the one
player
button on the top
left-hand side of the
control
panel, and
the
two players
button on the
top right·side of
the control
panel.
Figure
3:
Start Buttons
Control Panel
Green
Red
Green
Red
11){
-~)p
Bl
ue
Y~IlO)W
81...
Yello ....
Figure 4: Control Panel Buttons and Switches
18.
Install
all buttons and
retaining
rings
on
the control
panel
as shown
in
Figure
4
.
Install
two red
buttons to
the
immediate
rig
ht
of each
joystick,
install
mo green
buttons
to
the right of
the red
ones,
and
install two blue
buttons
to
the
right
of
the green
ones.
19.
Install
the
switches
on
the
buttons
as shown in figure
4
.
Orient the
switches
so
that
when
a
button
is
pressed
,
the
plastic contact on the switch
is
depressed.
20.
Install the
joysticks on the
control
panel
as shown
in
figure
5.
Figure
5:
Joystick Installation
CAPCOM VS. SNK7N
CONTROL PANEL WIRING
NOTE: All
switch wires used in this
game
must be wired
to
the N.O. (Normally·Open) connection on the
switches.
Each
switch
requires
a
ground
wire on
the
COM.
(Common) connector
and
the
appropriate
control or
switch
wi
re on
the
N.O.
(Normally-Open) connector
of the switch.
21.
Reconnect the existing
JAMMA connectors to
the
control panel according
to
the
chart in table
1 on
page
17.
22.
Connect the player
1 and
the
player 2ltick
buttons
to the auxiliary cable harness as
shown
in
figure
6. Make the connections according
to
the chart in
table 2.
Figure
6:
Auxiliary
Cable Harness
TEST SWITCH
WIRING
23
Your
cabinet
may already
equipped
with test switch
and
service switch
.
When
installing,
the test switch
and
service
switch,
shou ld
be mounted
inside
the
coin door
and
on top
of the cash
box
for
easy access.
(See
Table
3:
for wiring
detail)
NOTE:
Test switch and service switch should
be
installed
for this game to access
NAOMI
test
menu system.
/--~
t==J1
Figure
7:
Test/Service
switch
mounting
Volume adjustments must be made through the
volume control
knob
located on the
NAOMI.
CONVERTER PC- board.
24.
If
you
are
converting a
cabinet
that
is equipped
with
CAPCOM®
Q·SOUND,
you
may
use
stereo
audio
output
connect
to
existing
Q·SOUND POWER
AMPLIFIER.
And
set "SOUND
MODE"
to
"Stereo".
See "SYSTEM
CONF IGURATION"
for
detail.
Prop
ri
...
ry
alld
COllfidential
inf"noatioll
.
nollO
be
dieclOH
d"r copi
l
d
' ; Ibout
lb.
up
....
"
.
....
\MiOll
or
CAJ'CO!d®
COIN·OP.
INC
.
4
