COIN-OP,
INC.

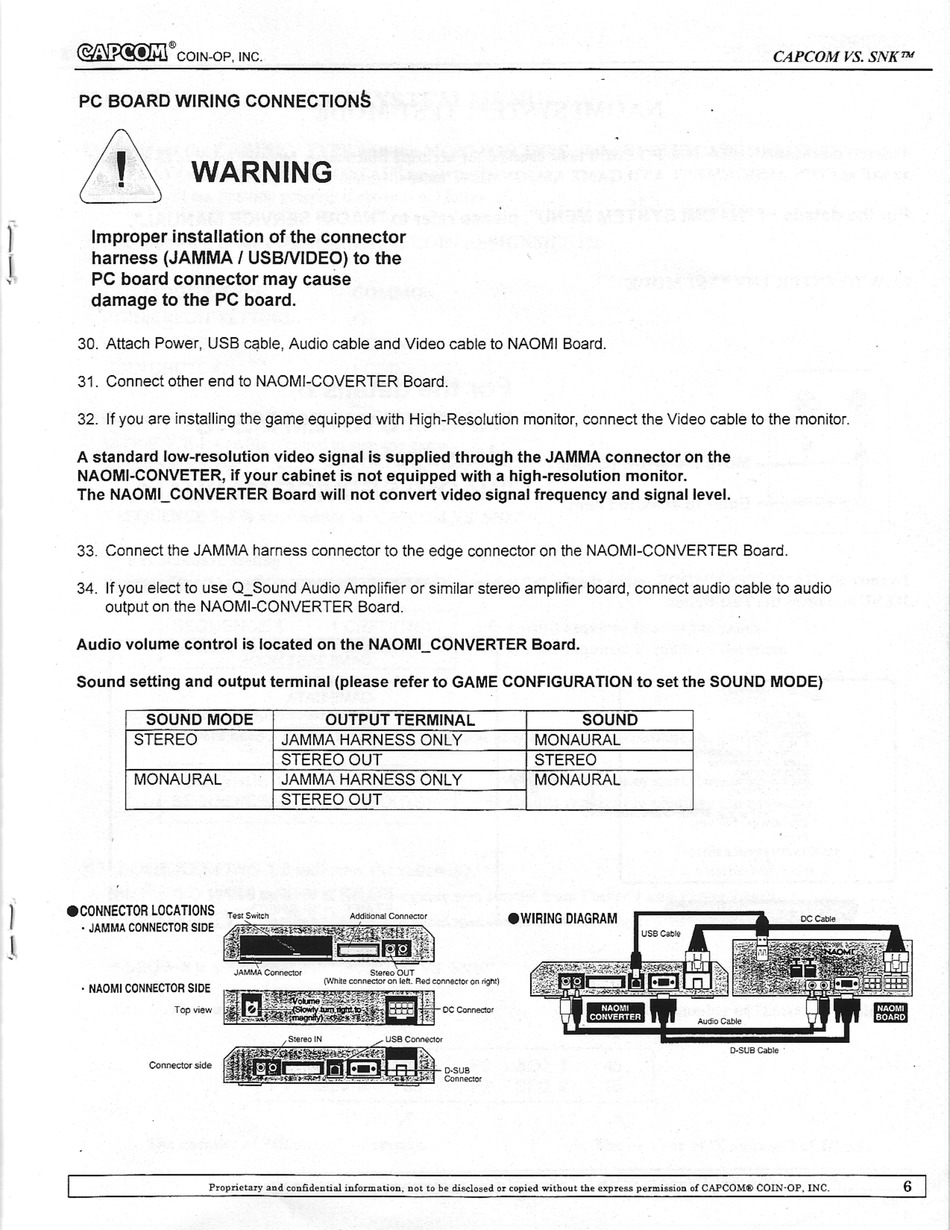

CAPCOM VS. SNK1M
PC
BOARD
WIRING
CONNECTI
ONS
WARNING
f
Improper installation
ofthe connecto
r
[
harness
(JAMMA
I
USBNIDEO)
to the
~
PC
board connector may cause
damage to
the PC
board.
I
J
30. Attach
Power,
USB
cqble,
Audio cable and Video cable to NAOMI Board.
31. Connect other end
to
NAOMJ-COVERTER
Board.
32. If
you
are install ing the game equipped with High-Resolution monitor, connect the
Video
cable to
the
monitor.
A standard low-resolution video signal is supplied through the JAMMA connector on the
NAOMI·CONVETER, if your cabinet is not equipped with a high -resolution monitor.
The
NAOMI_CONVERTER Board will
not
convert video signal frequency and signal level.
33
.
Connect
the JAMMA harness
connector to
the edge
connector on the
NAOMI-CONVERTER
Board.
34. If
you
elect to
use
Q_Sound Audio Amp lifier or similar stereo amplifier board, connect aud io cable to audio
output on the
NAOMI-CONVERTER
Board.
Audio volume control is
located
on the NAOMI_CONVERTER
Board.
Sound setting and output terminal (please
refer
to GAME CONFIGURATION to set the SOUND MODE)
SOUND MODE
STEREO
MONAURAL
.CONNECTOR LOCATIONS
• JAMMA CONNECTOR SIDE
• NAOMI CONNECTOR SIDE
Top
view
OUTPUT
TERMINAL
SOUND
JAMMA
HARNESS
ONLY
MONAURAL
STEREO OUT
STEREO
JAMMA HARNESS ONLY
MONAURAL
STEREO
OUT
.WIRING
DIAGRAM
Pro prietar
y
a~d co~fidential
inform ation.
not
t
o b
.
di"dM~d
or copied
wi
l
hout th.
express permi
••
ion
of
CAPCOM®
COIN·OP
.
INC.
6
