COIN-OP,
INC.

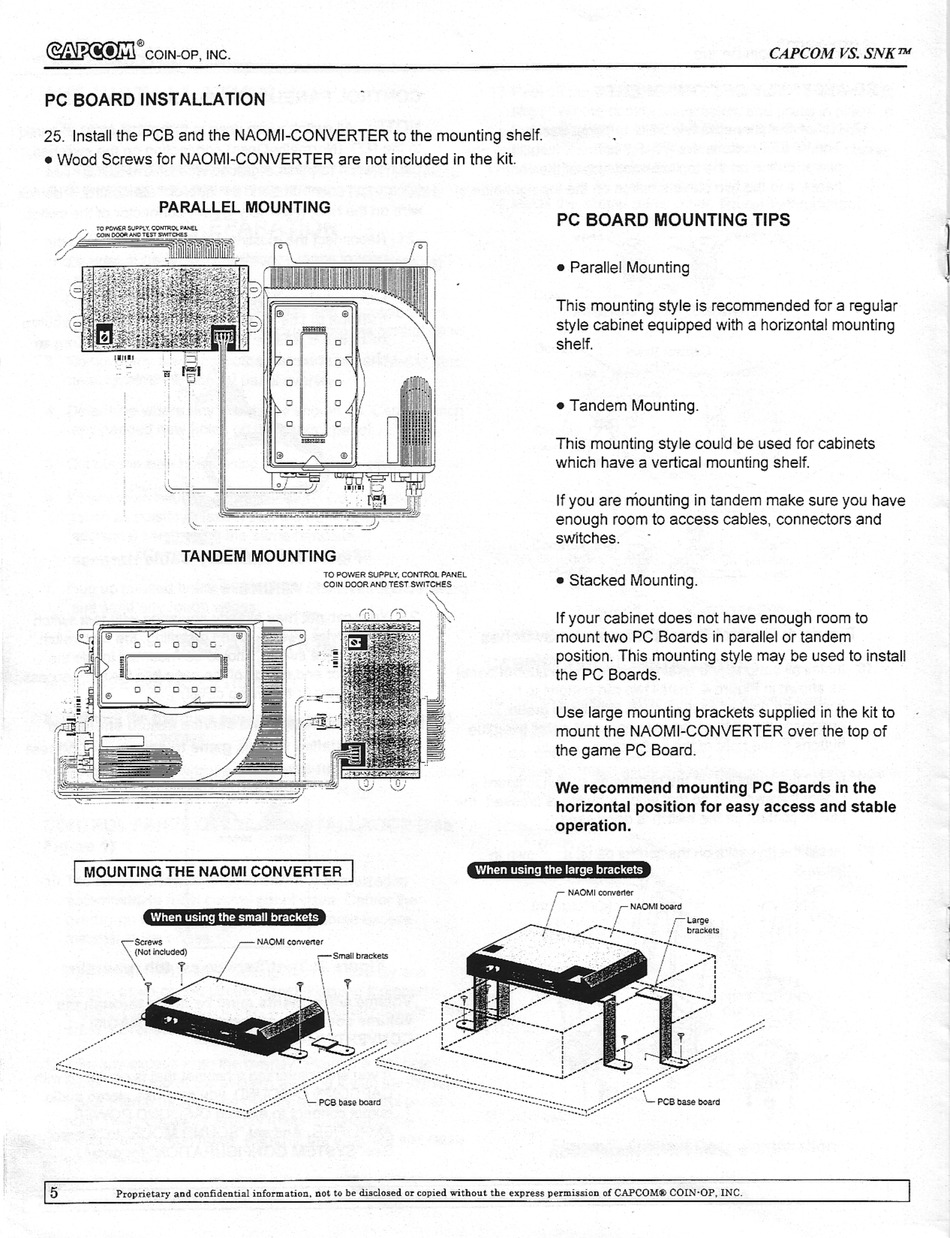

PC BOARD
INSTALLATION
25.
Install
the PCB and the
NAOM I-CONVERTER to
the mounting
shelf
.
•
W
ood Screws
for
NAOMI-CONVERTER
are not included in the
kit.
PARALLEL MOUNTING
TANDEM MOUNTING
CAPCOM VS. SNKTM
PC BOARD
MOUNTING
TIPS
•
Parallel
Mounting
This mounting style is
recommended for
a
regular
style cabinet equipped with a
horizontal
mounting
shelf.
•
Tandem
Mounting.
This
mounting
sty le could be
used for
cabinets
which
have a
vertical
mounting
shelf.
If
you
are mounting
in tandem make
sure
you
have
enough room to access
cables,
connectors
and
switches.
•
Stacked Mounting.
If
your
cabinet does not
have
enough room
to
mount two
PC
Boards in
parallel
or
tandem
position.
This
mounting style may be used to install
the PC Boards.
Use large mounting brackets supplied in the kit to
mount
the NAOMI-CONVERTER over the top
of
the game PC
Board.
We
recommend
mounting PC Boards in the
horizontal position for easy access and stable
operation.
I
MOUNTING THE NAOMI CONVERTER
I
When using the large brackets
When using the small brackets
b
...
tJoa,:j
5
Prop
ri
.,~ry
and
confide
n tial information,
DO'
t<>
b~
di.do.~d
or copied
without
tho
e
xpress
permiuion of
CAPCOMIl
COIN-OP,
INC
.
1
I
,
