- Page 1 2700G Series Reference Pressure Gauge Users Manual September 2012 © 2012 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is one year and begins on the date of shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only to...
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ........................1 How to Contact Fluke Calibration ................... 1 Standard Equipment....................... 2 Safety Information ......................2 Special Conditions for Safe Use ................3 Symbols ........................4 Display and Buttons ....................... 5 Operation ........................6 How to Setup the Product .................. - Page 4 2700G Series Users Manual Set Sample Rate ....................7 Set Tare ....................... 7 Function Lock ....................... 8 Supervisory Mode ..................... 8 Available Pressure Ranges ..................8 How to Set a Custom Engineering Unit or Scale............9 Battery Life ........................9 Maintenance ........................
- Page 5 List of Tables Table Title Page Symbols ..........................4 Display and Buttons ......................5 Units Conversion ........................16 Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
- Page 6 List of Figures Figure Title Page The Product ........................... 5 Change the Batteries ......................10 USB Power Module and Universal Connectors ..............12 Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
-
Page 7: Introduction

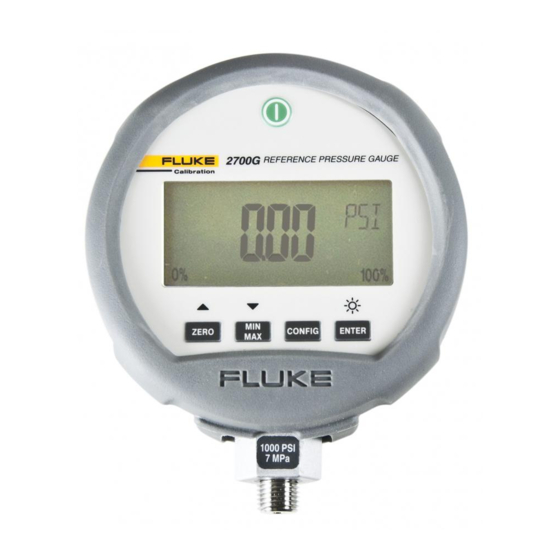

Introduction The 2700G Series Reference Pressure Gauges (the Product) are high-accuracy digital pressure test gauges. Accurate to 0.02 % FS, the Product can be used as a calibration reference, or in applications where high- accuracy pressure measurement is required. The Product features user-configurable functions that include: •... -
Page 8: Standard Equipment
2700G Series Users Manual Standard Equipment XWWarning To prevent injury, only assemble and operate The Product ships with: high-pressure systems if you know the • Protective Cover (installed) correct safety procedures. High-pressure liquids and gases are hazardous and the •... -
Page 9: Special Conditions For Safe Use
(such as being dropped) examine it for locked before you operate the Product. damage that can cause a safety issue. If necessary, send the Product for examination to Fluke. Refer to the How to WCaution Contact Fluke Calibration section. -
Page 10: Symbols
WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling information. Fluke-Direct .com sales@GlobalTestSupply.com... -
Page 11: Display And Buttons
To clear the MIN MAX memory values, push and hold for 2 seconds until CLr is shown. In Configure Mode, push () to move backward through the menus. gsn001.eps Figure 1. The Product Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 12: Operation
2700G Series Users Manual Operation Table 2. Display and Buttons (cont.) The subsequent sections tell you how to operate the Product. Push to turn on the Product. Item Function The analog bar graph at the bottom of the display shows the applied-pressure level relative to the full range of the gauge. -
Page 13: Set Auto Off
This is done to make sure Set Damping that with a “0” reading pressure is being applied to the Selections are “on” and “off” . Damping smooths gauge. readings from pulsating pressure sources. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 14: Function Lock
2700G Series Users Manual Function Lock each parameter. To move to the subsequent parameter, push . When set, access to each of the settable parameters above can be turned “off” to prevent unauthorized You can access, lock, or unlock these functions: configuration changes. -
Page 15: How To Set A Custom Engineering Unit Or Scale
Product if it is not used for an extended period. • Be sure that the battery polarity is correct to prevent battery leakage. • Have an approved technician repair the Product. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 16: How To Change The Batteries
2700G Series Users Manual How to Change the Batteries XWWarning To prevent possible electrical shock, fire, or personal injury, have an approved technician repair the Product. To change the batteries, see Figure 2: Pull off the Product cover. Use a Phillips screwdriver to loosen the captive screw on the battery door. -
Page 17: Accessories
Product. You can use serial communication to configure and calibrate the Product and move measurement data from the Product to a PC. For specifications on the interface, see the Specifications section. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... - Page 18 2700G Series Users Manual gsn003.eps Figure 3. USB Power Module and Universal Connectors Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
-
Page 19: Serial Interface Instructions
Returns the pressure unit for the • Local echo on upper display PRES_UNIT Sets the pressure unit for the display ZERO_MEAS Zeros pressure of the calibrator ZERO_MEAS? Returns the current zero offset value MINMAX_RST Resets the minimum and maximum recorded values Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 20: Parameter Units
2700G Series Users Manual MIN? Returns the minimum recorded Parameter Units value The subsequent list of units is used with the Product: MAX? Returns the maximum recorded Pressure in pounds per value square inch TEMP? Returns temperature in the chosen... -
Page 21: Error Codes
A required command parameter was missing torr Pressure in Torr (mmHG0C) An invalid pressure unit was received An unknown command was received The serial input buffer overflowed Too many entries in the command line Pressure module not connected Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 22: Units Conversion
2700G Series Users Manual Units Conversion See Table 3 for units and their conversion factors. Table 3. Units Conversion Unit Name Conversion Factor (from kPa) Conversion Factor (to kPa) 0.14503773773 6.894759 0.01 0.001 1000 kgf/cm2 0.010197162130 98.06652 inH2O @ 4 °C 4.014742... - Page 23 @ 4 °C 0.1019744 9.806383 mH2O @ 20 °C 0.1021549 9.789056 mbar inHg @ 0 °C 0.2952998 3.386387 mmHg @ 0 °C 7.500618 0.133322 Torr 7.500618 0.133322 ftSW @ 0 °C 0.325408 3.073062 0.09918444 10.08222 Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
-
Page 24: Specifications
2700G Series Users Manual Specifications Accuracy Positive Pressure ................±0.02 % FS Vacuum ..................±0.05 % FS Temperature Compensation ............18 °C to 28 °C (65 °F to 82 °F) to rated accuracy Note: For temperatures from 0 °C to 18 °C and 28 °C to 50 °C, add .003 % FS/°C Media Compatibility 15, 30 psi .................. -
Page 25: Mechanical Specifications
Housing .................. Cast ZNAL Display .................... 5-1/2 Digits, 16.53 mm (0.65 in) high 20-Segment bar graph, 0 to 100 % Power Battery ................... three size AA alkaline batteries Battery Life ................75 hours typical without backlight Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664... -
Page 26: Available Pressure Ranges
2700G Series Users Manual Available Pressure Ranges Model 2030- 2030- 2030- 2030- 2030- 2030- 2030- 2030- 2030- Number BG100K BG200K BG700K BG2M BG3.5M BG7M G20M G35M G70M Pressure 1000 3000 5000 10000 Range (psi) Pressure Range (MPa) Vacuum Range (psi)
