INSTALLATION GUIDE
12

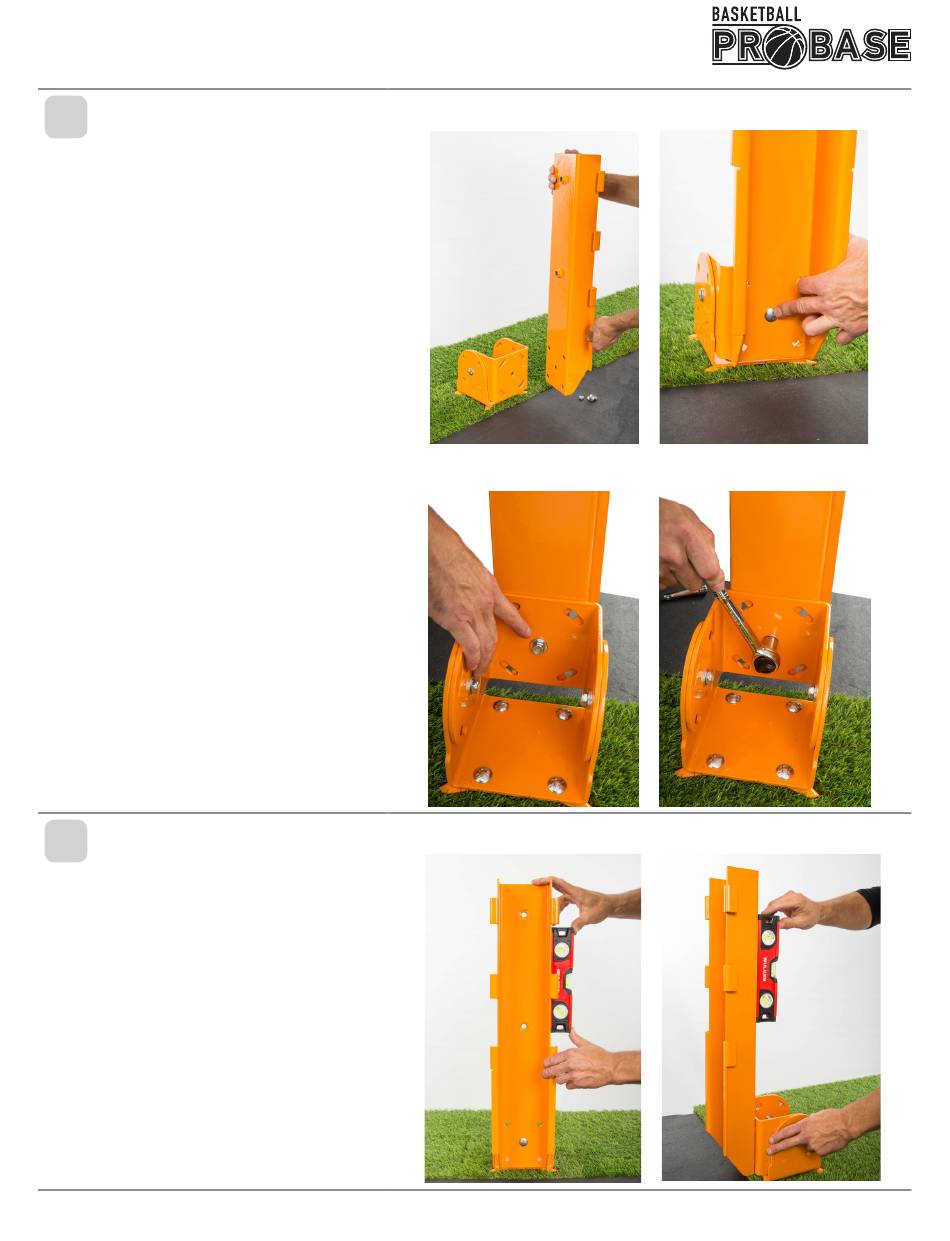

ASSEMBLE THE MAIN POLE
HOLDER TO THE PIVOT
Assemble the main pole holder (B)
to the pivot using 1 bolt (J),
1 flat washer (L) and 1 nut (K)
installed in the center hole.
Tighten firmly.
13
LEVEL THE MAIN POLE HOLDER
Level the main pole holder (B)
crosswise and lenghtwise.
*For assemblies including flange nuts (intergrated washer nuts), you will not have flat washers in your kit.
12.1
12.3
13.1
- 10 -
12.2
12.4
13.2
