- Page 1 GUIDE INSTALLATION...
-
Page 2: Important Safety Notice

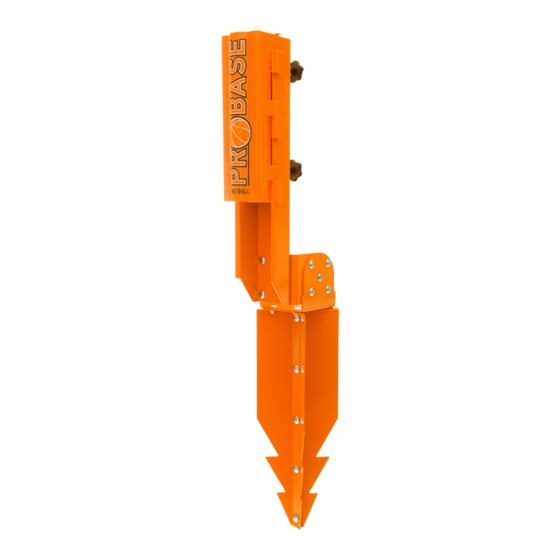

PROBASE. If any harm or material breakage is incurred, the user accepts all responsibility. Once your portable hoop is installed in the PROBASE, NEVER hang on its rim, on its net or on any other part of your equipment, including the backboard and its support braces. - Page 3 INSTALLATION GUIDE COMPONENTS Stake (2 identical components) Tapping block Holder Main pole holder Handle bolts Pivot Bolts Pivot base Nuts Removable front cover Flat washers Pressure plate Self-adhesive rubber pad (included only with plastic Tapping block (plastic or wood) tapping blocks) *For assemblies including flange nuts (intergrated washer nuts), you will not have flat washers in your kit.
-
Page 4: Exploded View
INSTALLATION GUIDE EXPLODED VIEW *For assemblies including flange nuts (intergrated washer nuts), you will not have flat washers in your kit. - 4 -... -
Page 5: Tools Needed
INSTALLATION GUIDE TOOLS NEEDED Crowbar or steel rod Sledgehammer Level 17 mm Open key wrench or ratchet tool with an 17mm socket *For assemblies including flange nuts (intergrated washer nuts), you will not have flat washers in your kit. - 5 -... - Page 6 If you run into an obstacle in the ground, you will have to find another spot for the installation of PROBASE. ASSEMBLE THE STAKE Assemble the two components of the stake (A) using 5 bolts (J), 5 flat washers* (L) and 5 nuts (K).
- Page 7 INSTALLATION GUIDE ASSEMBLE THE PIVOT BASE TO THE STAKE Assemble the pivot base (D) to the upper part of the stake, aligning the 4 holes of each part. Insert 4 bolts (J), 4 flat washers* (L) and 4 nuts (K) into the 4 holes, and tighten the bolts firmly.
- Page 8 INSTALLATION GUIDE PREPARING THE TAPPING BLOCK Place the tapping block (G) inside the pivot base (D). Insert the tapping block holder (H) into the grooves of the tapping block and push them between the bolts to the base of the tapping block.
- Page 9 INSTALLATION GUIDE REMOVE TAPPING BLOCK, TAPPING BLOCK HOLDER AND HARDWARE Once the stake is firmly inserted into the ground, remove the tapping block (G), the tapping block holder (H) the 8 bolts (J), the 8 flat washers*, the 8 nuts and set aside. 10.1 INSERT THE PIVOT Insert the pivot (C) into the pivot...
- Page 10 INSTALLATION GUIDE 12.1 12.2 ASSEMBLE THE MAIN POLE HOLDER TO THE PIVOT Assemble the main pole holder (B) to the pivot using 1 bolt (J), 1 flat washer (L) and 1 nut (K) installed in the center hole. 12.3 12.4 Tighten firmly.
- Page 11 INSTALLATION GUIDE 14.1 14.2 INSERT HARDWARE Once the main pole holder is levelled, insert the remaining bolts (J), flat washers* (L), nuts (K) in each of the unused holes. 14.3 Tighten firmly. 15.1 INSERT THE POLE Insert the pole of your basketball hoop into the main pole holder (B) by placing it on the ground and pulling it up.
- Page 12 (B). Screw until the pressure plate (F) is firmly squeezed against the pole. PROBASE is now ready to use. *For assemblies including flange nuts (intergrated washer nuts), you will not have flat washers in your kit. - 12 -...
