Fox Explorer X Booklet page 4

GB

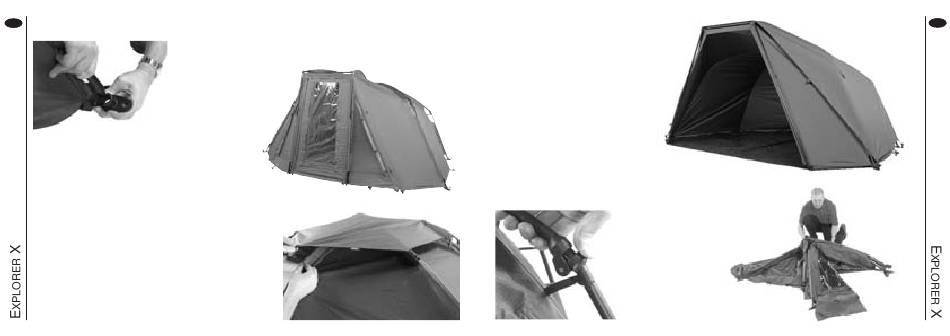

No 9 Peg down rear pegging point.
No 11 Peg down the other 4 main pegging points and
gently stretch the cover into position.
No 12 Once main pegging points are in position peg
down the intermediate pegging points gently pulling the
cover into position.
No 13 Attach top hat cover over spreader block via hooks
and rings. The Fox logo should be facing the front of the
Explorer.
No 10 Starting from the front and with the door closed peg
down the 4 main pegging points.
Tip: The door should be kept in a near vertical position.
No 14 The front panel can be completely
removed for increased visibility and summer
conditions. (Picture shows Explorer X fitted
with Winter Skin X).
No 15 To dismantle the Explorer X work
in reverse order. Once storm poles and
bivvy pegs have been removed remove
the 2 porch ribs and lay the Explorer X
on the groundsheet and unscrew the
rear pole.
No 16 To release the joints move the slide
downwards and allow the joint to open.
No 17 Once all joints
have been released fold
bottom rib inwards and
roll up the Explorer X.
GB
