Summary of Contents for VMP FP-MFTB

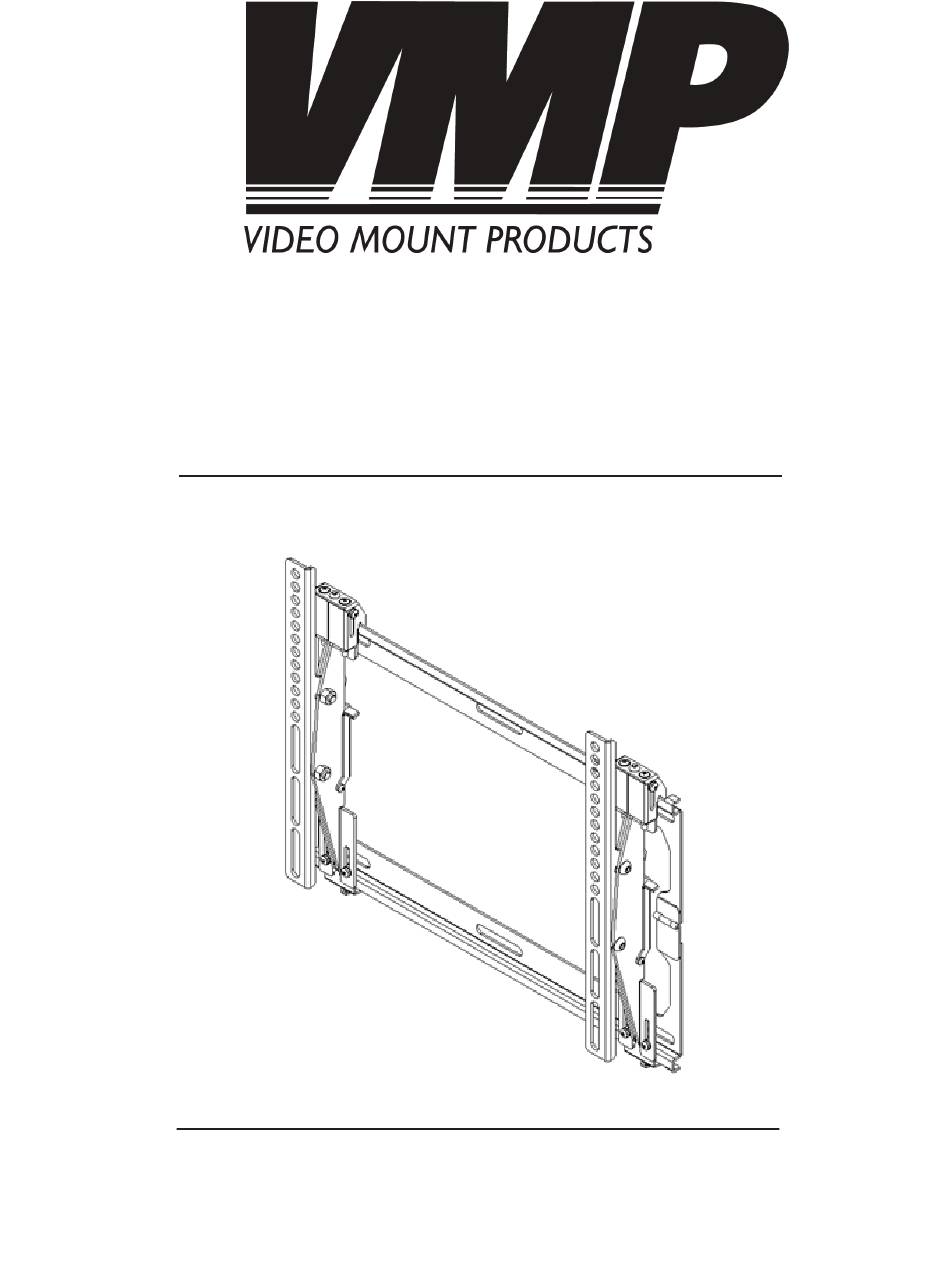

- Page 1 Instruction Sheet For: FP-MFTB For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.com...
- Page 3 Step 1 Lay out all parts to your mount and match them to the parts list provided. Verify that you have all your parts before attempting to assemble the mount. Step 2 Before starting, make sure to tighten the socket screw at the top of the tilt brackets as far as it will go to raise the brackets to the maximum height.
- Page 4 Step 5 To wire the flat panel, pull the bottom of the flat panel up and lower the kick stand (#10on both tilt brackets. Attach any cables and wires at this time to the flat panel display. When finished fold the kick stand (#10back up against the tilt brackets to lower the flat panel back to the wall plate Step 6 Check the securement brackets...
