Module Installation/Removal - Comtech EF Data LBC-4000 Installation And Operation Manual

L-Band Up/Down Converter System
Installation
2.3 M I
ODULE

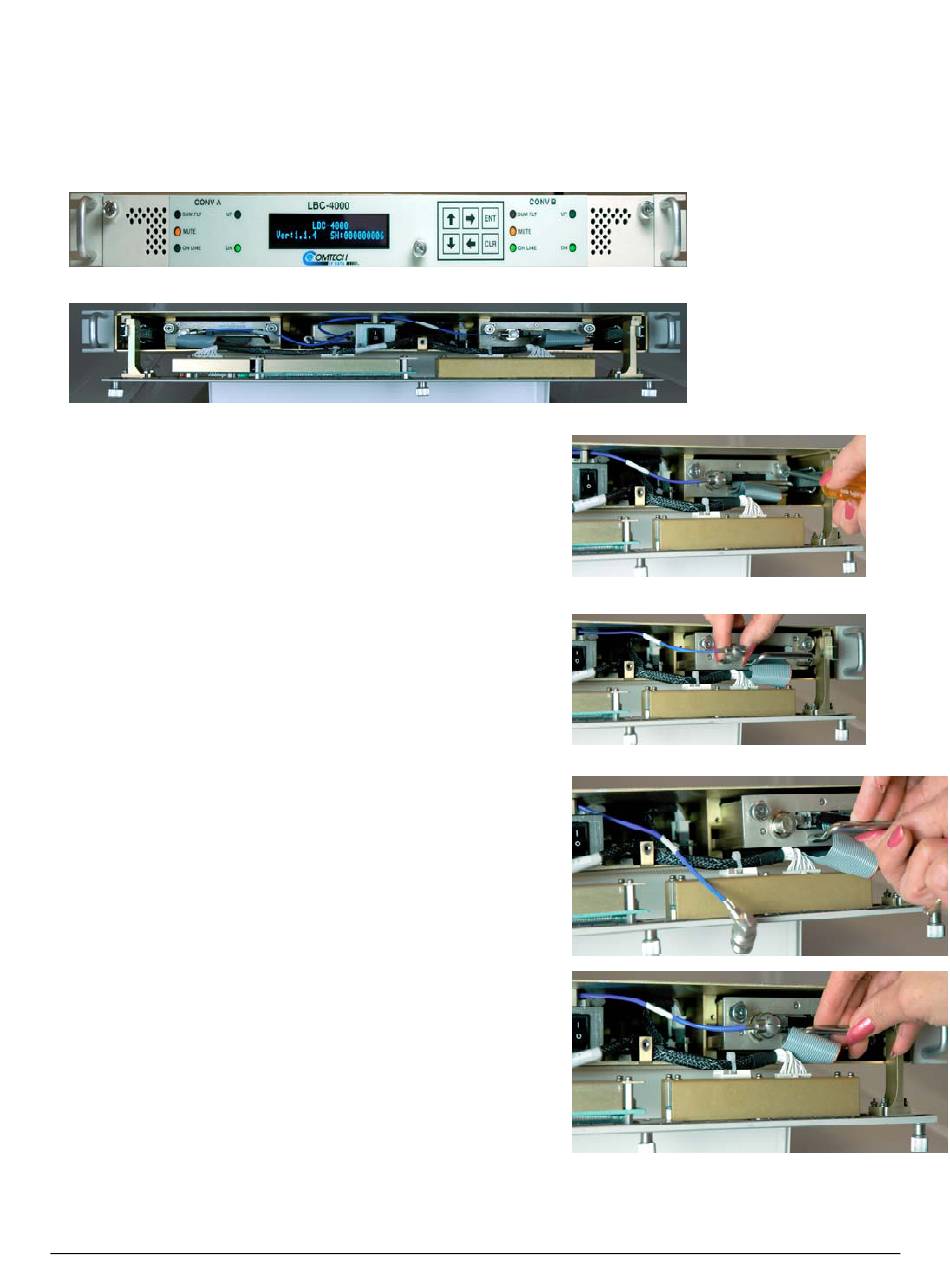

Refer to the following illustrations to remove the converter modules:
2. Remove two screws holding module in
place using a Phillip's Screwdriver.
3. Remove Reference Cable.
4. Remove Ribbon (Data) Cable.
5. Gently pull handle to remove module.
/R
NSTALLATION EMOVAL
2-2
MN/LBC4000.IOM
Revision 2
1. Loosen three
thumb screws and
drop front panel to
access modules
