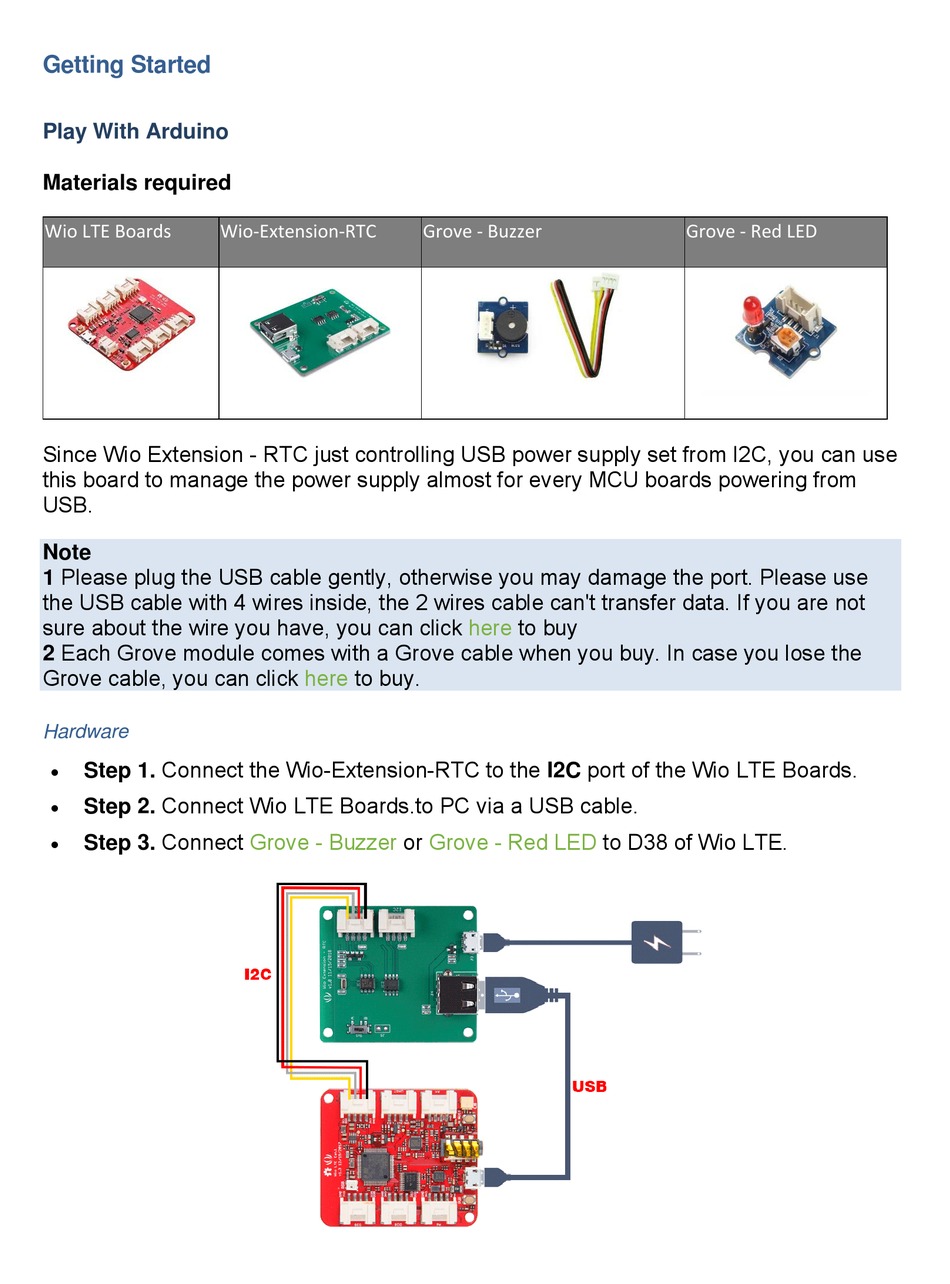

Getting Started
Play With Arduino
Materials required
Wio LTE Boards
Wio‐Extension‐RTC

Since Wio Extension - RTC just controlling USB power supply set from I2C, you can use
this board to manage the power supply almost for every MCU boards powering from
USB.
Note
1 Please plug the USB cable gently, otherwise you may damage the port. Please use
the USB cable with 4 wires inside, the 2 wires cable can't transfer data. If you are not
sure about the wire you have, you can click
2 Each Grove module comes with a Grove cable when you buy. In case you lose the
Grove cable, you can click
Hardware
Step 1. Connect the Wio-Extension-RTC to the I2C port of the Wio LTE Boards.
Step 2. Connect Wio LTE Boards.to PC via a USB cable.
Step 3. Connect
Grove ‐ Buzzer

here
to buy.
Grove - Buzzer
or
here
to buy
Grove - Red LED
to D38 of Wio LTE.
Grove ‐ Red LED
