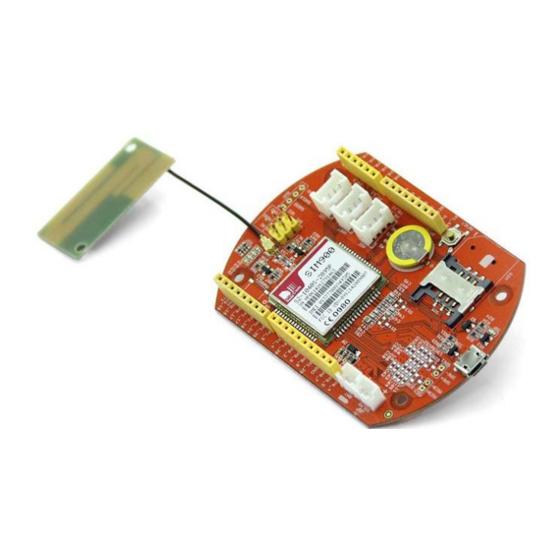

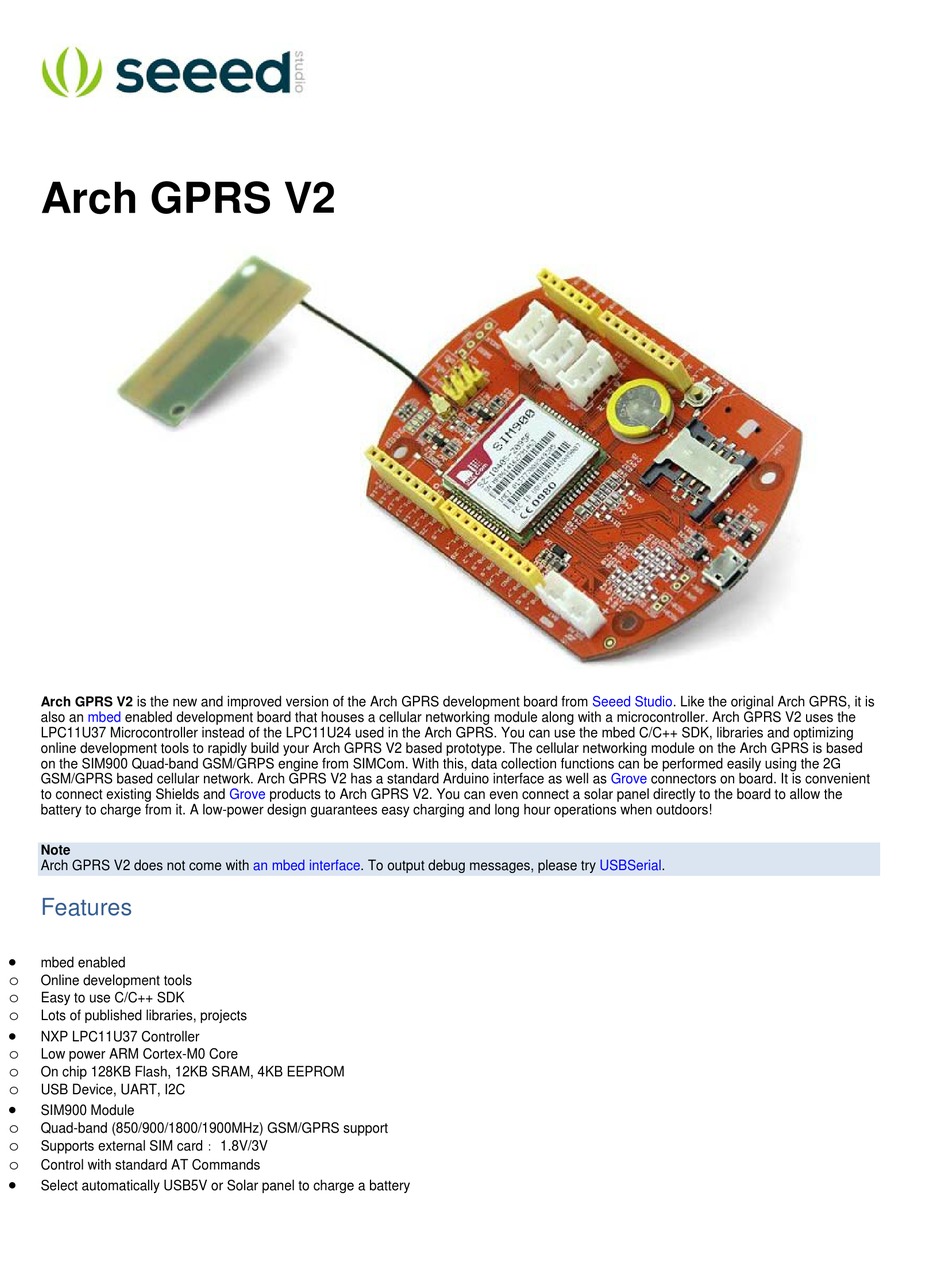

Arch GPRS V2
Arch GPRS V2 is the new and improved version of the Arch GPRS development board from
also an
mbed
enabled development board that houses a cellular networking module along with a microcontroller. Arch GPRS V2 uses the
LPC11U37 Microcontroller instead of the LPC11U24 used in the Arch GPRS. You can use the mbed C/C++ SDK, libraries and optimizing
online development tools to rapidly build your Arch GPRS V2 based prototype. The cellular networking module on the Arch GPRS is based
on the SIM900 Quad-band GSM/GRPS engine from SIMCom. With this, data collection functions can be performed easily using the 2G
GSM/GPRS based cellular network. Arch GPRS V2 has a standard Arduino interface as well as
to connect existing Shields and
battery to charge from it. A low-power design guarantees easy charging and long hour operations when outdoors!
Note
Arch GPRS V2 does not come with

Features

mbed enabled
o
Online development tools
o
Easy to use C/C++ SDK
o
Lots of published libraries, projects
NXP LPC11U37 Controller
o
Low power ARM Cortex-M0 Core
o
On chip 128KB Flash, 12KB SRAM, 4KB EEPROM
o
USB Device, UART, I2C
SIM900 Module
o
Quad-band (850/900/1800/1900MHz) GSM/GPRS support
o
Supports external SIM card: 1.8V/3V
o
Control with standard AT Commands
Select automatically USB5V or Solar panel to charge a battery

Grove
products to Arch GPRS V2. You can even connect a solar panel directly to the board to allow the
an mbed
interface. To output debug messages, please try USBSerial.
Seeed
Studio. Like the original Arch GPRS, it is
Grove
connectors on board. It is convenient

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arch GPRS V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Seeed Arch GPRS V2

  • Page 1 LPC11U37 Microcontroller instead of the LPC11U24 used in the Arch GPRS. You can use the mbed C/C++ SDK, libraries and optimizing online development tools to rapidly build your Arch GPRS V2 based prototype. The cellular networking module on the Arch GPRS is based on the SIM900 Quad-band GSM/GRPS engine from SIMCom.
  • Page 2 Arch GPRS V2 vs Arch GPRS Parameter Arch GPRS V2 Arch GPRS LPC11U27 LPC11U24 GSM/GPRS Module SIM900 EG-10 MicroSD Card Hardware Overview...
  • Page 3 CRP DISABLD. Quick press the reset button to run the new binary. Verify that your code is running successfully by looking at the Arch GPRS V2 board. If the right-most LED from the Pinout shown above is blinking and the other 3 LEDs next to it are all ON, this implies that your code is working.
  • Page 4   When you Compile and Run the above code on the Arch GPRS V2 board, you should see that the LEDs blink in sequence. If you get through the above steps successfully, this means that: Your Arch GPRS V2 is powering up correctly.
