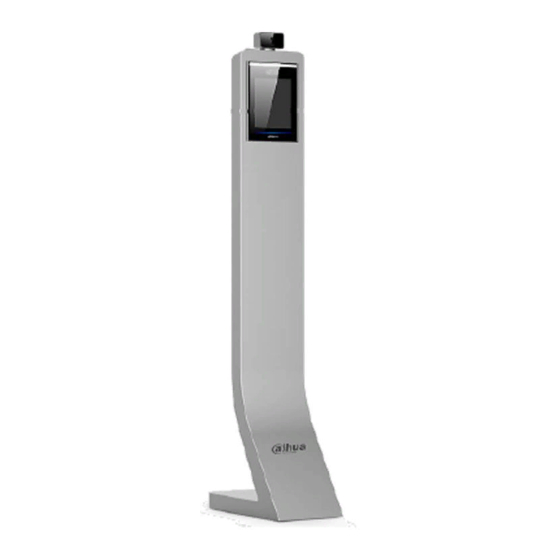

- Page 1 ASF172X-T1 Thermal Temperature Station Floor Stand Quick Start Guide V1.0.0...
- Page 2 Foreword General This manual provides instructions for installing ASF172X-T1 Thermal Temperature Station Floor Stand. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Provides additional information as the emphasis and supplement to NOTE the text.
- Page 3 Important Safeguards and Warnings This chapter describes the contents covering proper handling of the bracket, hazard prevention, and prevention of property damage. Read these contents carefully before using the bracket, comply with them when using, and keep them well for future reference. Operation Requirement ●...
- Page 4 Table of Contents Foreword ............................... I Important Safeguards and Warnings ....................II 1 Dimensions ............................1 2 Installation Guide ..........................2 2.1 Mounting Requirements ......................2 2.2 Dimensions ..........................3 2.3 Installing the SafetyTemp Temperature Monitoring Kiosk ............. 3...
- Page 5 1 Dimensions...
- Page 6 2 Installation Guide 2.1 Mounting Requirements Name Expansion bolt Concealed wiring hole Cement sinker Ground ● The recommended dimensions (L × W × H) of cement sinker are: 300 mm x 180 mm x 80 mm (11.81" × 7.08" × 3.15"). ●...
- Page 7 2.2 Dimensions Figure 2-4 Bracket installation dimensions of 7-inch (X) access controllers (mm [inch]) 2.3 Installing the SafetyTemp Temperature Monitoring Kiosk 1. Detach rear cover of the kiosk. 2. Replace the short cable with a longer one. 3. Flatten the seal ring of the port cover, and then fix the port cover with 4 screws. 4.
