Sega Nascar Arcade Mini Standard Service Manual

SPECIAL NOTICE FOR ALL

Nascar Shifter Reinforcement Kit

1. Remove the 4 Tamper Proof screws securing the shifter plate and remove the shifter

plate. Note: Save all parts removed for re-installation process.

2. Remove the 4 bolts securing the shifter ease the shifter out, unplug it from the game and

remove the shifter.

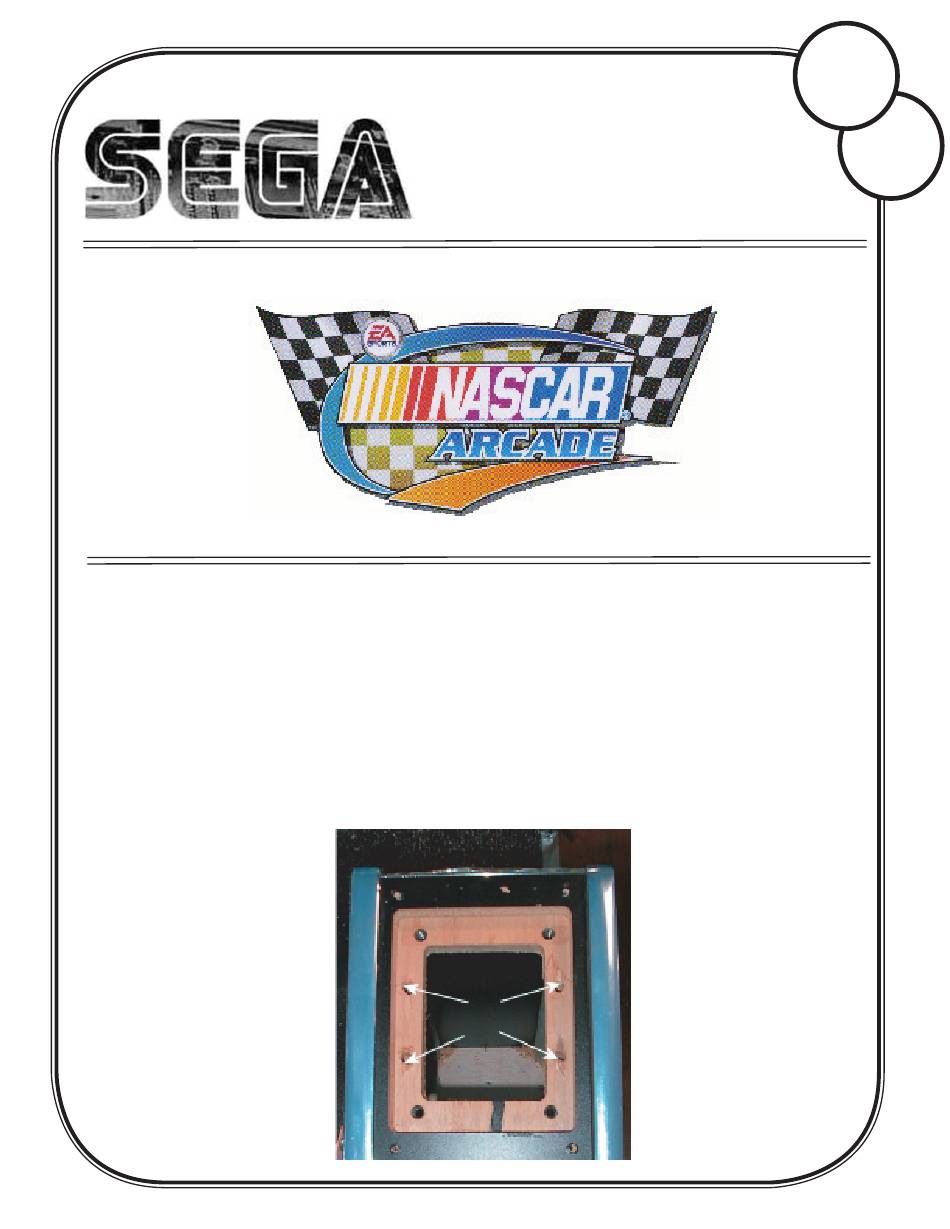

3. Using the template provided, drill four 5/16" bracket mounting holes in the top of the

console. (see figure below)

May 15, 2002

™

SERVICE BULLETIN

SEGA SERVICE DEPARTMENT

45133 Industrial Drive

Fremont, Ca. 94538

MINI STANDARD

Installation Instructions

134

http://www.serservice.com

Phone: 415-701-6580

Fax:

415-701-6594

Page

1 of 4

Table of Contents

Need help?

Do you have a question about the Nascar Arcade Mini Standard and is the answer not in the manual?

Page 1 May 15, 2002 ™ Page SERVICE BULLETIN 1 of 4 SEGA SERVICE DEPARTMENT http://www.serservice.com 45133 Industrial Drive Phone: 415-701-6580 Fremont, Ca. 94538 Fax: 415-701-6594 SPECIAL NOTICE FOR ALL MINI STANDARD Nascar Shifter Reinforcement Kit Installation Instructions 1. Remove the 4 Tamper Proof screws securing the shifter plate and remove the shifter plate.
Page 2 Page 4. Using the template provided, drill two 9/32” bracket mounting holes in each side of the 2 of 4 console as shown. 5. Using the four-20 X 1” Carriage Bolts, nuts & washkers provided, mount each of the two brackets to the inside walls of the console as shown.
Page 3 6. Using the four - 20 X 1” flat-head machine screws provided, secure the top each of the Page brackets to the wooden console as shown below, then tighten the nuts on the carriage 3 of 4 bolts. 7. Place the 2 spacer plates as shown below left, and then plug in the shifter re-install the shifter assembly using the same 4 hex bolts removed earlier.
Page 4 8. Re-install the shifter plate using the 4 Tamper Proof screws you removed earlier. Page 4 of 4 www.seuservice.com...
