2.1 Before You Begin
After unpacking the unit, check the equipment for compliance and any damage that may have occurred during shipment.
Immediately contact a Welker representative if you received damaged equipment.
When sealing fittings with PTFE tape, refer to the proper sealing instructions for the brand used.
2.2 Setting the Sample Volume
1.
Locate the exposed external adjustment chamber in the motor top (Figure 3).
Setting the sample volume is accomplished by rotating the upper external adjustment ring to attain the desired sample
volume.
Once the desired volume is set, the sample volume can be changed at any time externally without removing the inLoop™ ACE
from the fast loop.
8
IOM-195
MODEL: INLOOP™ ACE
SECTION 2: INSTALLATION & OPERATION

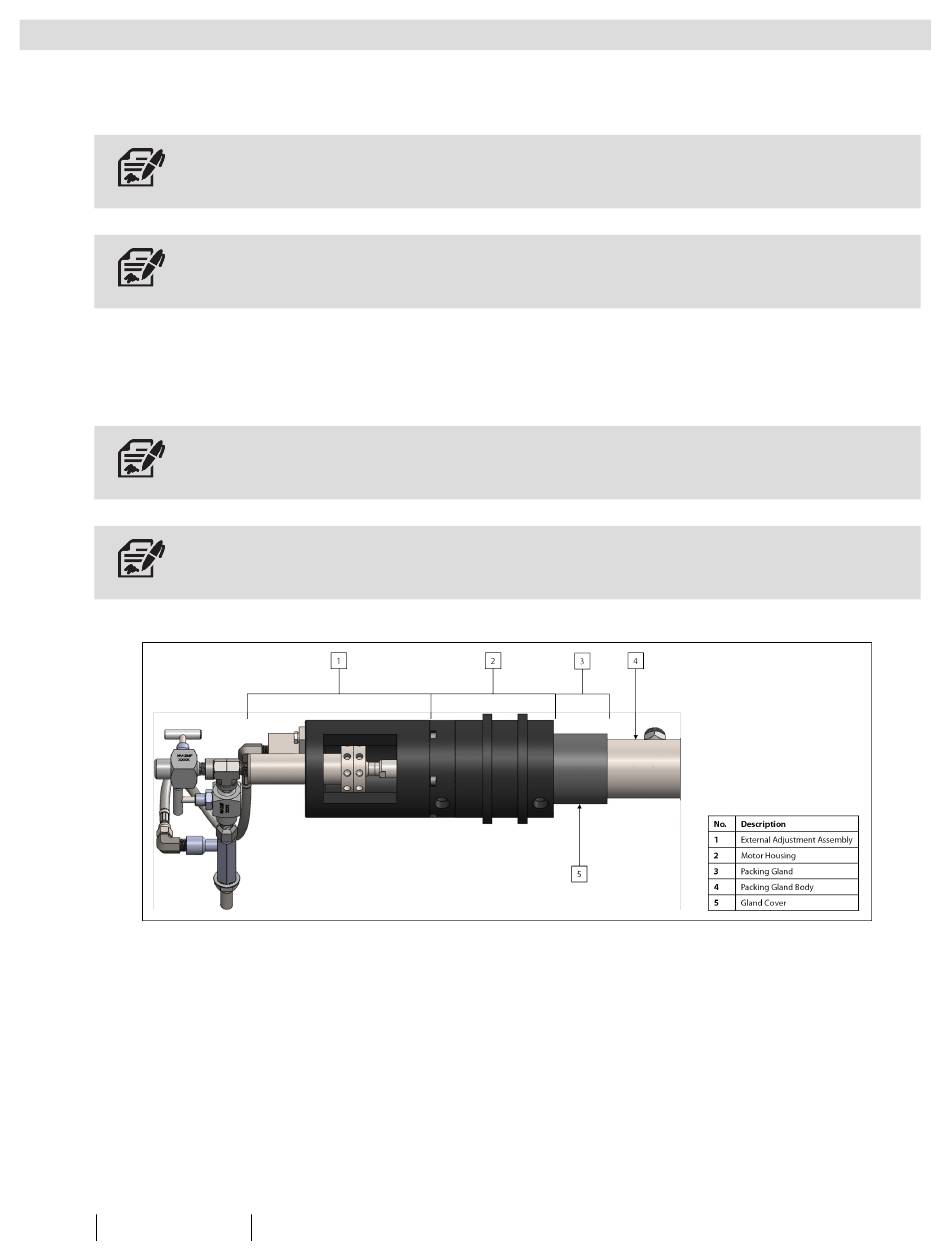

Figure 3: Upper Housing Diagram
REV: B
