2.5 Operating the Unit

1. Turn ON the hydraulic or pneumatic supply.
2. As necessary, adjust the hydraulic or pneumatic supply to 100 psig.
3. Set the timer or controller to actuate the solenoid at the desired sampling actuation frequency based on the sampling
equations provided (Figure 8).
Never fill the container above 80% of its capacity. Allow at least 20% room for product expansion should the container be
exposed to increased temperatures.
Note the 0.8 in Equation 1 represents the 80% volume limit for liquid sampling.
4. Ensure that emergency shutoff valve E is open (Figure 1).
5. As necessary, turn on electrical power and activate the hydraulic or pneumatic supply to actuate the solenoid at the set
sampling frequency.
6. Collect a sample from the sample outlet to ensure that the sample volume collected is the same as the desired sample
volume.
Welker recommends the Welker Checkpoint™ Sample Bite Verification Panel for use with this unit.
12
IOM-195 MODEL: INLOOP™ ACE

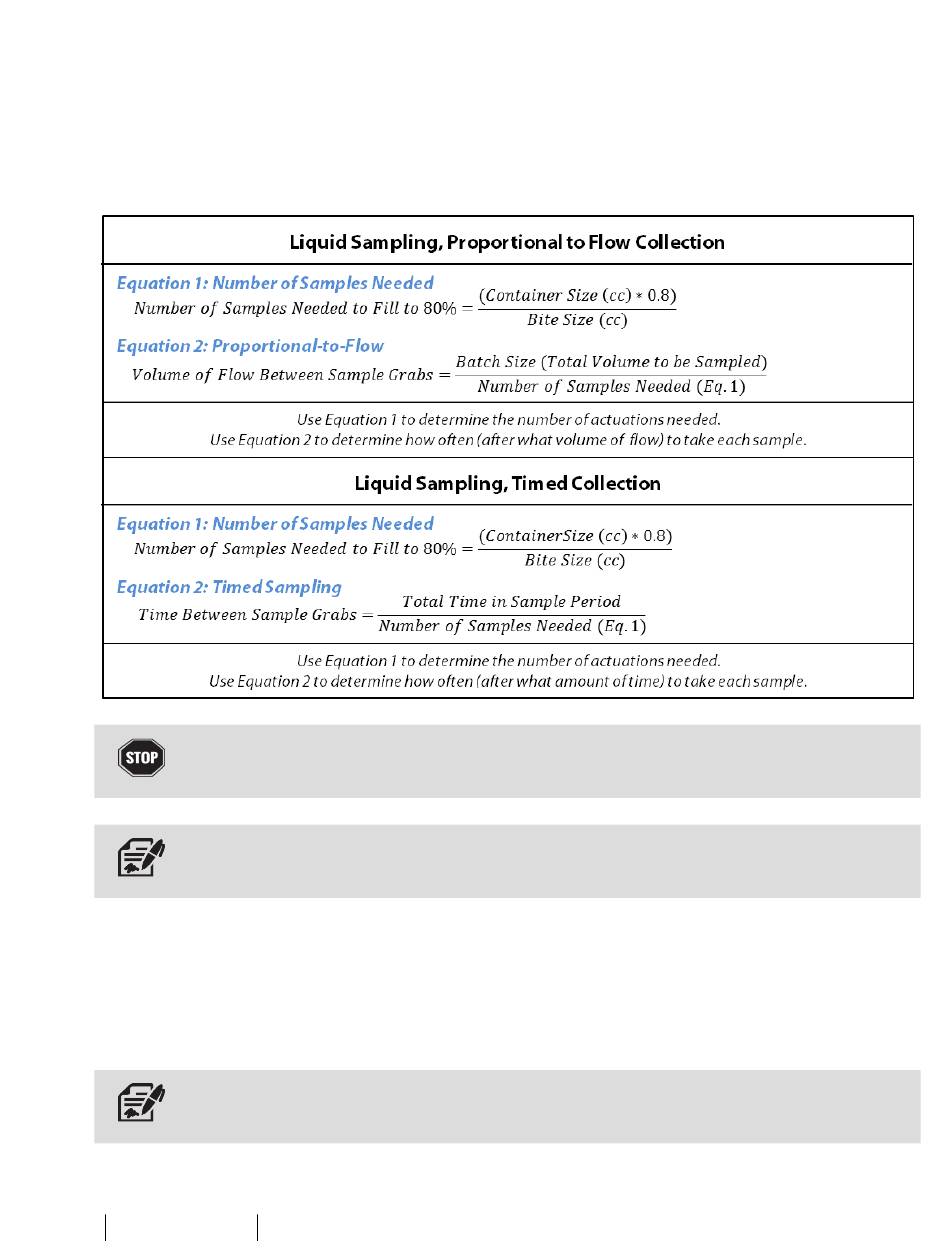

Figure 8: Sampling Frequency Equations
