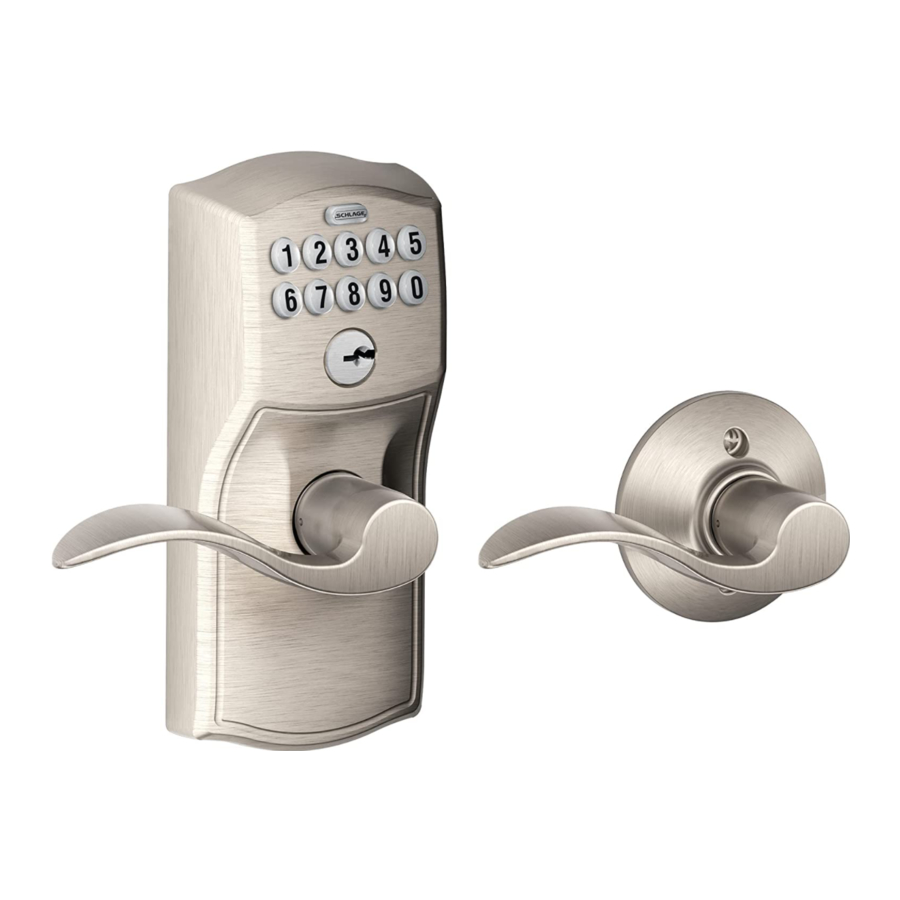

Schlage FE575 Installation Instructions Manual

Keypad
Hide thumbs Also See for FE575:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
*23780026*
23780026
Model FE575
Place Label Here
Poner la etiqueta aquí
Placer l'autocollant ici
Tools Needed
• Phillips screwdriver
Optional
• Tape Measure
• Flathead
• Pencil
• Wood Block
• Hammer
Additional Parts
Pin Wrench
Optional Latch
Faceplate
Prepare for Installation
IMPORTANT NOTES
•
DO NOT use a power drill for installation!
•
Use a screwdriver to remove product from packaging.
•
Install and test lock with door open to avoid being locked out.
A
Check door dimensions.
See consumer.schlage.com/Service-Support for door
preparation instructions if dimensions are different.
2³⁄₄" (70 mm)
OR
2³⁄₈" (60 mm)
1" (25 mm)
Door Edge
Customer Service Atención al cliente Service à la clientèle
Calling From: Si llama desde: Tout appel provenant de:
U.S.A.
Estados Unidos
États-Unis
d'Amérique:
(800) 997-4734
(888) 805-9837
Keypad Lock
Default Codes
Códigos de predeterminado
Codes du défaut
Screwdriver
Key
2¹⁄₈" (53 mm)
Hole
Canada
Canadá
Canada:
Mexique:
018005067866
Keypad
Latch
B
Change faceplate, if necessary.
Choose the drawing that matches your door edge. If the hole has no
mortise, change to the circular faceplate.
Mexico
México
Inside Lever
Lever Screws (2)
Latch/Strike
Screws (4)
Strike
Door Edge
OR
Door Edge
Installation Instructions
© Allegion 2020
Printed in U.S.A.
23780026 Rev. 04/20-g
No change
necessary.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FE575 and is the answer not in the manual?

Questions and answers

Related Manuals for Schlage FE575

Summary of Contents for Schlage FE575

  • Page 1 Use a screwdriver to remove product from packaging. • Install and test lock with door open to avoid being locked out. Check door dimensions. No change See consumer.schlage.com/Service-Support for door necessary. preparation instructions if dimensions are different. 2³⁄₄” (70 mm) Door Edge 2³⁄₈”...

  • Page 2: Install Battery

    Install Lock Install battery. Install latch. Make sure latch angle faces door jamb. Jamb Angle Angle Install keypad. Wood Block (Not Included) Actual Size Install strike onto door jamb. Bar should slide smoothly through hole in latch. If not, check door dimensions. Actual Size...
  • Page 3 Install lever. If needed, switch levers. If your lever looks like this, Correct then no change is necessary. If your lever does not look like this, switch the levers by following the steps below. Incorrect Actual Size Knob identification and installation Insert the pin wrench For installation, slide both knobs onto the inside/outside assembly.
  • Page 4 * The first four numbers must be different from all of the User Codes currently in the lock. More Programming, Warranty, and Registration Information For more programming, warranty, and service information, go to Register your product at RegisterMySchlage.com, or use a mobile schlage.com/faqs-keypad, or use a mobile device with the code device with the code below: below:...
  • Page 5 Si les dimensions sont différentes, visiter le site consumer.schlage. Borde de la puerta com/Service-Support pour plus d’information à propos des Bord de la porte instructions de préparation.
  • Page 6 Instale la traba Installez la serrure Instale la batería. Installez la pile. Instalar el pestillo. Installez le verrou. Asegúrese de que el ángulo del pestillo mire hacia la jamba de la puerta. Assurez-vous que l’angle du loquet fait face au montant de la porte. Jamba Ángulo Ángulo...
  • Page 7 Instalar la palanca interna. Si es necesario, intercambie las palancas. Installez le levier intérieur. Au besoin, échangez les leviers. Si su palanca se ve como esta, no Correcto es necesario realizar ningún Correct cambio. Si su palanca no se ve como esta, intercambie las palancas siguiendo los pasos que se indican a continuación.
  • Page 8 Renseignements additionnels concernant la programmation, la garantie et l’enregistrement Registre su producto en RegisterMySchlage.com o use el siguiente Para obtener más información sobre programación, garantía e información sobre el servicio, diríjase a schlage.com/faqs-keypad o código desde un dispositivo móvil: use el siguiente código desde un dispositivo móvil: Enregistrez votre produit sur RegisterMySchlage.com ou utilisez un...
