Williams Sound CHG 520 User Manual

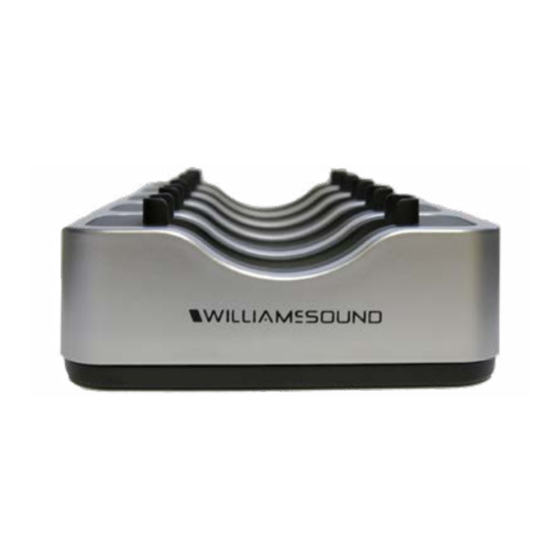

5-unit drop-in battery charger

CHG 520

5-Unit Drop-In Battery Charger

Setup Instructions

1. Plug the DC power connector into the rear of the CHG 520.

2. Plug the power supply into an AC wall outlet.

3. Insert the Receiver into the charging slot. The receivers must be facing forward to make contact with the

charging contacts. The LED indicator on top of the IR RX20 receiver will illuminate red when charging and will

change to green when charging is complete.

4. It is safe to leave the receivers in the charger even after the batteries are fully charged. However, we do not

recommend leaving receivers in the charger for a prolonged period of time.

5. A piggy-back cable is available, which can be used to connect up to three CHG 520 chargers to one TFP 064

power supply.

If No LED's Light Up:

1. Verify that the power supply is plugged into a wall outlet.

2. Verify the wall outlet has power (no tripped circuit breaker, etc).

3. Verify the receiver is turned off.

4. Verify that all receivers are facing front in the charger. If charging, the indicator LED will illuminate red. If fully

charged, it should illuminate green.

Help Williams AV protect the environment! Please take the time to dispose of your equipment properly.

Please Recycle

Please do NOT dispose of your equipment in the household trash. Please take the equipment to a electronics

recycling center for proper disposal.

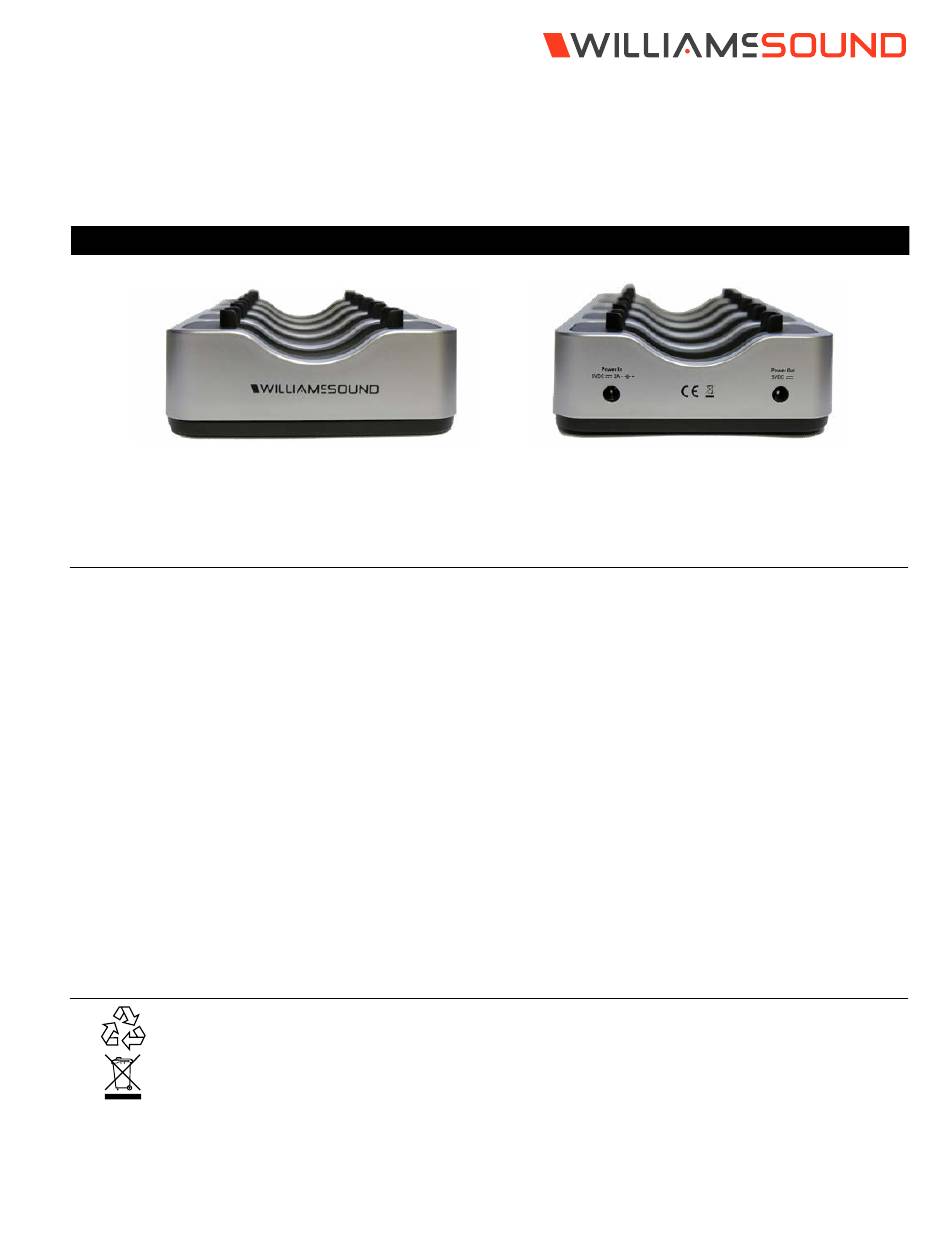

CHG 520 Front and Rear View

USER MANUAL

Table of Contents

Do you have a question about the CHG 520 and is the answer not in the manual?

Page 1 4. It is safe to leave the receivers in the charger even after the batteries are fully charged. However, we do not recommend leaving receivers in the charger for a prolonged period of time. 5. A piggy-back cable is available, which can be used to connect up to three CHG 520 chargers to one TFP 064 power supply.
Page 2 Williams Sound brand products, produced by Williams AV, are engineered, designed and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams AV warrants the CHG 520 Multiple Battery Charger against defects in materials and workmanship for ONE (1) year. During the first year from the purchase date, we will promptly repair or replace the CHG 520 Charger.
