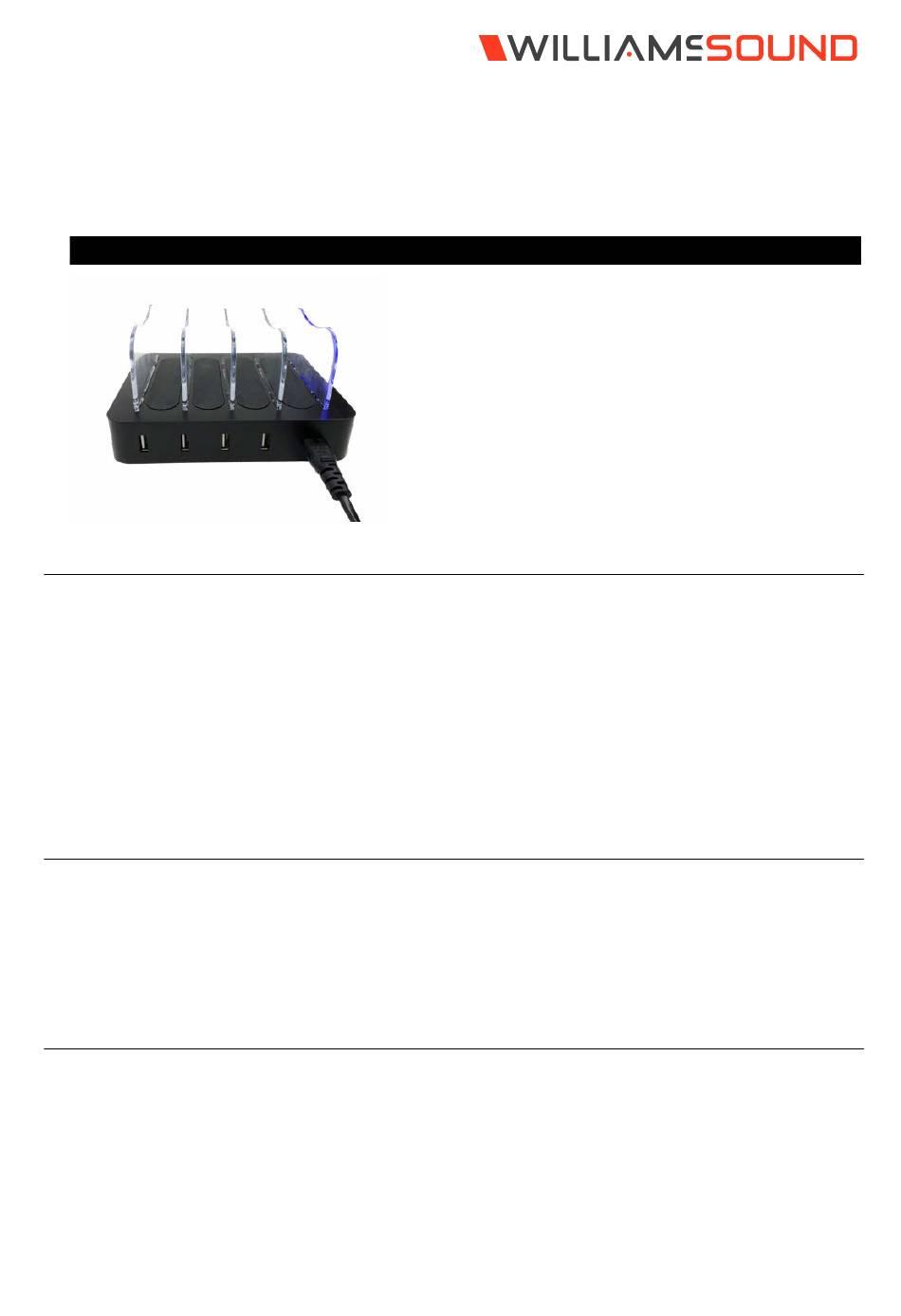

Williams Sound CHG 404 Installation Instructions

Charging Bay
CHG 404

Assembling the Charger

Some minor assembly is needed before the charger can be used. The package includes the charger base, 5 plastic
dividers, a power supply, and 4 USB cables.
1. Insert the plastic dividers into the slots at the top of the charger base. The smooth, curved long edge of the
plastic divider should face outward, with the clips on the bottom long edge holding the barrier firmly in place.
2. Insert the power supply cord into the charger on the side of the device next to the USB ports.
3. Connect the power supply plug to an outlet. The unit is now powered (see "Important Note on the LED On/Off
Switch" on page 1).
4. Connect the USB cables provided into the USB ports on the side of the device.

Important Note on the LED On/Off Switch

The switch does NOT affect the power flow to charging devices.
It is a light switch that toggles whether the blue LED lights blink during charging. Turning the switch off will disable all the
blue LED lights.
If the charger is plugged into a live outlet, your devices are charging. The LED lights do not need to be lit to indicate
charging.

USB Cables for Various Products

The WaveCAST Receivers and the Digi-Wave DLT 400 and DLR 400 RCH can be charged in the charging bay. However,
the WaveCAST Receiver uses a USB micro-B cable to charge, and Digi-Wave products use a USB-C cable to charge.
Both cable types can be used with this charger.
Additional cables can be ordered from Williams AV, or a generic cable of the correct type can be purchased. The Williams
AV part numbers are:
• WCA 144 for the USB-C cable used by Digi-Wave devices. These cables come with the CHG 404 DW.
• WCA 145 for the micro-B USB cable used by the WaveCAST Receiver. These cables come with the CHG 404 WF.
INSTALLATION INSTRUCTIONS
WaveCAST Receivers and Digi-Wave DLT 400 and
DLR 400 RCH can be charged in the CHG 404.
1
MAN 258A
