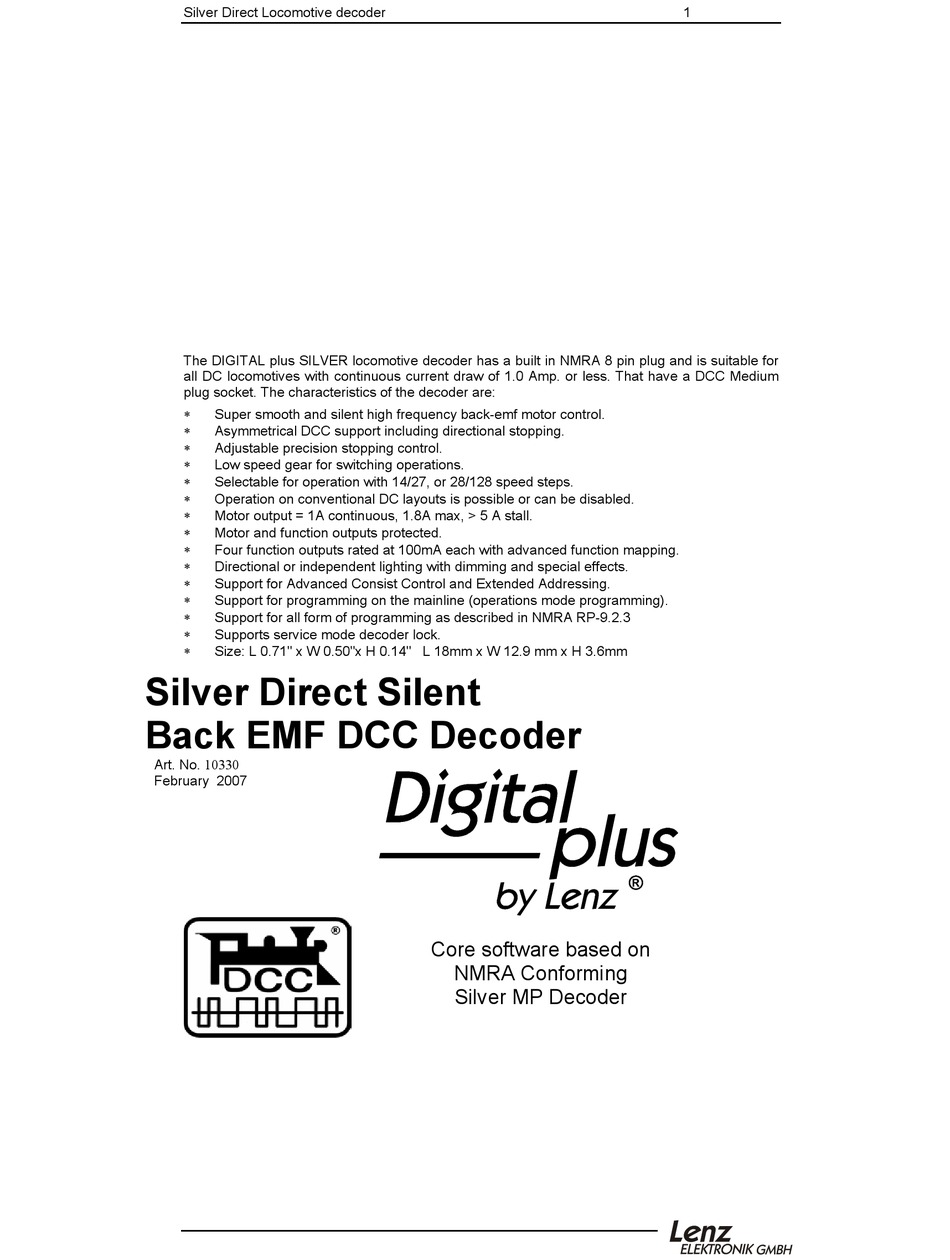

Silver Direct Locomotive decoder
The DIGITAL plus SILVER locomotive decoder has a built in NMRA 8 pin plug and is suitable for
all DC locomotives with continuous current draw of 1.0 Amp. or less. That have a DCC Medium
plug socket. The characteristics of the decoder are:
∗
Super smooth and silent high frequency back-emf motor control.
∗
Asymmetrical DCC support including directional stopping.
∗
Adjustable precision stopping control.
∗
Low speed gear for switching operations.
∗
Selectable for operation with 14/27, or 28/128 speed steps.
∗
Operation on conventional DC layouts is possible or can be disabled.
∗
Motor output = 1A continuous, 1.8A max, > 5 A stall.
∗
Motor and function outputs protected.
∗
Four function outputs rated at 100mA each with advanced function mapping.
∗
Directional or independent lighting with dimming and special effects.
∗
Support for Advanced Consist Control and Extended Addressing.
∗
Support for programming on the mainline (operations mode programming).
∗
Support for all form of programming as described in NMRA RP-9.2.3
∗
Supports service mode decoder lock.
∗
Size: L 0.71" x W 0.50"x H 0.14" L 18mm x W 12.9 mm x H 3.6mm
Silver Direct Silent
Back EMF DCC Decoder
Art. No. 10330
February 2007
Core software based on
NMRA Conforming
Silver MP Decoder
1
Advertisement
Related Manuals for Lenz Elektronik Digital Plus
Summary of Contents for Lenz Elektronik Digital Plus
- Page 1 Silver Direct Locomotive decoder The DIGITAL plus SILVER locomotive decoder has a built in NMRA 8 pin plug and is suitable for all DC locomotives with continuous current draw of 1.0 Amp. or less. That have a DCC Medium plug socket. The characteristics of the decoder are: ∗...
-
Page 2: Special Features
For more detailed information please refer to the "SILVER decoder" information which can be downloaded from the Lenz Elektronik GmbH website: www.lenz.com. Capacity and protection equipment The motor output has a current-carrying capacity of up to 1A without any concern for cooling! The short-term maximum current-carrying capacity is 1.8A. - Page 3 Silver Direct Locomotive decoder Function for disabling of acceleration and deceleration delay Use function F4 (function assignment can be altered in CV59) to disable the acceleration and braking delay as well as the constant braking distance during operation. The delays are disabled as long as the function is active. Switching speed function The switching speed halves the speed table.
- Page 4 Silver Direct Locomotive decoder The constant braking distance does not function in analogue DC mode. Mapping function outputs Using function mapping (CVs 33-46) you can define which functions of the digital system are used to control the A, B, C and D function outputs. The outputs A, B and C can be allocated to function F0 (direction-dependent) or functions F1 to F8 as desired.
- Page 5 Silver Direct Locomotive decoder Some advice on installing the decoder: Although the SILVER decoder has many internal safeguards to prevent damage, you must not allow any metal part of the locomotive to touch the surface components of the decoder. This could cause a direct internal short circuit and the decoder will be destroyed.
- Page 6 Silver Direct Locomotive decoder Function output C Left rail pickup Motor connection 2 Function output A (front headlight) Function positive common Right rail pickup There are two wiring options for installing the function D to the solder pads on the underside of the decoder depending on how the locomotive is constructed.
-
Page 7: Resetting The Decoder
0-7 to correspond the NMRA convention for universal bit numbering. Many handhelds (such as the DIGITAL plus LH100 handheld) use a scheme of 1-8 to refer to the individual bits rather than 0-7. (Bit 0 in this table is displayed as a"1"... - Page 8 Silver Direct Locomotive decoder Table of supported CVs Factory CV Meaning Range setting Basic locomotive address. This number is the short address 1-127 used to control the locomotive. When writing this CV, CV19 (consist address) is automatically cleared and CV29 Bit 6 (use of extended address) is deleted is set to 0.
- Page 9 Silver Direct Locomotive decoder Factory CV Meaning Range setting Fault indication 0 (dec) bit 0 (1) 0,1 [1] = 1 Light short-circuit bit 1 (2) = 1 Overheating 0,1 [2] bit 2 (3) = 1 Motor short-circuit 0,1 [4] Function mapping for function outputs: Factory In order to allocate a function of the digital system to a function setting...
- Page 10 Silver Direct Locomotive decoder bit 5 (6) = 1 Stopping with DC independent of the polarity 0,1 [32] (only if Bit 3 is deleted in CV29). bits 6-7 (7-8) Not used Factory CV Meaning Range setting Braking distance with activated constant braking 0-255 distance Slow approach with ABC...
- Page 11 Silver Direct Locomotive decoder 106 User Identification #2 0-255 113 Minimum PWM value, control for motor types 4 or 5 0-255 114 Change duty cycle for motor type 4 or 5 0-255 128 Decoder Software Version – read only...
- Page 12 Silver Direct Locomotive decoder...
-
Page 13: North American Warranty
Digital plus products, Lenz GmbH offers a very aggressive 10 year Limited Warranty. This warranty is not valid if the user has altered, intentionally misused the Digital Plus product, or removed the product's protection, for example the heat shrink from decoders and other devices.
