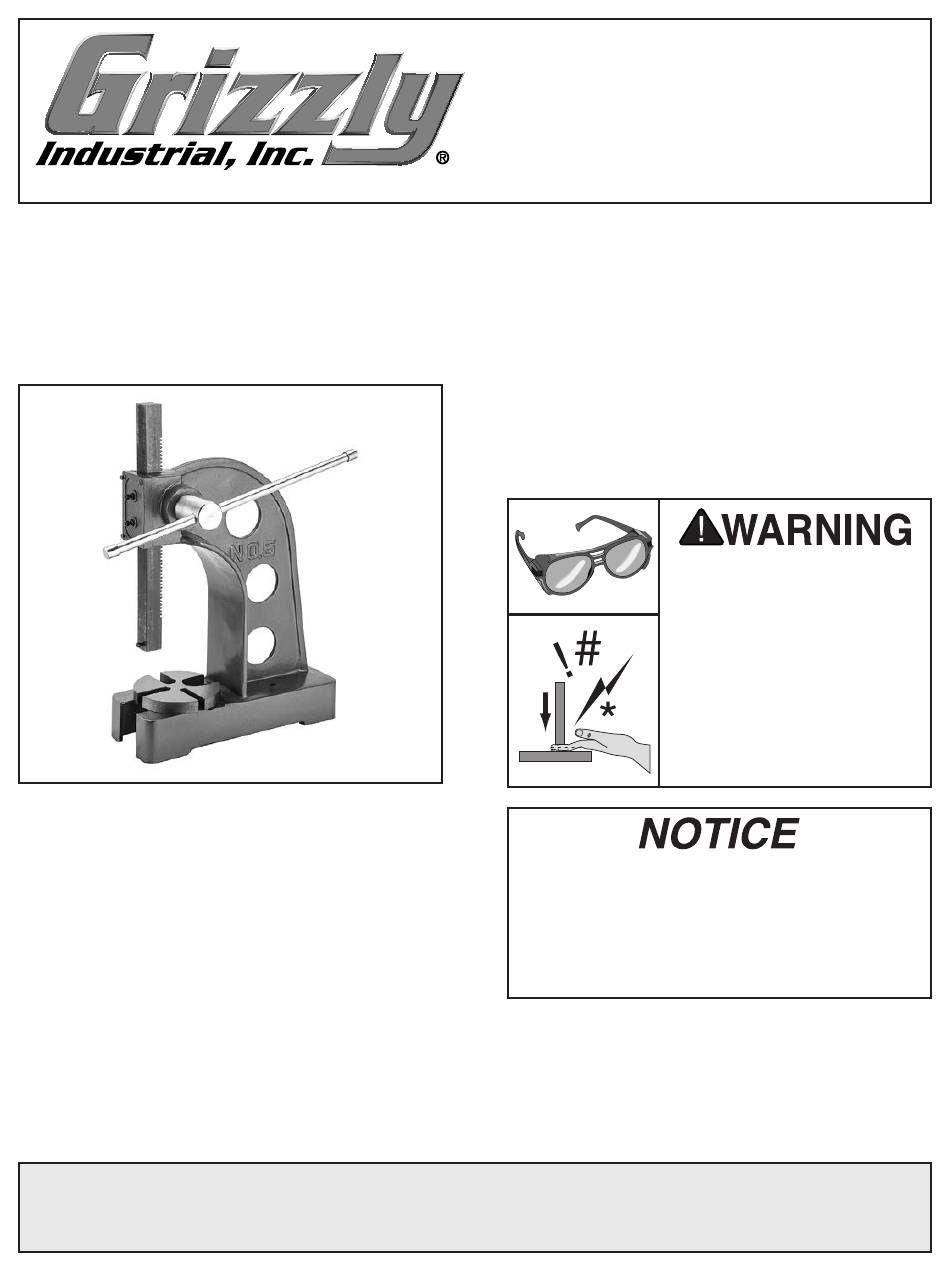

Introduction
The Model T27665 Arbor Press is designed to
perform press jobs, such as staking, riveting, and
installing/removing bearings. The ram accepts
dies, inserts, and other tooling for custom work.

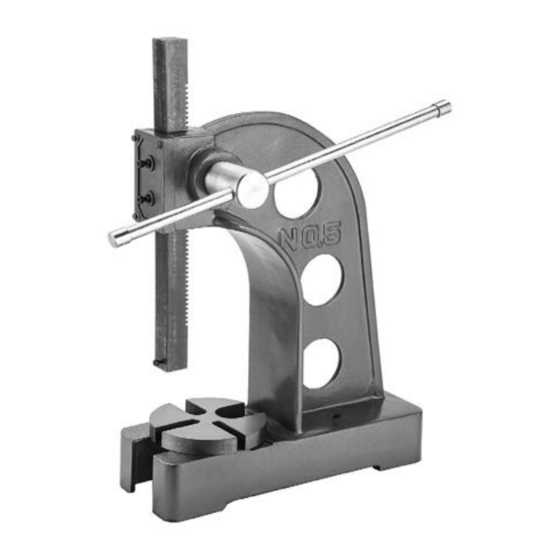

Figure 1. Model T27665 arbor press.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © APRIL, 2016 BY GRIZZLY INDUSTRIAL, INC.
#JH18087 PRINTED IN CHINA
MODEL T27665
ARBOR PRESS
INSTRUCTIONS
Specifications
Press Capacity ......................................... 5 Tons
Throat Depth................................................ 12
Maximum Workpiece Height ...................... 17
Ram Size ................................................3" x 2
Bore Size .........................................................
Body ......................................................Cast Iron
Ram ............................................................. Steel
Overall Size ............... 12
Weight .....................................................238 lbs.
Material under pressure
could fly apart and cause
impact
wear safety glasses when
using this press.
Keep hands and fingers
away from ram when apply-
ing downward pressure to
avoid pinching injuries.
This arbor press is designed to only be
used for small parts. Do not use this arbor
press for operations beyond its capacity or
modify it for increased leverage which can
lead to failure of arbor press and possible
injury.
5
" W x 23
" D x 30" H
1
5
4
8
injuries.
Always
V1.04.16
"
1
4
"
16
"
1
4
"
1
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the T27665 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grizzly T27665

  • Page 1 MODEL T27665 ARBOR PRESS INSTRUCTIONS For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Introduction Specifications Press Capacity ......... 5 Tons The Model T27665 Arbor Press is designed to Throat Depth..........12 ⁄ "...
  • Page 2 Coat rust preventative with a liberal amount equipment rated for weight of cleaner/degreaser (see Page 7 for offer- of the arbor press. ings from Grizzly), then let it soak for 5–10 minutes. Wipe off surfaces. If your cleaner/degreaser SUFFOCATION HAZARD!
  • Page 3 Figure 3. Location of mounting holes in base. Lag Screw Flat Washer Machine Base Workbench Figure 5. Example of a "Direct Mount" setup. T27665 (Mfd. 01/16)
  • Page 4 Use ram handle to move ram up and down a few times to check adjustment. If necessary, further adjust cap screws as in Step 2. When satisfied with amount of ram free- play, retighten jam nuts without moving cap screws. T27665 (Mfd. 01/16)
  • Page 5: Cleaning & Protecting

    Re-install ram and front plate. through the entire path of travel a few times to distribute the oil. When finished, wipe away the Use ram handle to move ram up and down excess oil. several times to distribute grease. T27665 (Mfd. 01/16)
  • Page 6 PT27665020 TOUCH-UP PAINT, GRIZZLY GREEN We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. T27665 (Mfd. 01/16)
  • Page 7 Installing unapproved accessories may cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly. NOTICE Refer to our website or latest catalog for additional recommended accessories.
