Grizzly T27978 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Always wear safety glasses
during
serious personal injury.
When servicing, always dis-
connect tool from air to pre-
vent unexpected operation.
Exceeding this PSI may
result in injury/tool damage.

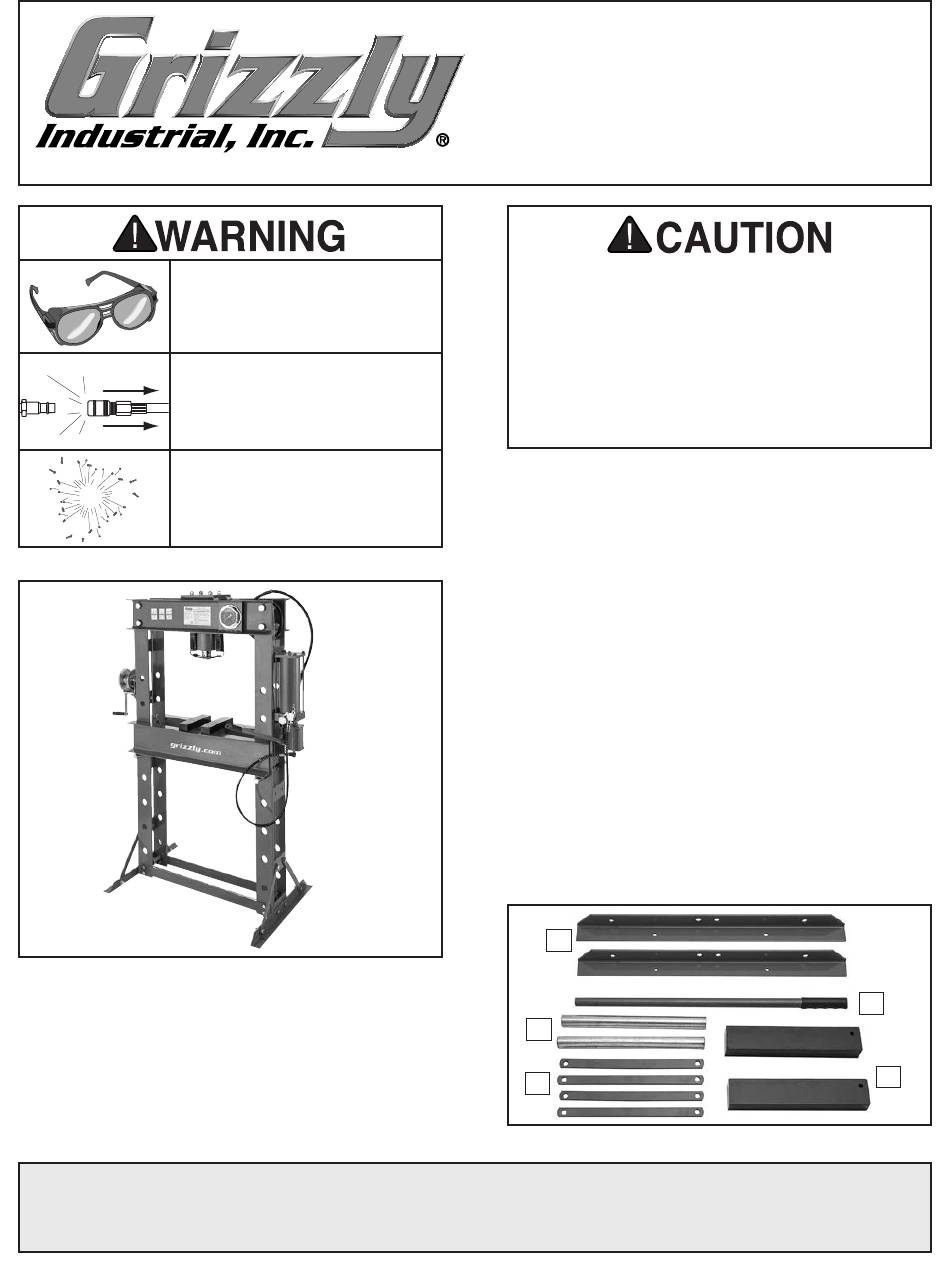

Figure 1. Model T27978.
Needed For Setup
Description
Additional People ................................................. 2
Safety Glasses .............................................. 1 Ea.
Open-End Wrenches 13, 16, 18, 19mm ...... 1 Ea.
ISO VG32 Hydraulic Oil ........................2.5 Quarts
COPYRIGHT © JUNE, 2017 BY GRIZZLY INDUSTRIAL, INC. REVISED DECEMBER, 2018 (JL)
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
EYE INJURY HAZARD!
use to prevent
INJURY HAZARD!
125 PSI
MAX AIR PRESSURE!
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#JH18676 PRINTED IN CHINA
MODEL T27978
50-TON HYDRAULIC PRESS
Workpieces positioned off-center below
hydraulic ram can be ejected unexpectedly
from force being applied unevenly, striking
operator or bystanders with great force.
Always ensure workpiece is positioned
so force is evenly distributed. STOP and
release compression if workpiece shifts
during pressing.
Inventory
Open shipping crate and remove inventory items
included inside (see Figure 2).
Description (Figure 2)
A. Hydraulic Press Assembly (not shown) ...... 1
B. Base Supports ............................................ 2
C. Pump Handle .............................................. 1
D. Support Rods ............................................. 2
E. Press Blocks ............................................... 2
F.
Angle Braces .............................................. 4
G. Hardware Bag (not shown)
• Hex Bolts M10-1.5 x 25 ....................... 12
• Cap Screws M8-1.25 x 30 .................... 4
• Lock Washers 8mm ............................ 12
• Flat Washers 8mm ............................. 12
• Hex Nuts M10-1.5 ............................... 12
B
D
Qty
F
INSTRUCTIONS
Figure 2. Inventory items.
Qty
C
E
