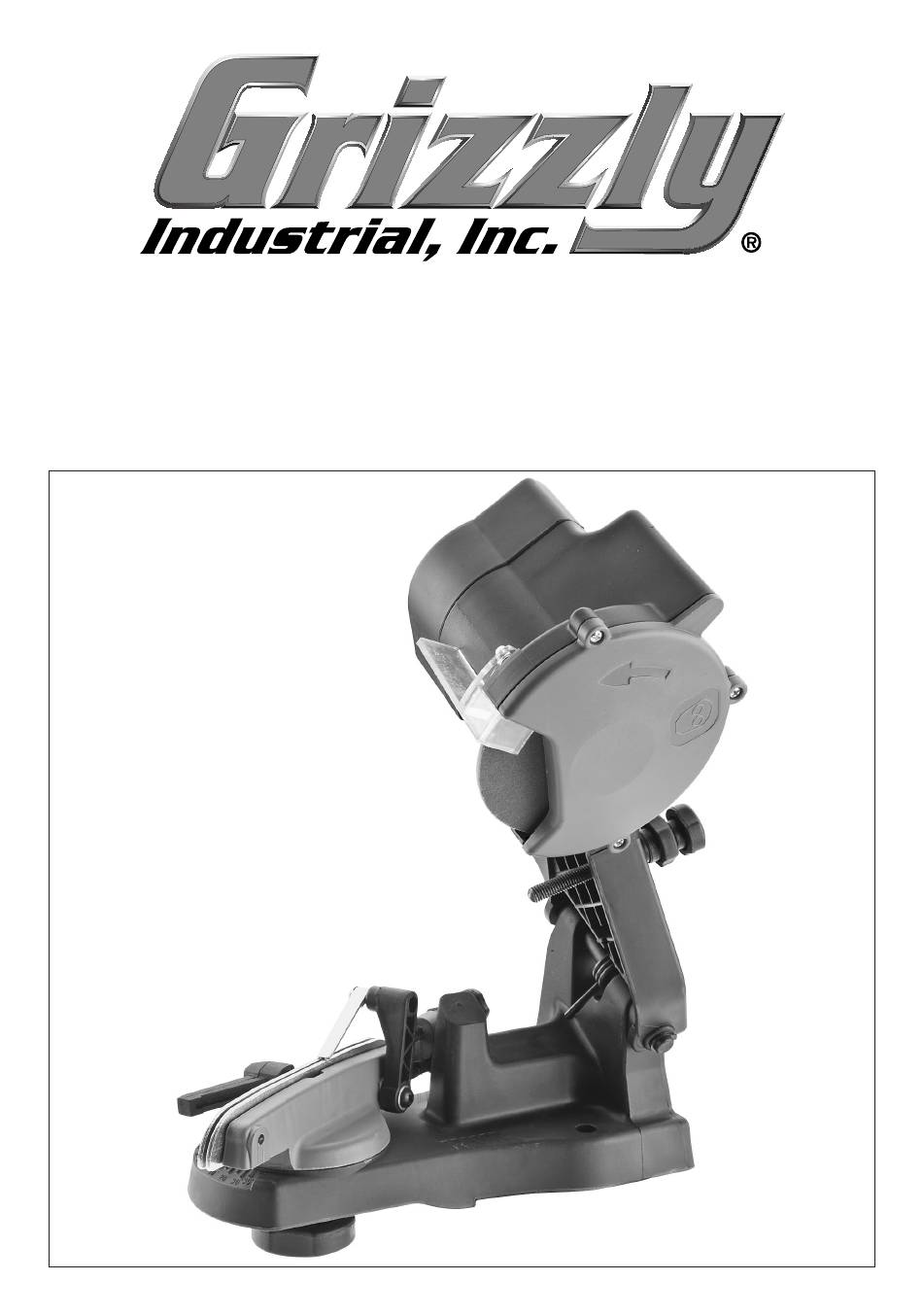

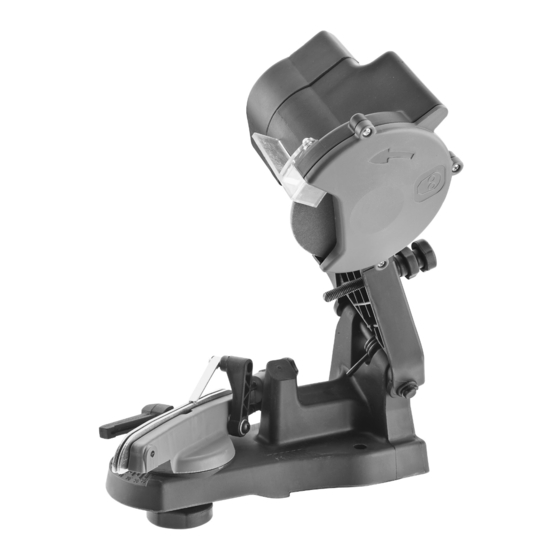

- Page 1 MODEL T23107 CHAIN SAW SHARPENER OWNER'S MANuAL Get other manuals https://www.bkmanuals.com...
- Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
-
Page 3: Specifications
Specifications Motor 120V,60Hz Rpm’s 4200 Vise Capacity 0.80"to 0.50" Table/Vise Angles 35 Degrees Right to Left Arbor Diameter 7/8" Wheel Dimensions 4-1/4"Dia. X 1/8" Thick Overall Dimensions 9"W x 10"L x 12-1/8"H Weight 4.85Lbs Save This manual You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. - Page 4 9.Maintain tools with care. Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and if damaged, have them repaired by an authorized technician. The handles must be kept clean, dry, and free from oil and grease at all times. 10.
-
Page 5: Additional Safety Warnings
Additional Safety Warnings Grinding Wheel Warnings 1.Do not use a grinding wheel if it is chipped, cracked, or worn. You can check if the wheel has cracks not visible to the human eye by hanging it up by the central hole and tapping it with a non-metal object (ie: screwdriver handle). - Page 6 Page 4 Warning ! Always unplug the unit before changing grinding wheels, or when making any adjustments to the sharpener. Mounting a Grinding Wheel Refer to the assembly drawing on page 10 and FIGURE 3 and FIGURE 4 below. Raise the Top Housing (#4) and lock it in the up position by tightening the Lock Stop (# 6) Remove the two screws holding the Grinding Wheel Cover (#11), Set the cover aside.
-
Page 7: Operation
Operation Warning ! Always unplug the unit while adjusting chain to be sharpened. Refer to the assembly drawing on page 10 and the various photographs. Note: Raise the Top Housing (#4) while adjusting the chain. 1.Clean the chain before sharpening . Wash it with o non-flammable solvent. Don’t not use Gasoline. Dry the chain. - Page 8 4.See FIGURES 5&6. Loosen the LOCK Wheel (#18) to allow entire housing to turn. Rotate the housing to match the degree of angle you need on the Angle Gauge. Chains come in various sizes with varying degrees of sharpening angles. Check with your chain manufacturer’s manual to determine what degree you need to sharpen at.
- Page 9 8.Lock the chain in the Sliding Guides (#31)by turning the Handle(#34). See FIGURE 8.The Handle(#34) should be situated so that you can easily release and tighten it . You will need to release it each time you move to the next link, and tighten it to sharpen each link.
-
Page 10: Maintenance
5.After you fininshed sharpening all of the teeth set for your current angle, turn off the machine by pushing the red button on the Switch Plate(#5) and unplug the unit. 6.Loosen the Lock Wheel(#18)and reset the angle so that the first tooth that hasn’t been sharpened is positioned against the Chain Stop (#23) and locked in as explained on page 6. -
Page 11: Parts List
Parts List Parts No. Description Qty. Parts No. Description Screw Washer Motor Cover Bearing Power Cord Swing Arm Top Housing Chain Stop Switch Plate Tension Spring Lock Stop Retaining Ring Grinding Wheel Base Lower Knob Grinding Wheel Screw Grinder Lock Cap Bolt Screw Chain Saw Frame... - Page 12 Get other manuals https://www.bkmanuals.com...
-
Page 13: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. - Page 14 Buy Direct and Save with Grizzly – Trusted, Proven and a Great Value! ® ~Since 1983~ Buy Direct and Save with Grizzly – Trusted, Proven and a Great Value! ® Visit Our Website Today For ~Since 1983~ Current Specials! Visit Our Website Today For...
