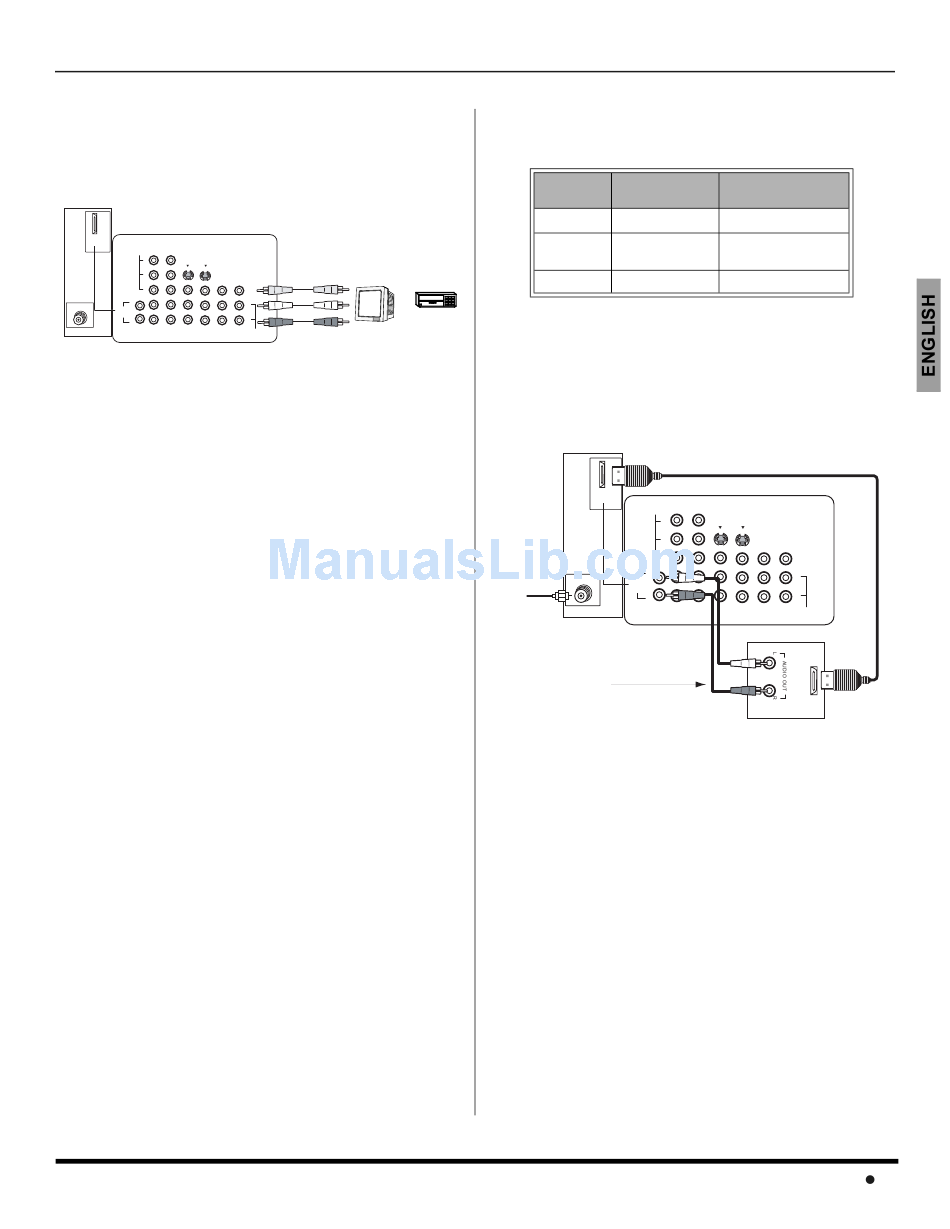

Program Out Connection (PROG OUT)
To use the television audio and video with optional equipment,
connect the PROG OUT and TO AUDIO AMP connections on the
back of the television.
Note:
If the Main Picture signal is Component Video Input or
HDMI, no Program out signal will be available.
TERMINALS ON BACK OF TELEVISION
HDMI
AV IN
VIDEO
Y
P
B
S-VIDEO
VIDEO
P
R
L
ANT
AUDIO
IN
R
1
2
INPUT
INPUT
INPUT
PROG
COMPONENT
1
2
3
OUT
VIDEO INPUT
CABLES NOT INCLUDED
Note:
Rear A/V jacks diagram may vary, depending on model.
Please refer to the FEATURE CHART on page 4 for your
model's capabilities.
Procedure
Connect optional equipment to PROG OUT and TO
AUDIO AMP L/R terminals.
PROG OUT terminal display is the same as on-screen
display.
See optional equipment manual for further instructions
for recording and monitoring.
HDMI (High Definition Multimedia Interface)
input connection
About HDMI
HDMI is the first all digital consumer electronics A/V
interface that supports several uncompressed standards,
enhanced and high definition video formats as well as
existing multi-channel audio format. One jack supports both
video and audio information. The HDMI/HDCP
be connected to an EIA/CEA 861
electronic device, such as a set top box or DVD player
equipped with an HDMI or DVI output connection. By
inputting a High-bandwidth Digital Content Protection
(HDCP) high definition picture source to the HDMI terminal
of this TV, high definition pictures can be displayed on the
screen in their digital form. The HDMI input terminal is not
intended to be used with personal computers. This TV is
compatible with 1080i, 480p and 480i formats. Select the
output of the connecting device to match that of the TV.
Notes:
1.
HDMI/HDCP = High Definition Multimedia Interface /
High-Bandwidth Digital Copy Protection.
2.
EIA/CEA-861 Profiles compliance covers profiles for
transmission of uncompressed digital video including
high bandwidth digital content protection.
MONITOR
VCR
OR
L
R
TO AUDIO
AMP
1
input can
2
compliant consumer
O
PTIONAL
Compatible formats
This TV is compatible with the following formats. Please
set the connecting device to the following format.
Video signal
Format
No. of dots
1080i
1920 x 1080i
720 x 480p
480p
640 x 480p
480i
720 x 480i
Audio signal
When digital audio is included in the HDMI connection,
the compatible sampling frequencies are 48 KHz /
44.1KHz / 32 KHz.
Connection diagram
Follow the diagram below to connect the TV to a set top box or a
DVD player.
HDMI
AV IN
VIDEO
Y
P
B
P
R
L
ANT
AUDIO
Incoming
IN
Cable
R
CABLES NOT INCLUDED
Note: Use analog audio when no digital
audio is available.
* The connector on the TV is HDMI Type A connector.
Procedure
Connect the HDMI output from the set top box or a DVD
player to the HDMI input on the back of the TV.
Press TV/VIDEO button on the remote control to select
HDMI input. The interface on the TV is an HDMI Type A
connector.
If the external device has a DVI output only, use a DVI to
HDMI adaptor cable*
the TV. Also, connect the Audio Out signal from the
external device (set top box or DVD player) to the Audio
4
In*
jacks below the HDMI input.
If you cannot display the picture because your Digital Set
Top Box does not have a Digital Out terminal setting, use
the Component Video Input (or the S-Video Input or
Video Input). In this case, the picture will be displayed as
an analog signal.
Notes:
*3. HDMI-DVI conversion cable (TY-SCH03DH) available
on Panasonic Website: www.panasonic.com (only
for USA customers).
*4. Please refer to page 19 for Audio setting detail.
E
C
QUIPMENT
ONNECTIONS
Vertical scanning
frequency (Hz)
59.94 / 60
59.94 / 60
59.94 / 60
59.94 / 60
TERMINALS ON BACK OF TELEVISION
S-VIDEO
VIDEO
L
R
1
2
INPUT
INPUT
INPUT
PROG
COMPONENT
TO AUDIO
OUT
1
2
3
VIDEO INPUT
AMP
HDMI
OUT
EXTERNAL DIGITAL
COMPONENT
3
to connect to the HDMI jack on
